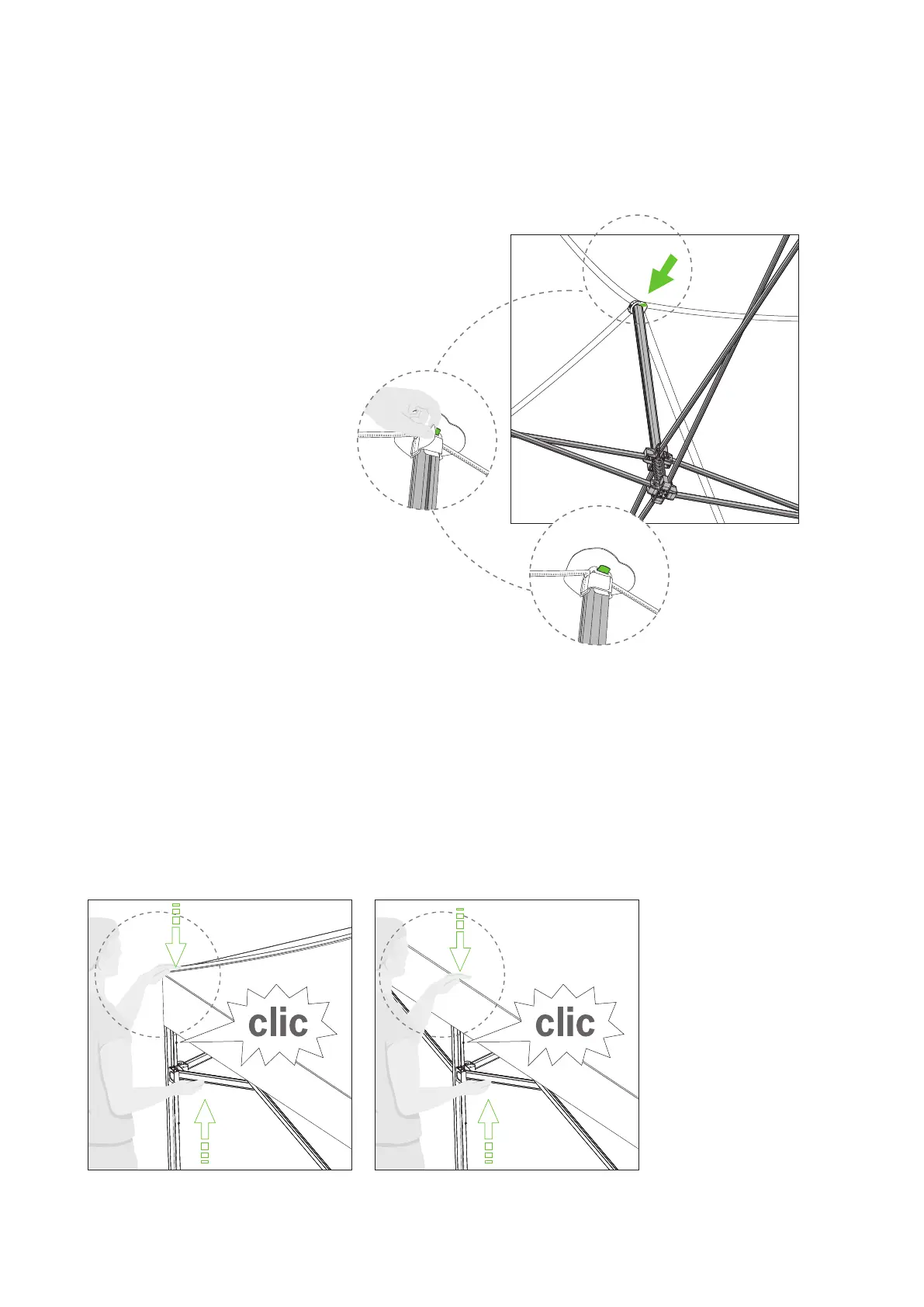

Step 7:
Engaging the roof strut: Push the plastic gliders out beyond
the upper push button springs (metal bolts) of the corner legs.
Important: Press down using your free hand from above.
For folding frames with centre legs (6x3): Engage
the roof strut also with the centre legs. Fix the velcro strip
attached to the roof to the centre leg. The outer fabric eyelet
and the inner reinforcing ap should be centred on the edge
of the upper plastic connector.
Step 6:
Attaching the inner fabric roof gable: Push the recess/slot on
the fabric sleeve through the tongue on the prole cover.
Tighten the sleeve rmly using the velcro strap.
6
ASSEMBLY
