Examples for DIAMANT SG 2
WARNING!
Personal injury is possi ble due to breakage of
the trailer coupling.
The coupling could b reak if the bicycle carrier
is fitted to a coupling made of too soft a
material.
• Fit the bicycle carrier only to a coupling
made of steel S t 52, grey cast iron GG52 or
higher quality.
• Never fit the bicycle carrier to a coupling
made of aluminium, other light metals or
plastic.
Fit the bicycle carrier only to trailer couplings with the
following properties:
Material:...............min. steel St52 or grey cast iron GG52
D-value:................................ . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . .> 7,6 kN
Note the instructions of t he coupling manufacture.
Coupling requirementsScope of delivery
Technical data
The max.carrying capacity of the bicycle carrier and the
permissible bearing load of the trailer coupling must not be
exceeded.
The bicycle carrier and load must not exceed the
permissible overall weight, or the permissible axle load of
the vehicle.

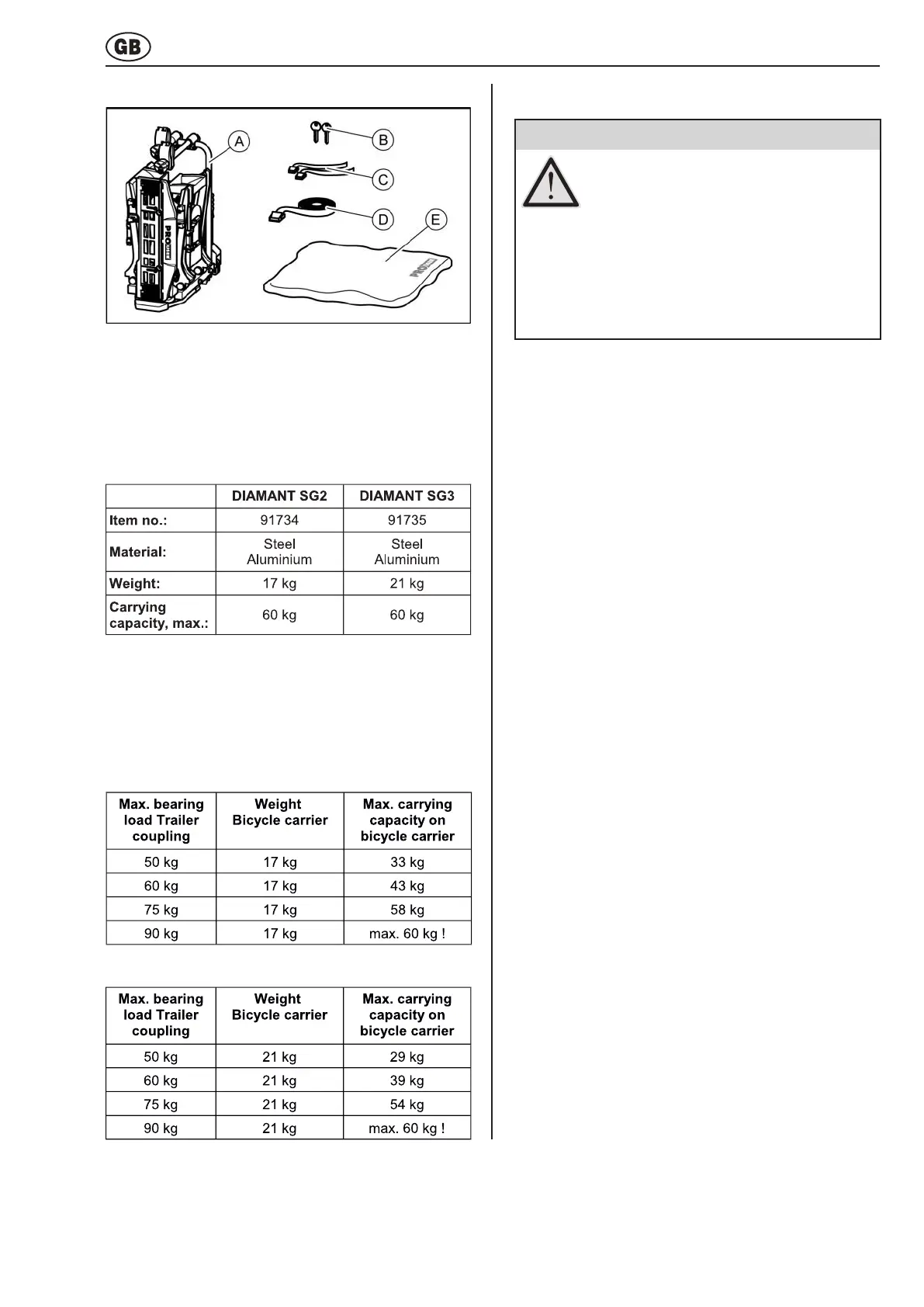

Scope of delivery / Technical data / Coupling requirements
A = Bicycle carrier
B = 2 keys
C = 2 safety straps for front wheels, DIAMANT SG 2
(3 safety straps for front wheels, DIAMANT SG3)
D = 1 Safety strap for bicycle frame
E = Transport bag
Examples for DIAMANT SG 3
