Tsunami QB-8100 Series (100 Mbps/5 Mbps Models) Installation and Management Guide 91

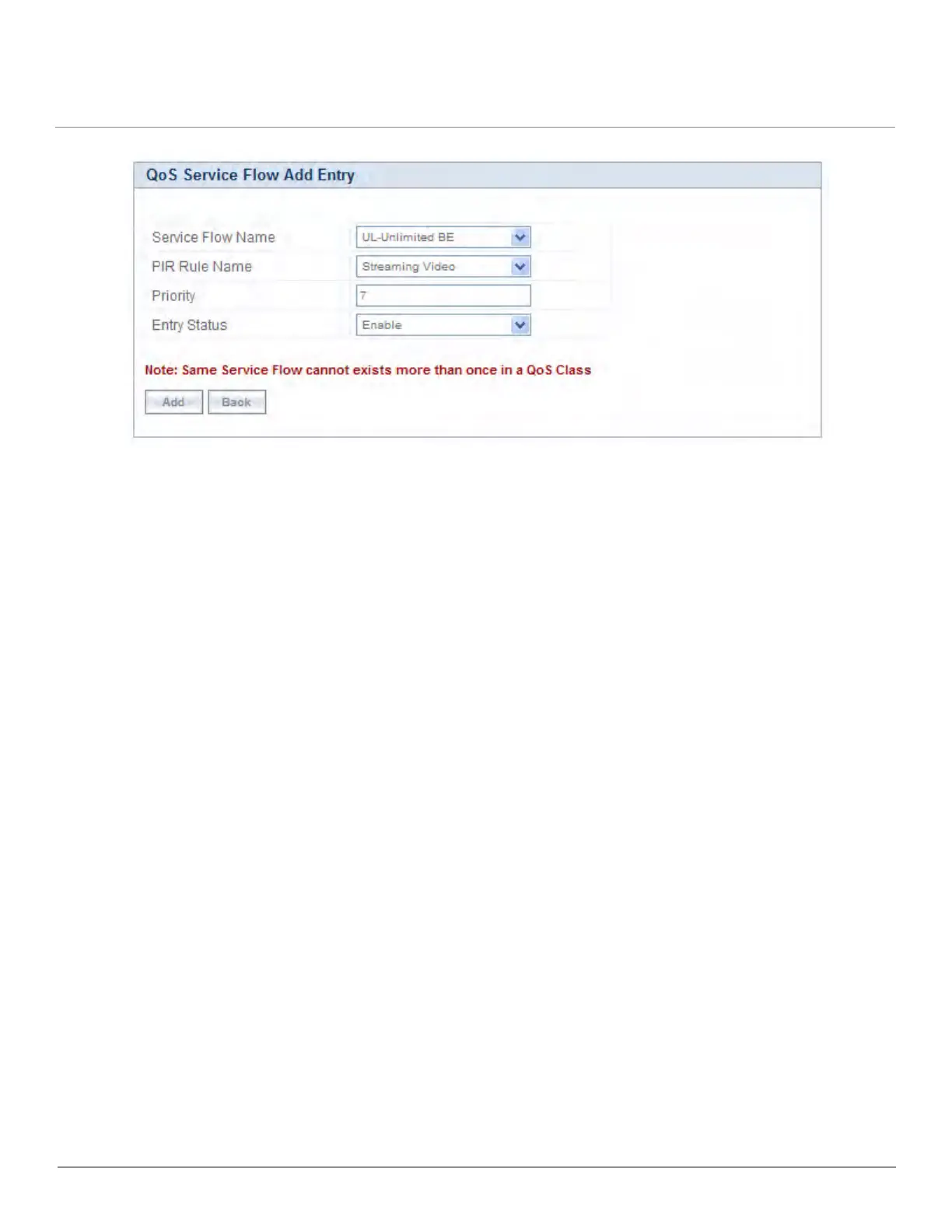

Figure 4-37 QoS Class Service Flow Add Entry
3. Specify the Service Flow Name, PIR Rule Name, Priority and Entry Status and click Add to add a new entry.
Adding PIR in QoS Class
1. Click on the corresponding Details provided in the Service Flow of a particular QoS Class. Maximum 8 PIR rules can be
associated per SFC of an QoS Class. At least there should be one PIR per SFC of an QoS Class. The following screen
will be displayed to associate the new PIR entry inside an SFC of an QoS Class.
