Connection
ENGLISH

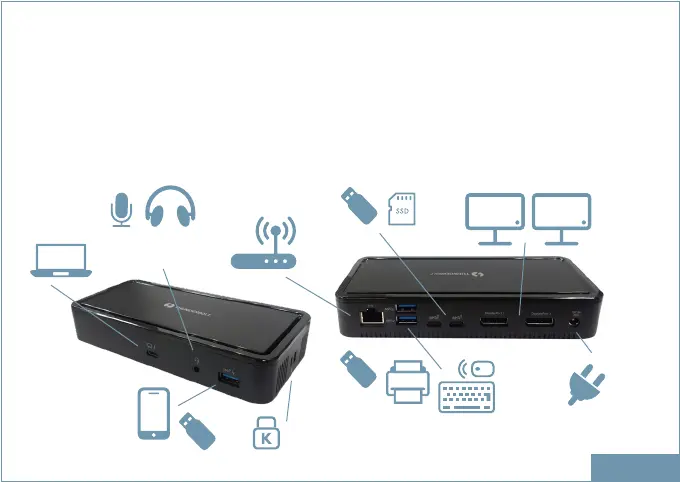

To connect the USB peripherals, Ethernet, speaker and microphone, follow the
illustrations below to connect the corresponding connectors.
DP Monitor x 2
Single 8K or Dual 4K
USB-A3.2 Gen 1 devices
USB-C3.2 Gen 2
USB-A3.2 Gen 2
Support BC1.2
LAN
Laptop
Headset and
Microphone
Power in
K-Lock
