9.5. Starting the software nccad7.5
After the program was successfully installed, it can be started just as you are used to
from other applications on your computer. Simply select the "Start" button on the screen
with your cursor and select the desired file in the program title bar. It's even easier if you
simply click the program icon.
9.6. Parameter settings
The specific machine data (travel paths, limit values, working conditions, equipment,
etc.) are stored in the parameter files. These can be recognised by the ending "*.ini" in
the Windows Explorer.
Caution!
The values stored there are especially adapted to operation with the PD 400 CNC and
should not be changed without experience and knowledge of the program.
No changes may be made here especially before commissioning! False entries can lead
to system errors and dangerous operating states!
9.7. The status display at the CNC control MCS

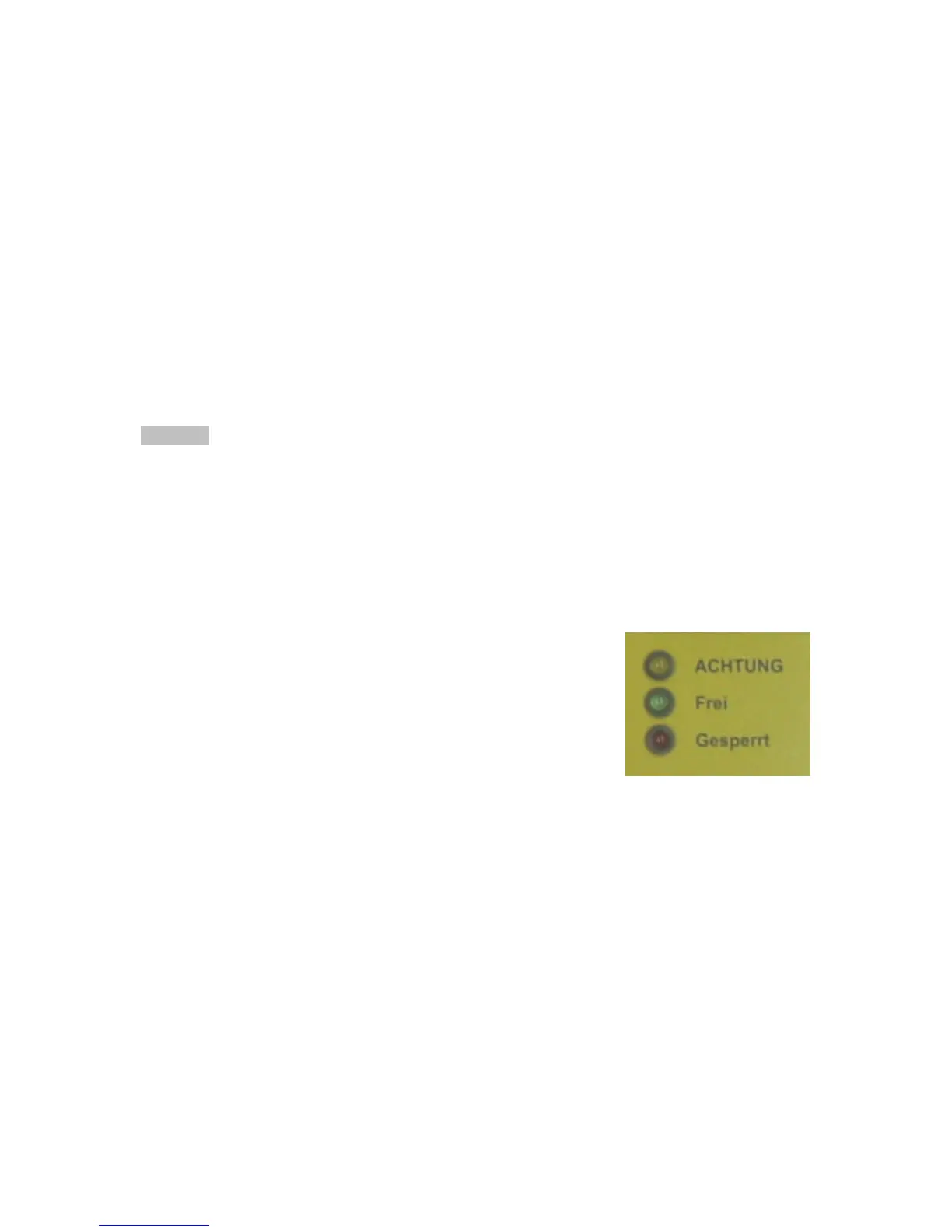

There are three different coloured lights on the panel of the
CNC control; see picture. They indicate the operating status of
the CNC lathe.
• Yellow: Caution (in action) – command execution
running, even if the axis or spindle are not currently moving. Do not reach into the
CNC machine; it is possible that the command "pause" is running down and
machining can continue at any time.
• Green: Free (to receive commands) – Communications with the PC is
possible, commands can be received.
• Red: Locked (or error) – The movement and command receipt of the CNC
machine are locked. This could be the case if the EMERGENCY stop was
activated or if an error occurred in the system (e.g.: communications error, PC no
longer completely functional).
• All: After the CNC machine is switched on as a lamp test for a period of
approx. 1 second.
