PT W85033 - Assembly Instructions; Attaching Seat Bracket; Installing Casters; Mounting Pneumatic Cylinder

3
1. Place the Seat Bracket (2) on the underside of the Padded Seat (1). Align the holes in
the Seat Bracket with the 4 holes in the center of the Padded Seat and hand tighten with
the 4 machine screws (3). Use a #2 phillips screwdriver for nal tightening.
2. Hand thread the 5 Casters (6) onto Base Frame (7). Tighten with a 14 mm open end or
adjustable wrench.
3. Place the Base Cover (5) over the center of the Base Frame (7).
4. Insert the Pneumatic Cylinder (4) into the center opening in the Base Frame (7), then
place the Seat assembly from step 1 onto the thinner end of the Pneumatic Cylinder.
Press down to ensure a tight and secure t.

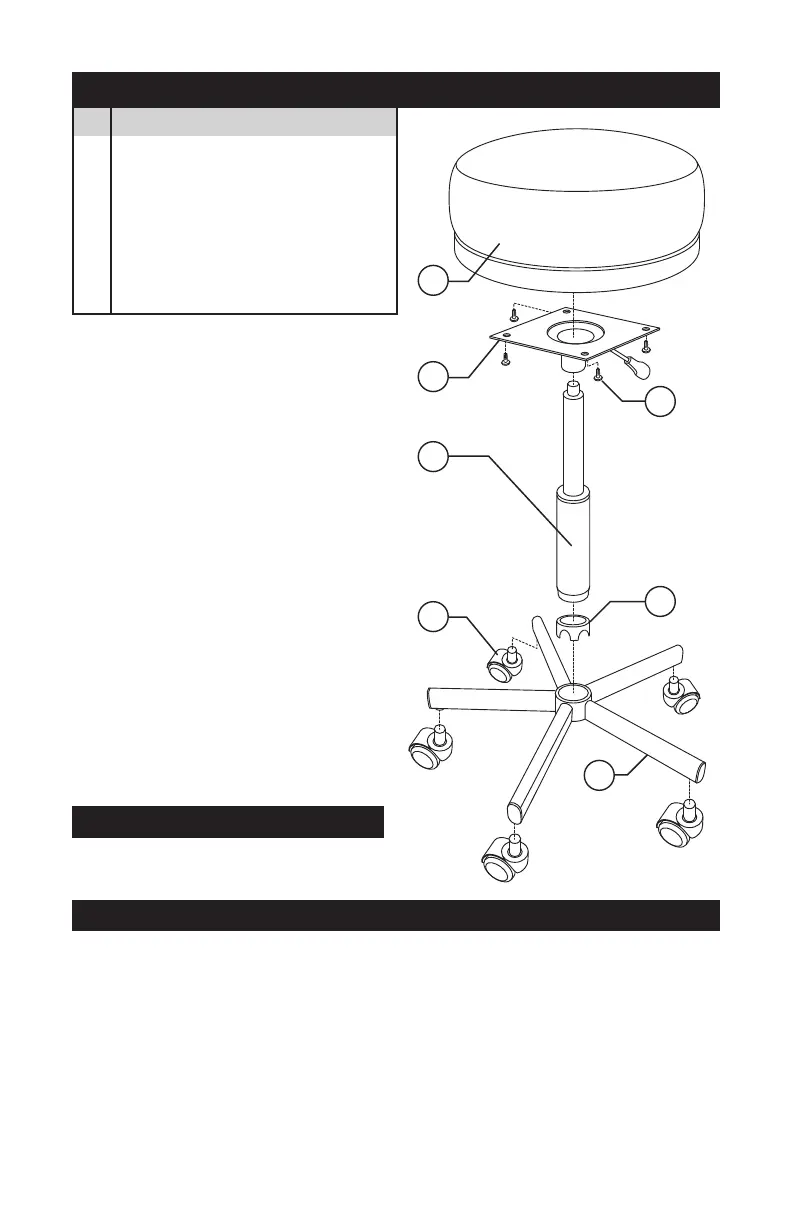

CONTENTS
1 Padded Seat ....................... 1
2 Seat Bracket/Handle ........... 1
3 Machine Screws ................. 4
4 Pneumatic Cylinder ............. 1
5 Base Cover ......................... 1
6 Casters ................................ 5
7 Base Frame ......................... 1
No. Description Qty.
1
2
3
4
5
6
7
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED
1. 14 mm open end or adjustable wrench
2. #2 phillips screwdriver
