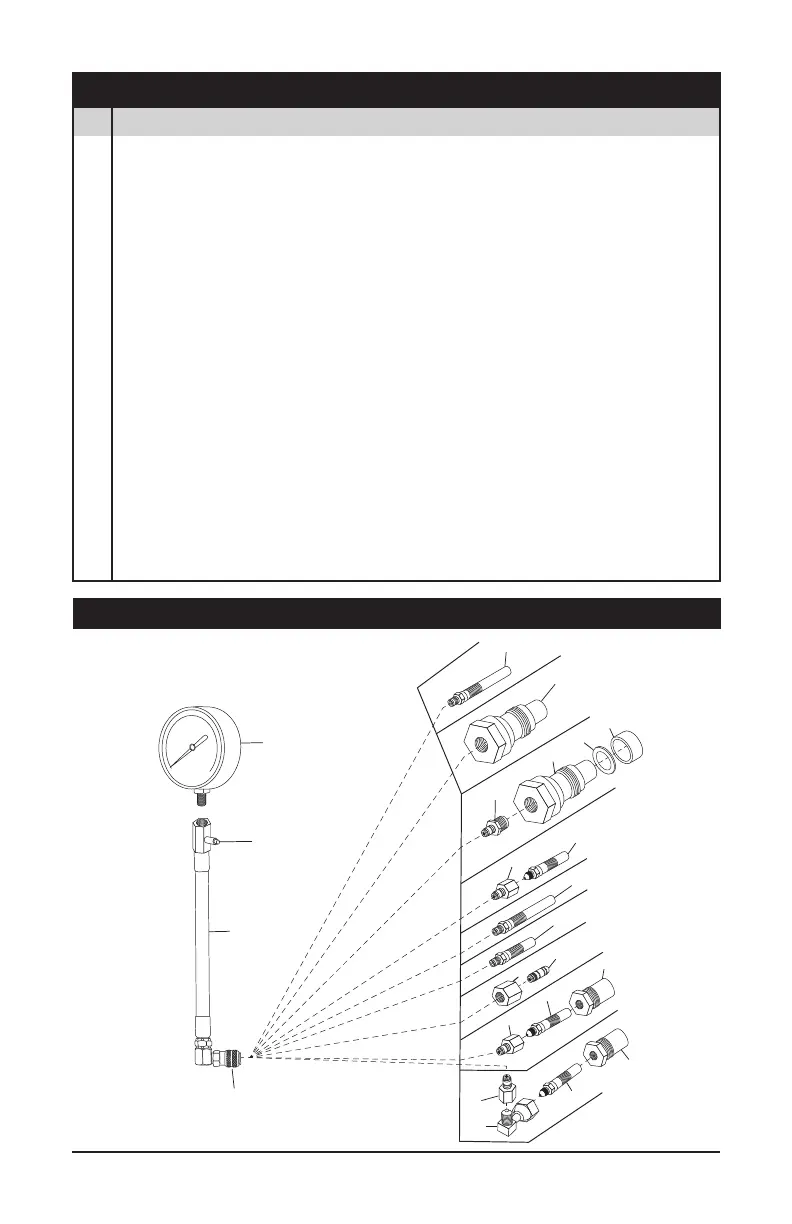

PT W89731 - Assembly Instructions; Component Identification and Diagram

A
B
C
D
E
F
G
H
I
17
3
4
16
12
18
11
10
6
5
9
8
13
14
7
6
5
5
15
6
7
1
2
3
CONTENTS
1 Pressure Gauge .............................................................................1
2 Air Release Button .........................................................................1
3 Rubber Hose .................................................................................. 1
4 1/8 in. NPT Quick Coupler .............................................................1
5 7/16 in.-20 (F) Quick Coupler ............................................................3
6 M12 x 1.25 (M)-7/16 in.-20 (M) Adapter ............................................3
7 M12 x 1.25 (F)-M18 x 1.5 (M) Adapter ...........................................2
8 M10 x 1.25 Short Adapter . ...........................................................1
9 M10 x 1.25 Long Adapter .. ...........................................................1
10 ZG 1/8 in. (M) Male Quick Coupler ................................................1
11 ZG 1/8 in. (F)-M24 x 2 (M) Adapter ................................................1
12 Adapter Sleeve ..............................................................................1
13 Quick Connect with Ball Tip ..........................................................1
14 1/2 in.-19 Lock Nut ........................................................................1
15 7/16 in.-20 (M)-7/16 in. x 20 (F) 90° Connector .............................1
16 ZG 1/8 in. (M)-M24 x 1.5 (M) Adapter ............................................1
17 M10 x 1 (M) Adapter ......................................................................1
18 Copper Washer ..............................................................................2
No. Description Qty.
ASSEMBLY INSTRUCTIONS
NOTE: Letters designate adapter assemblies.
