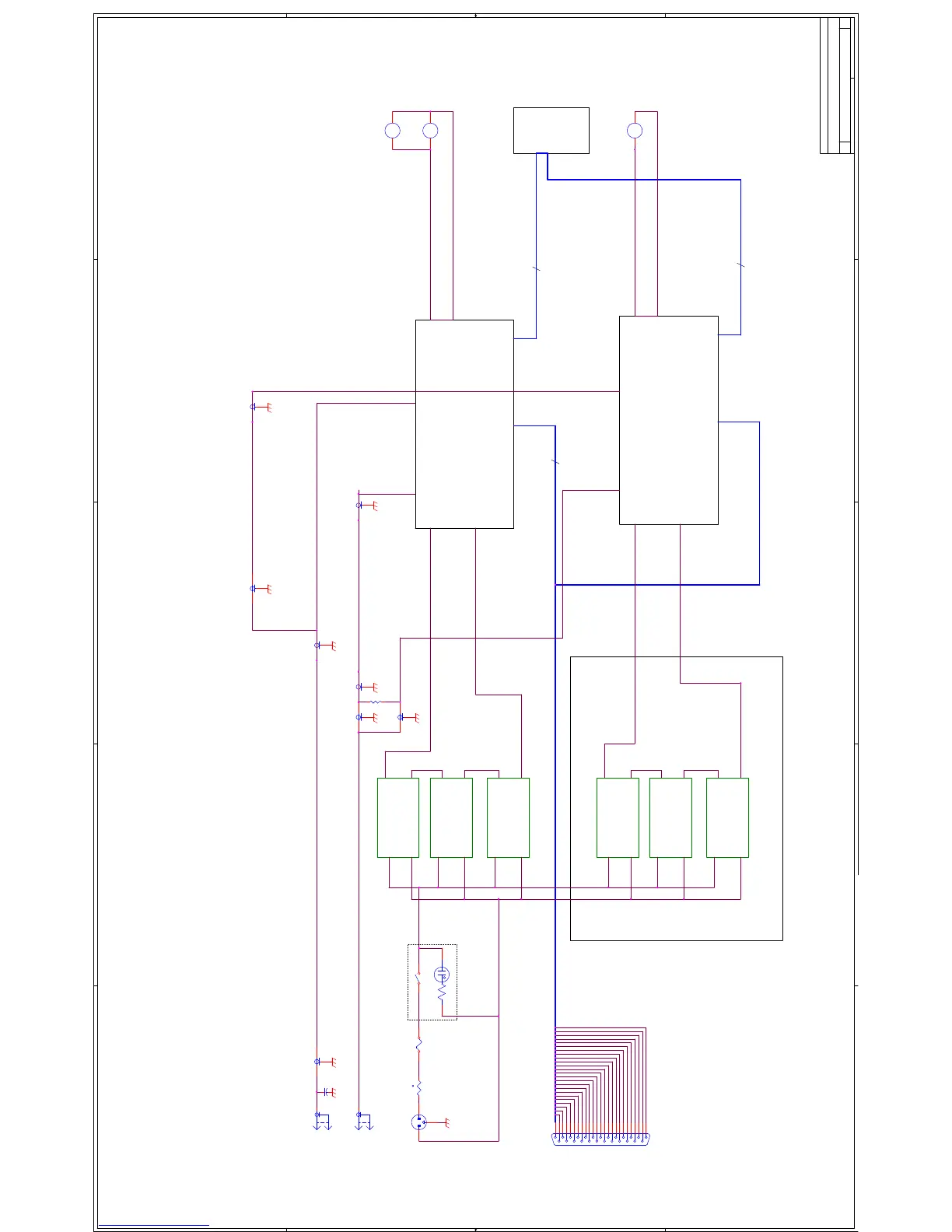

Ptek FM150 - Page 13

5 5
4 4
3 3
2 2
1 1
D D C C B B A A
LIVE
NEUTRAL
POWE AMPLIFIER
+VE -VE
14
25
FAN SUPPLY FAN SUPPLY
RF IN RF OUT
Used on FM1000 and 1kW moduels only
POWE AMPLIFIER
+VE -VE
FAN SUPPLY FAN SUPPLY
LED BOARD
14
RF INPUT
RF INPUTRF OUTPUT
RF OUTPUT 1/4 Wave
1/4 Wave
<Doc> <RevCode> <Title>
D
11Wednesday, March 12, 2008
Title Size Document Number Rev Date: Sheet
of
PSU_2 SP-320-15 power supply 15V 20A PSU_3 SP-320-15 power supply 15V 20A PSU_1 SP-320-15 power supply 15V 20A PSU_4 SP-320-15 power supply 15V 20A PSU_6 SP-320-15 power supply 15V 20A PSU_5 SP-320-15 power supply 15V 20A
W1 75 ohms
Neon
W1 75 ohms
F1 FAN 24V F1 FAN 24V
W1 50 ohms
F3 FAN 24V
W1 50 ohms
F2 FUSE
R1 100
SW1 OFF/OPERATE
1 2
W1 50 ohms
t
RT1
SURGE LIMITER
1 2
P1
CONNECTOR DB25
13 25 12 24 11 23 10 22 9 21 8 20 7 19 6 18 5 17 4 16 3 15 2 14 1
J1 AC IN
1 2
3
C1 24p
