WIRING DIAGRAMS
37

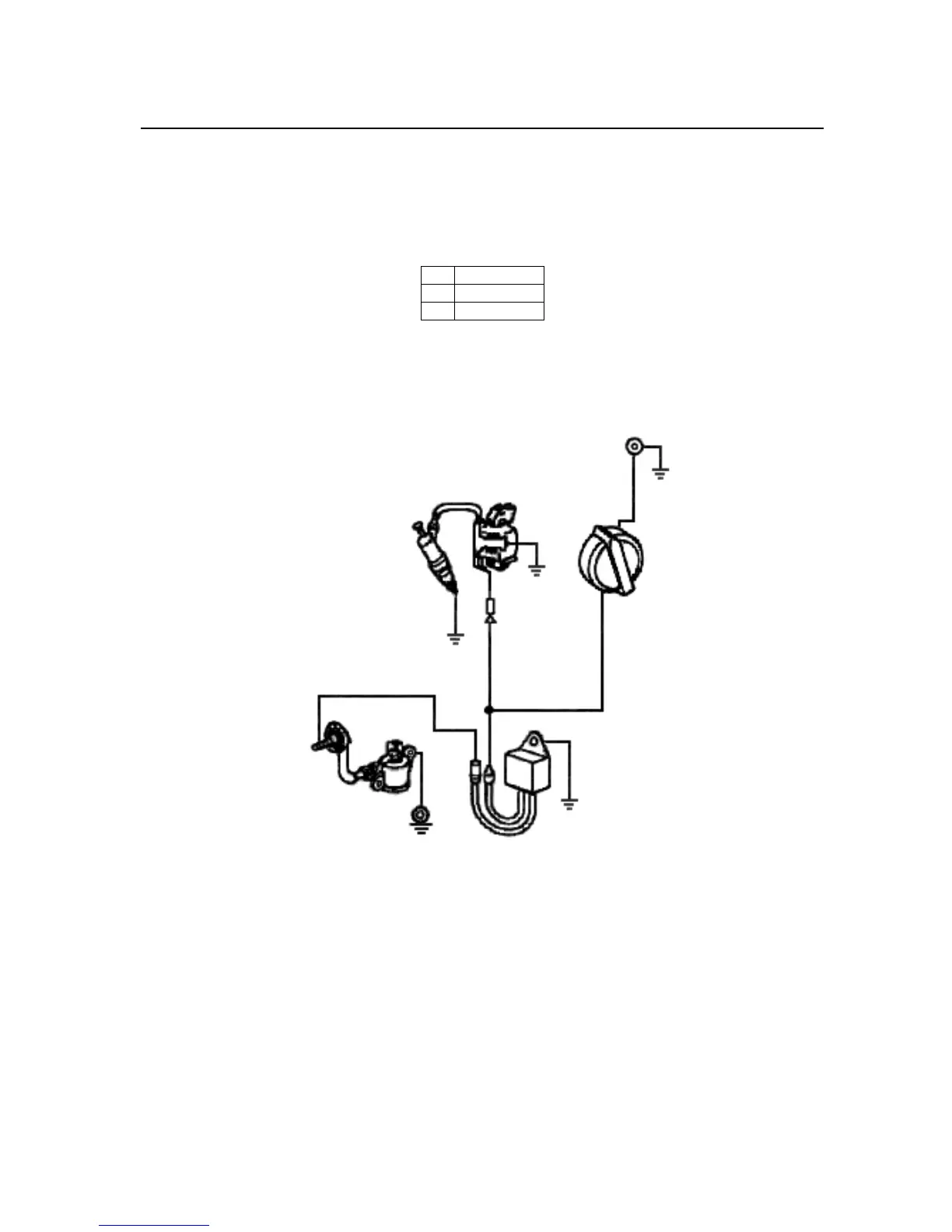

Engine Type with Oil Alert and Without Electric Starting
Bl BLACK
Y YELLOW
GGREEN
TRANSISTORIZED
IGNITION UNIT
SPARK
PLUG
OIL ALERT UNIT
OIL LEVEL
SWITCH
ENGINE
SWITCH
Bl
Y
Y
Y
Bl
