L=159, W= 98, H=42 [±2mm]
Protection class electric shock protection
I (first) - requires a protective conductor
I/O PCB: 0,5 – 2,5 mm
2
(AWG 26 – 12)
output of optical signalization: 4 pins micromatch socket
Battery wires 6,3F – 45cm, ML062 angle muff (hole
5,2mm)
Electrical strength of insulation:
- between input (network) circuit and output circuits
of power-supply
- between input circuit and protection circuit
- between output circuit and protection circuit
2500 V AC min.
1500 V AC min.
500 V AC min.
Insulation resistance:
- between input circuit and output or protection
circuit
Vibrations and impulse waves during transport
according to PN-83/T-42106
1.3. Description of terminals.

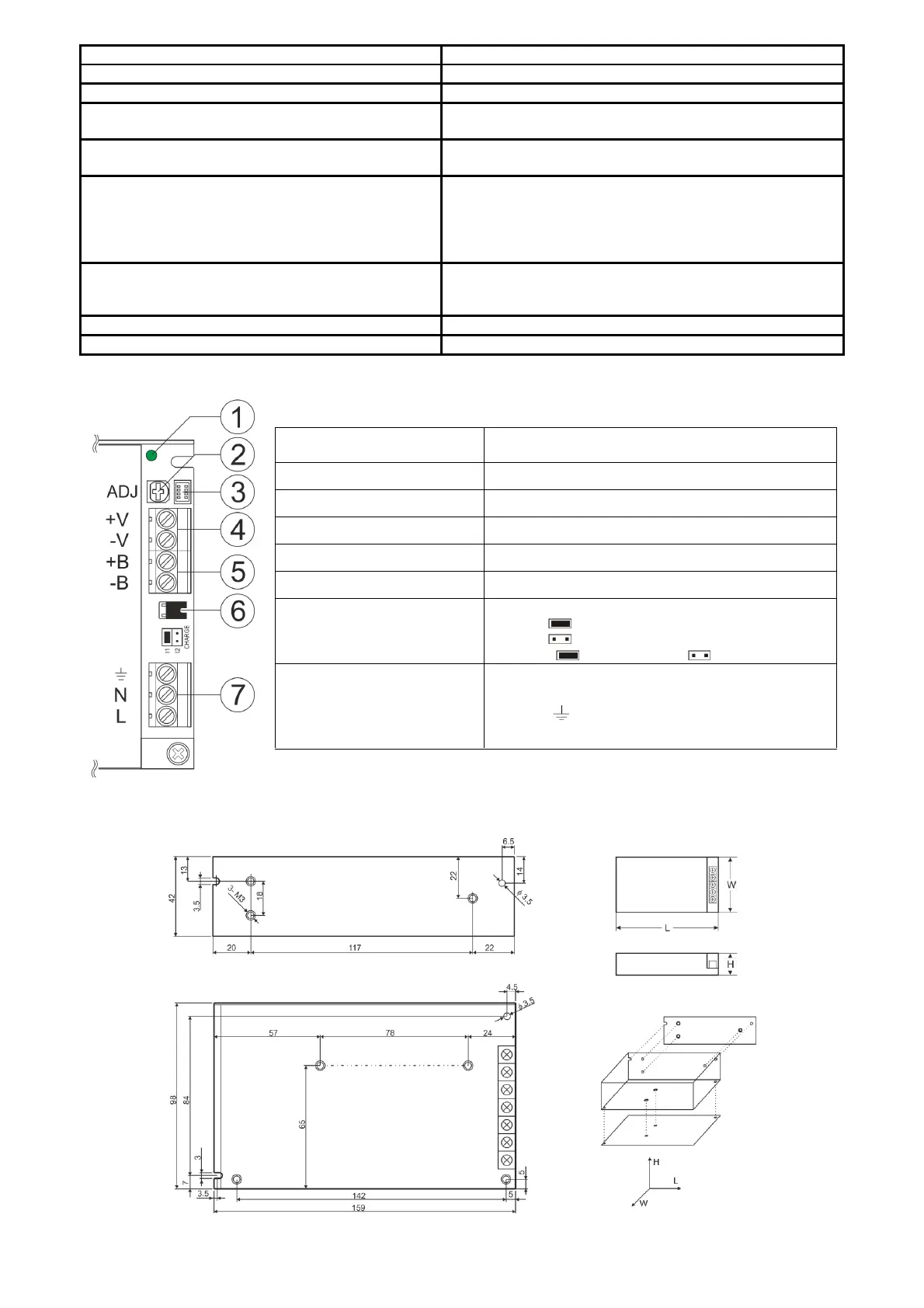

Elements/connectors [Fig.1]
LED for DC output voltage
Potentiometer - output voltage adjust
Connector of optical signalization LED
Power supply output (V+, V-)
Battery connector (B+, B-)
Jumper -battery charging current configuration:
Ibat =0,5 A
Ibat =1,0 A
Legend: jumper installed, jumper removed
L-N - input voltage connectors 230 V,
– protective conductor connector
1.4. Dimensions and fitting of the PSB-24V3A power supply.
