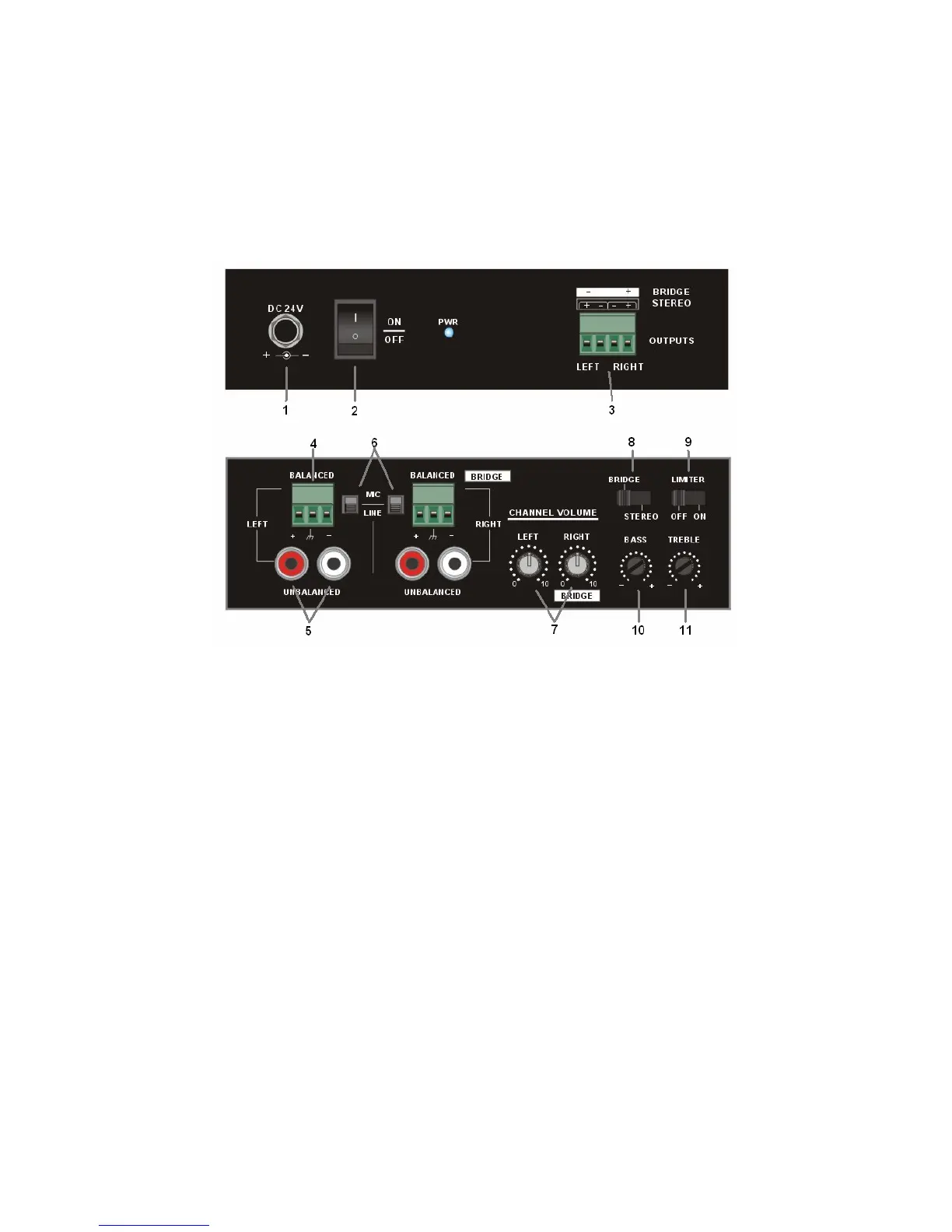

Connections / Controls
1. DC Power Input – Supplied AC adaptor provides 24VDC, 3A with
100~240VAC, 50~60Hz input range.
2. Power ON/OFF Selector – Turns amplifier power on or off. When on,
the blue LED immediately to the right of this switch will illuminate.
3. Speaker Output Connection – Detachable Phoenix style connectors
may be removed from the amplifier for easy access. Screw type
terminals will accept up to 14AWG wire. Note the different labeling for
stereo or bridged mono connection. Also, as this is a floating output,
no speaker connections may be tied to chassis or earth ground.
4. Balanced Input Connection – Allows connection of line level or mic
level source to the input of the amplifier. Detachable Phoenix style
connectors may be removed from the amplifier for easy access and
accept up to 14AWG wire. While this connection is intended for
balanced use, unbalanced sources may also be used by strapping the
low signal (-) and chassis ground terminals together.
5. Unbalanced Input Connection – Accepts standard line level signal
from conventional consumer devices such as CD/DVD players,
television monitors, tape decks and tuners. Note that stereo operation
requires connection to left and right inputs. Each amplifier channel
