7
MODEL# 9009SJ
ASSEMBLY INSTRUCTIONS
1
(12) (12)
(2)(1)
(11) (11)
(13) (13)
(10)(10)

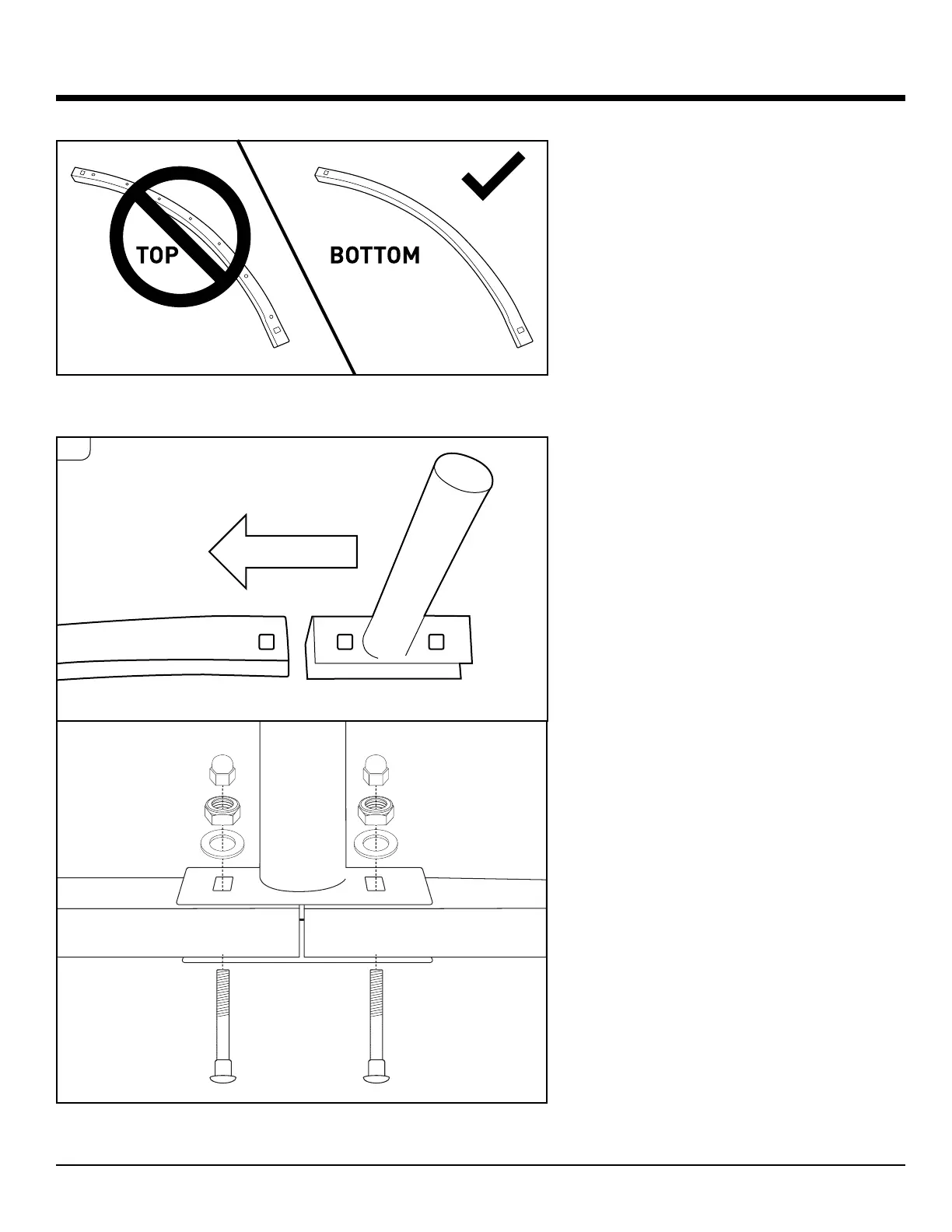

NOTE:
Make sure that you assemble the
T-Section/Legs to the Top Rail as shown to
be certain that the pre-drilled spring holes
are facing in the correct direction when you
attach the springs.
STEP 1:
A. Slide a T-Joint (Part 2) onto the end of a
Top Rail (Part 1). Next, slide the end of
another Top Rail into this T-Section so
that each Top Rail can be bolted to one
side of the T-Section.
NOTE:
Make sure that the Solid Edge of the
T-Section is facing away from the center of
the circle for each Top Rail Section.
B. Fasten the T-Joint to the Top Rails using
2x Bolts (Part 10), 2x plastic Washers
(Part 13), and 2x Hex Nuts (Part 11).
NOTE:
Do not fully tighten the bolts until all Top
Rails are connected.
Repeat these steps with all Top Rails and
all T-Joints to form the Top Rail Frame.
Once the Top Rail Frame has been
formed, tighten all hex nuts and place
12x Safety Nut Caps (Part 12)
INSIDE
To Next Page
