4.10 C5 (0.22F)

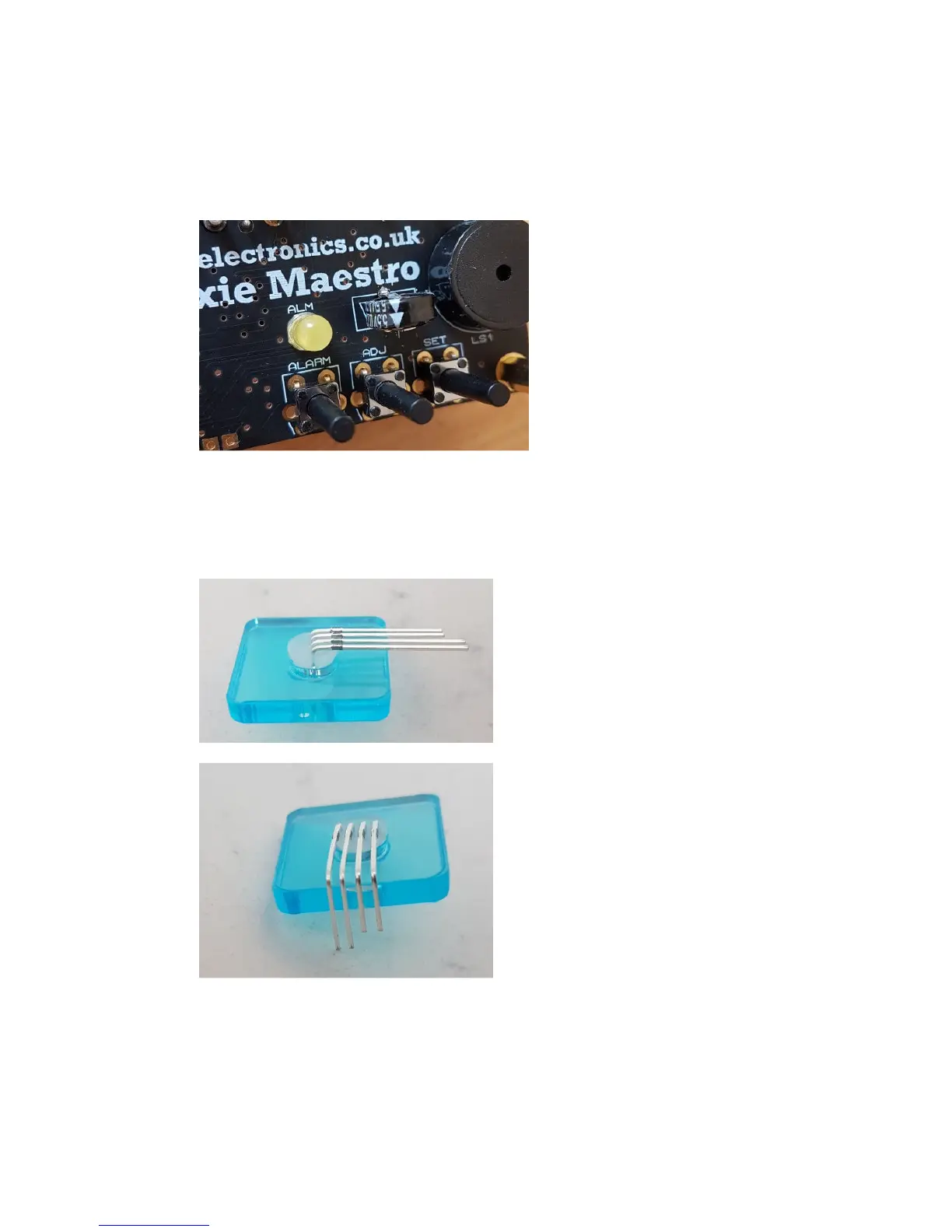

Solder as shown below, noting the direction of the arrows on the

part.

4.10 RGB1 – RGB6 (APA106 RGB LED)

Using the large hole in the LED jig, bend the LED leads two steps

as shown below, noting the position of the longer two leads.
