5 6

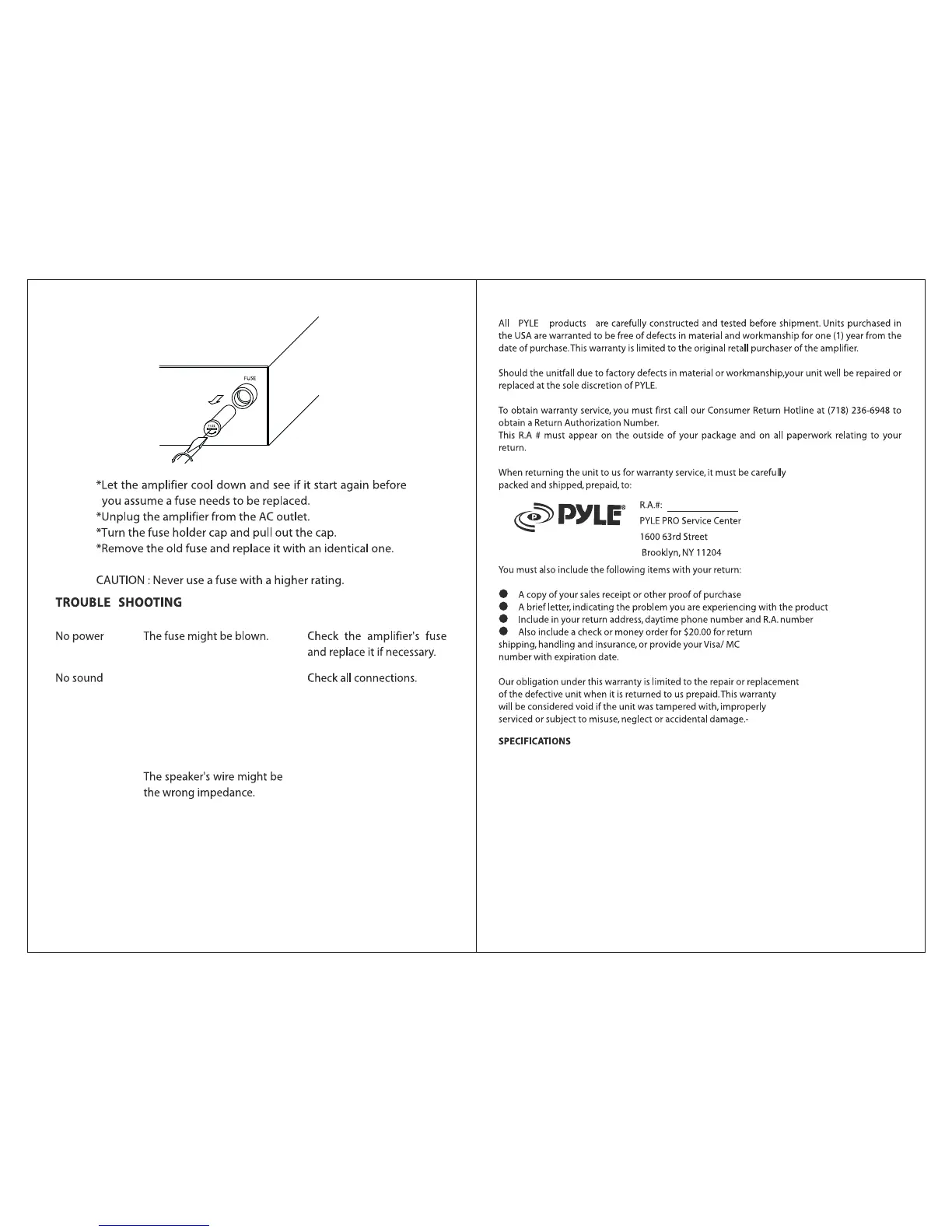

LIMITED WARRANTY
Output power, 2 channels driven
4-ohm, 1 KHz 1% THD. 15 Wx2
4-ohm, 1 KHz 10% THD. 10.1 Wx2
Peak Power 25 Wx2
Total Harmonic Distortion, 1 KHz Rated Power 0.3%
Input Sensitivity, 1 KHz, 4-ohm Rated Power 150mV
Frequency Response 20Hz-40KHz
Signal to Noise Ratio 75dB
Power Requirement 120V AC 60 Hz
or 230V AC 50Hz
Dimensions 5.6" x 2.6" x 4.2" inch
Turn the amplifier off and let it
cool, make sure that the amplifier
is properly ventilated, and then
turn it back on.
Make sure that the speakers
that you have connected to
the amp are matching in
impedance.
The amplifier is shutting down
or powering off
Adjust the volume control to
a higher setting.
Sound source or speakers
may not be connected
properly.
Master volume control may
be set to a minimum.
