Pyle PDC21 User Manual

NOTE: TO avoid annoying pops and clicks be sure to mute
(or turn down the volume control) of your mixer’s output
while connecting the PDC21.
The PDC21 provides the capability of tapping off the signals from
amplifiers, such as the output or guitar amp or power amplifier. You can
even use PDC21 to connect to the speaker output of a consumer stereo
system or boom box, for example, if you want to sample some old
records or cassette tapes.
NOTE: Be sure that the ATT switch is set to (-20db or -40db)position
before connecting the signal from the output of any amplifier.

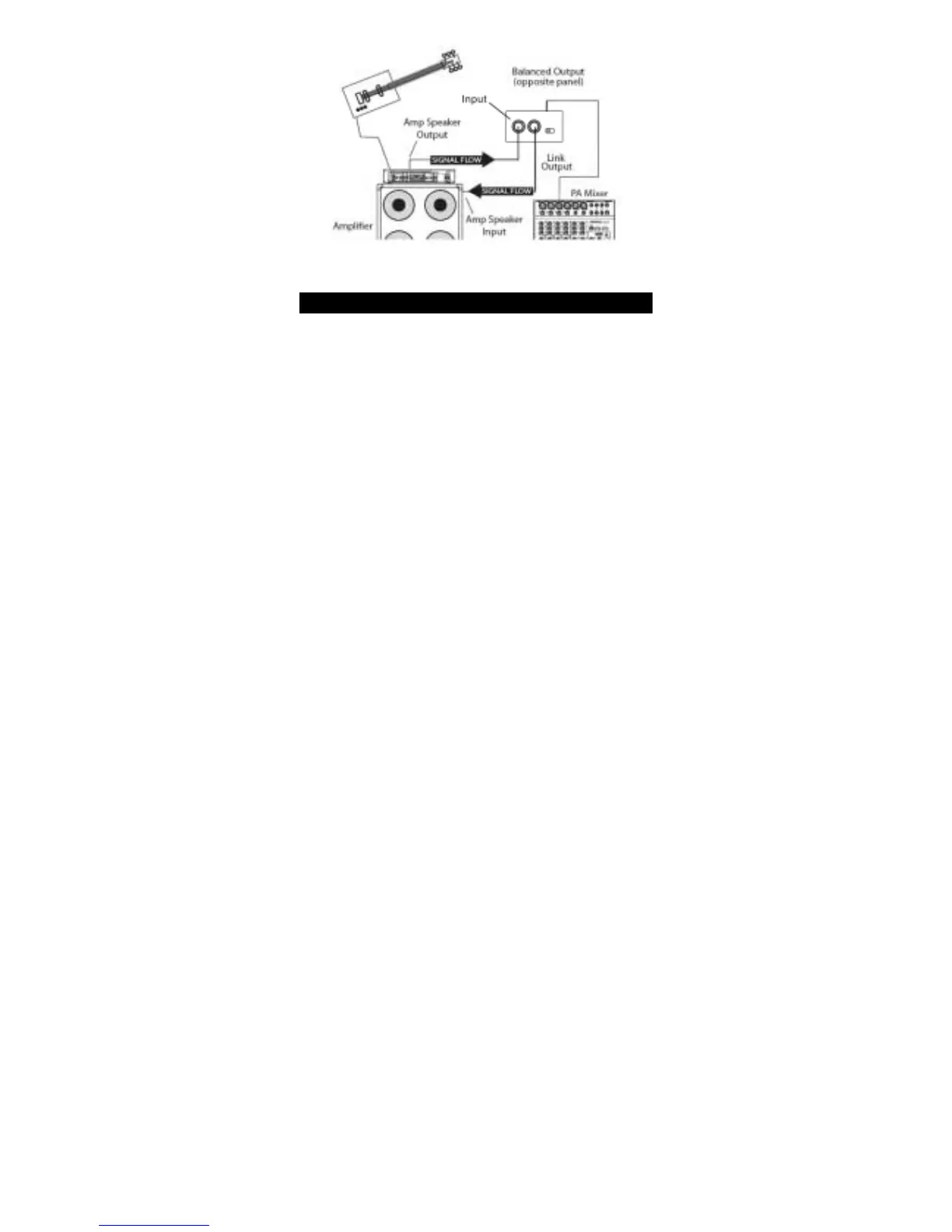

Follow the diagram and steps below to connect a powered output of a
guitar amplifier to a PA mixer.
·connect the output of the guitar or bass to the guitar amp input.
·Set the ATT switch to the -20db or -40db
·Using unshielded speaker cable, connect the guitar amp’s speaker
output to the PDC21’s INPUT
·Using another unshielded speaker cable, connect PDC21’s PARA OUT
to the input of the guitar amplifiers speaker
·Connect PDC21’s BALANCED OUTPUT to the input of main PA mixer.
Connecting to High Power Signals
-
3
-

Pyle PDC21 Specifications

General

Connector 1	1/4'' TS
Connector 2	1/4'' TS, XLR
Depth (imperial)	3.01 \
Width (imperial)	4.72 \
Height (imperial)	1.77 \
Number of products included	1 pc(s)
Product color	Black
Housing material	Steel

Weight and Dimensions

Depth	76.5 mm
Width	120 mm
Height	45 mm
