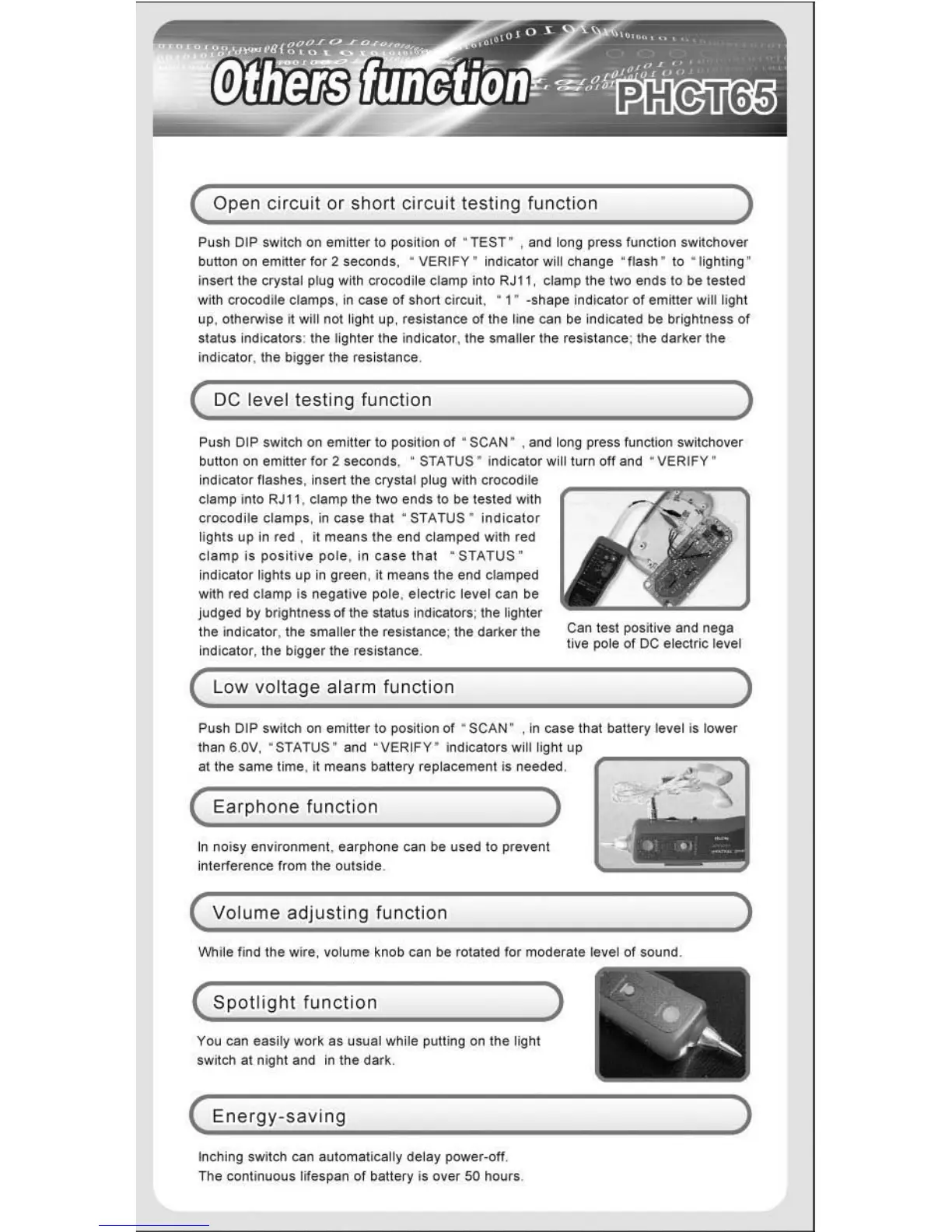

Pyle PHCT65 - Additional Functions; Circuit Testing Functions; Operational Features

Open circuit or short circuit testing function
Push DIP switch on emitter to posilion 01 "T EST' , and long press function sw~chover
button on em~ te r f or 2 seconds, • VERIFY ' indicator will change "flash " to ' Iighting"
insert the crystal plug wilh crocodile clamp into RJII, clamp the two ends 10 be tested
with crocodile clamps, in case 01 short Circuit. • I ' -shape indicat or 01 emmer will light
up,
otherwise ~ will nollight up, resistance 01 the line can be indicated be brightness 01
staws
indicators: the lighler the indicator, th e smaller the resistance: th e darker the
indicator, the bigger the resistance.
( DC level tes ting function
)
Push OIP sw~ch on emitter to po";tion 01 " SCAN ' , a nd oog press l unctoo switchover
button on emmer for 2 seconds, • STATUS ' indicator will t um 01 1 a nd ' VERIFY '
indicator flashes, insert the crystal pl ug with crocodile
clamp into
RJll , clamp th e two ends to be tested with
crocodile clamps,
in case thai' STATUS ' indicator
lighls up in re d, il means Ih e e nd cla mp ed with red
clamp is pos i tiv e pole , in case that • STATUS"
indicator lights up in gr"n, it means the end clamped
w~h red clamp Is negallve po le. electric le vel can be
judged by
brightness 01 the status indicatOfS: the lighter
t he in dicator, the smaller the resistance; the darker the
indicator, the bigger the resistance.
Can test pos~ i ve and nega
tive po le of DC e~tr~ level
C Low voltage alarm function
)
Push DIP switch on emitter to po si tion 01 • SCAN " ,in case that ballery level Is lower
th an 6.0V, • STATUS ' a nd ' VERIFY ' indicators will light up
al the same lime, it means battery replacement is needed.
C Earphone func ti on
)
In noisy en vironment, earphone can be us ed to prevent
interference from the outside.
C Vo lume adjusting function
lM1ile find the wire, volume knob can be rotated lor moderate level of sound.
( Spot lig ht function
You can easily work as usual while put!ing on the light
sw~ch at night and in the dark
C Energy -s aving
Inching switch can au tomatically delay power -<l ff
The
continuous I~espan of battery Is ovel 50 houls
)
)
)
