PLCMTR‐CommercialGradeCameraSystem
www.pyleaudio.com

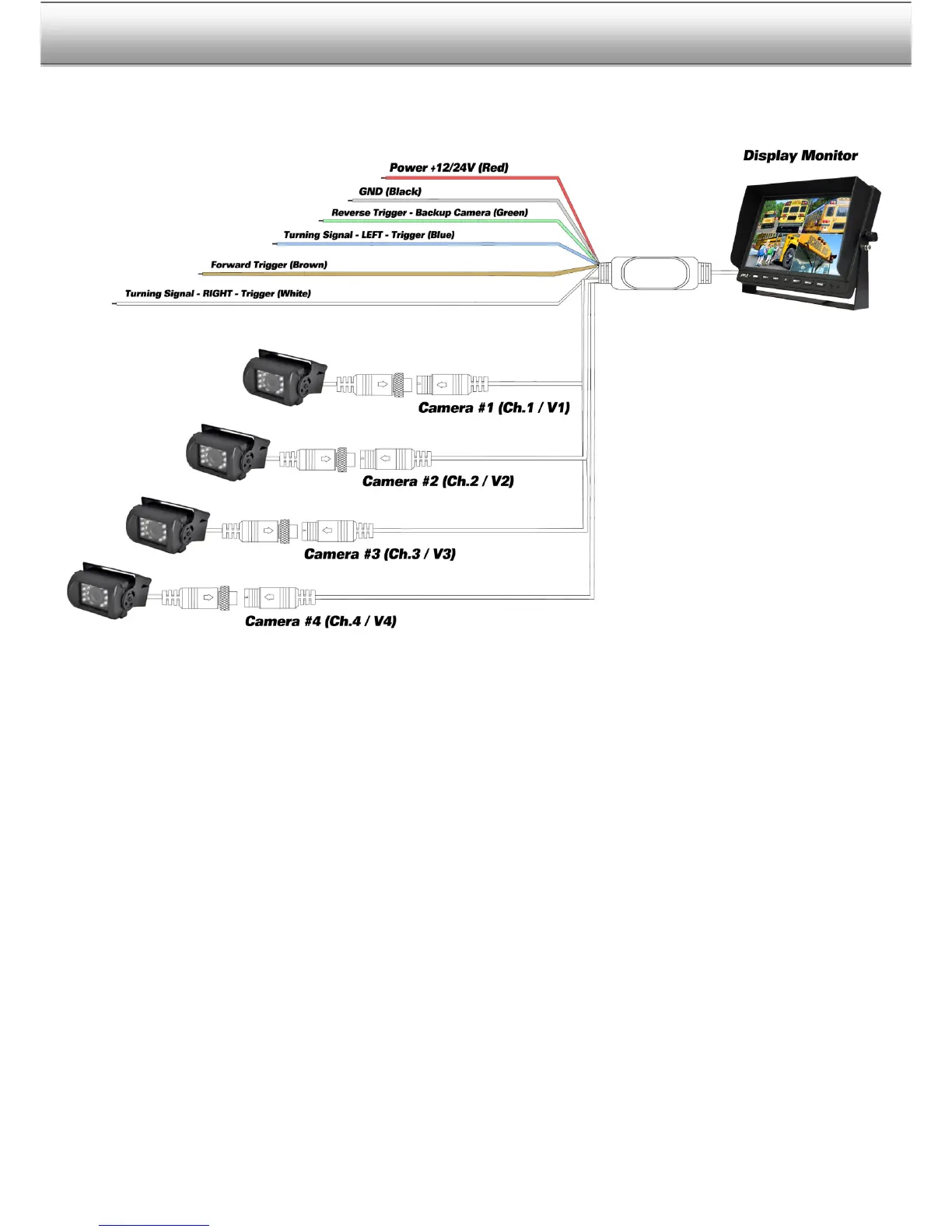

Wiring & Connection
Red:Power12/24V
Black:GND
Green:ReverseTrigger(BackupCamera)
Blue:TurningSignal‐Left‐Trigger
White:TurningSignal‐Right‐Trigger
Brown:ForwardTrigger
*Foradditionalinformationvisitwww.PyleAudio.com
