PLUTV43BTA Installation
1. To avoid potential shorts in the electrical system, be sure to disconnect the (-) battery cable
before installation. Use this unit with a 12-Volt battery and negative grounding only.
Failure to do so may result in a re or malfunction.

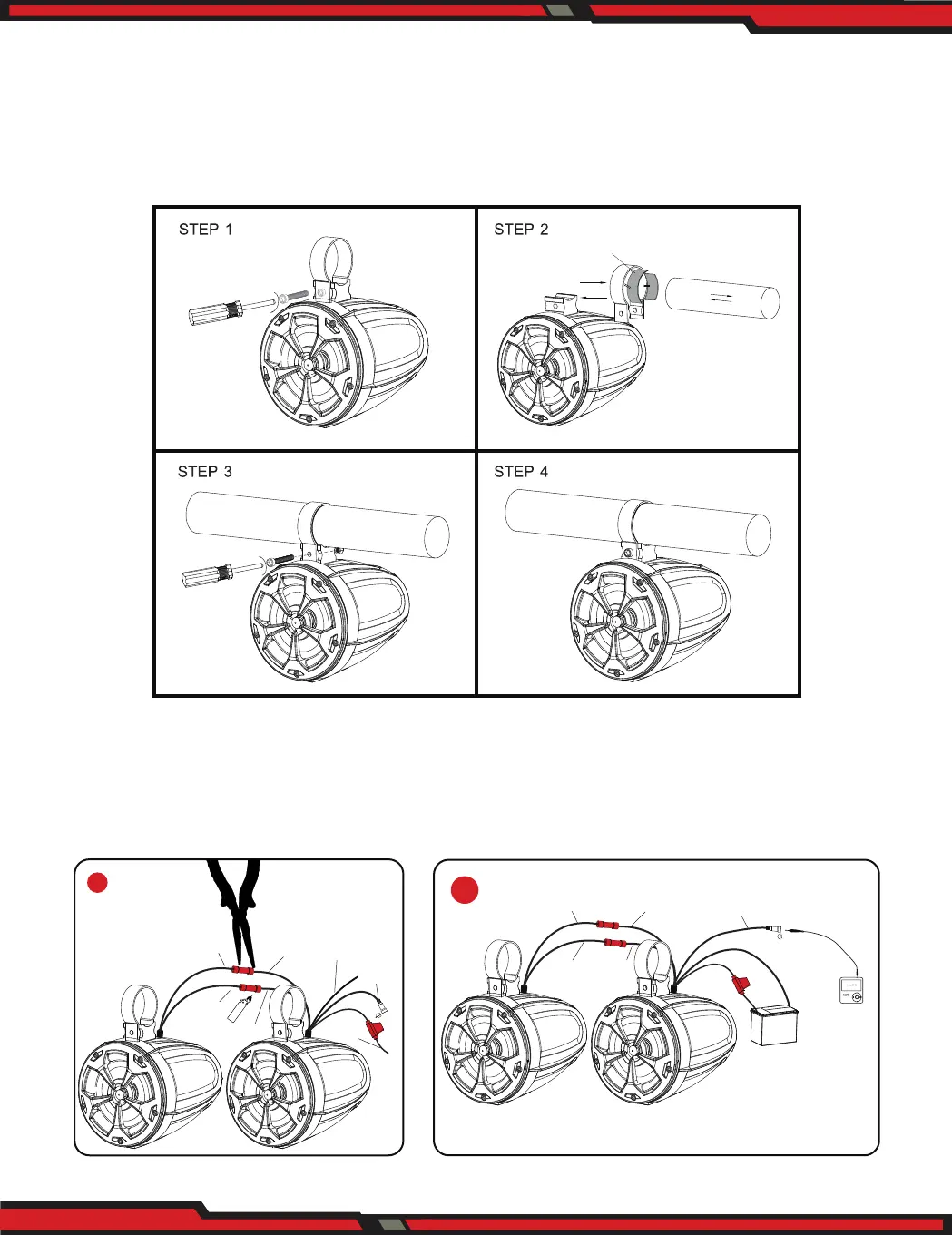

2. Speaker Mounting suggestion as below:
Step 1: Unbolting the mounting bracket
Step 2: Slide in the buckle with rubber pad attached to the bracket stand of the speaker
Attach the set to handle bar of vehicle / ship
Step 3/4: Attach screw to lock the buckle
Step 5: Using accessories of Butt Connector to Connect Speaker wires (See Illustration 1)
Step 6 : Using accessories of Butt Connector to Connect Power Cable (See Illustrations 2)
Rubber Pad
Blue
Blue
yellow
yellow
+
+
-
-
black
Red
AUX
IN
1
Blue
yellow
+
+
-
-
BlackRed
Blue
yellow
+
-
+
-
Power
AUX IN
2
To Next Page
