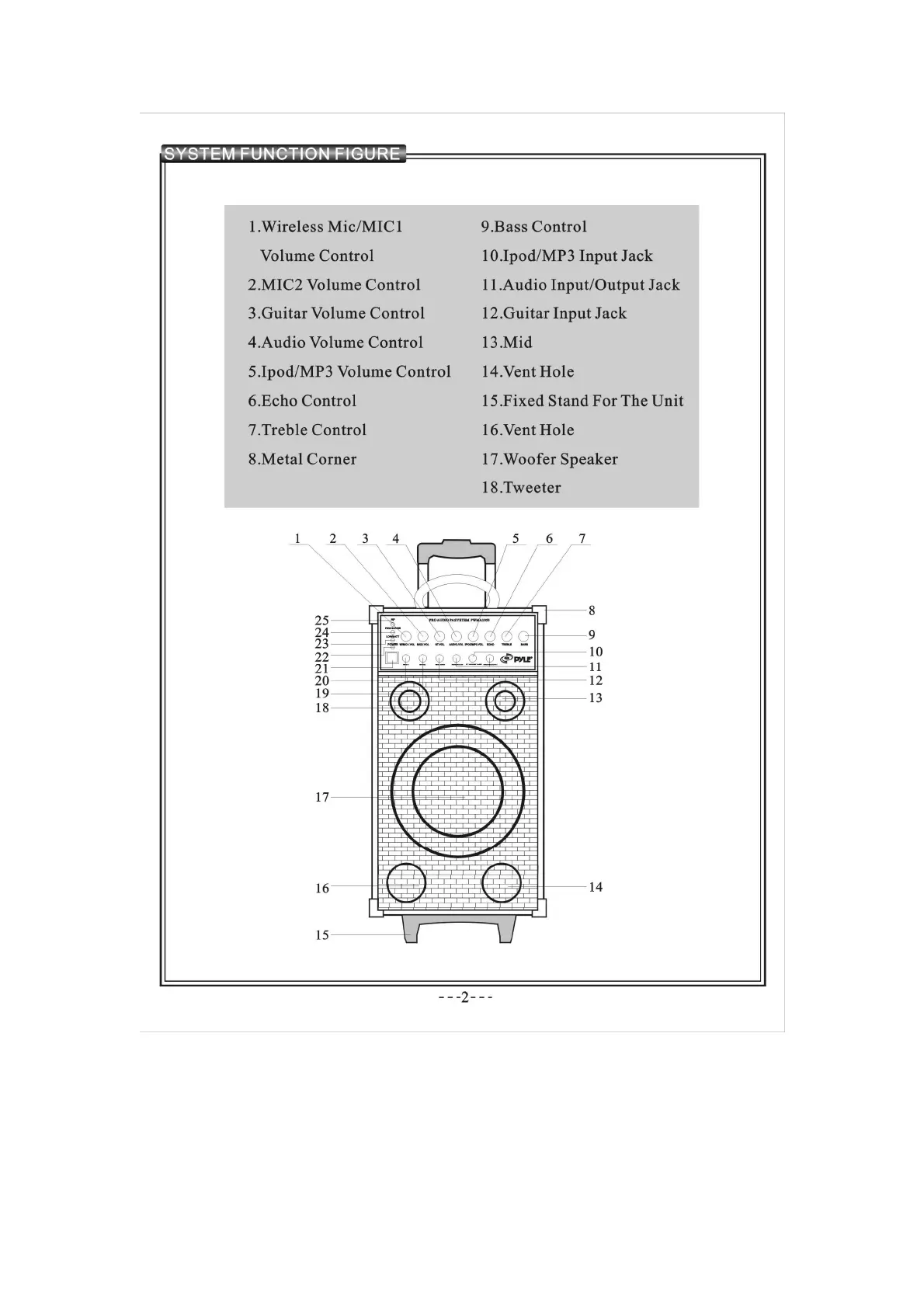

SYSTEM FUNCTION FIGURE
29. Trailer Handle
30. Heating Pane
31. Handle
32. Audio Out
33. Voltage Selector Switch
34. AC Fuse/Battery Fuse
35. Powerline (-115V/230V)
36. External DC Input Jack
37. 2 PIN Power Socket
INSTRUCTIONS
1. Conrm the power
AC Power: Before operation, please conrm the voltage is same as the specied
marked on the label. If not, the unit will be damaged.
Built-in Rechargeable Battery: Plug-in the AC power when the rechargeable
battery voltage is enough but use the battery directly. When the Low Voltage
indicator turns yellow, it indicates the low battery, please charge it in time. When
the Low Voltage indicator turns OFF, it indicates the voltage is standard now.
If the unit will not be used for a long time, please charge the rechargeable battery
every 2 months, 8-10 hours for each time.
2. Operation Instructions
• Plug the power cable into the socket and connect it with this amplier system.
• Switch ON the amplier. the Power Indicator comes red.
• During charging, RECHARGE indicator turns red, when the indicator is ashing,
that means battery is almost full and turns OFF when fully charged.
• During charging, you can play music at the same time, the RECHARGE indicator
will ash with the current comsuption indicating the speed of charge. Charge time
is in direct proportion to the volume of music. When the battery is full, RECHARGE
indicator will stop ashing and turns o.
• Put two AA 1.5V battery into handheld microphone (bodypack transmitter), push
the Power Switch to the middle, the Power Indicator will ash once, RF Indicator
turns green.
• Push the handheld microphone Power Switch (bodypack transmitter) to ON position,
your sound can be heard from amplier when speaking.
Adjust the Volume Control/Echo Control/Treble Control/Bass Control to proper
position to avoid feedback.
• If the microphone Power Indicator (bodypack transmitter) turns on at all times,
it indicates the low battery, please replace the battery.
• Connect relative guitar cable with Guitar Input Jack on this system to play music.
38. Rechargeable Battery Cover
39. Warning
40. 7AH/12V Rechargeable Battery
41. Truckle OfTrailer
42. Mic Head
43. RF Indicator Of Handheld Mic
44. Power Switch Of Handheld Mic
45. Battery Housing Of Handheld Mic
