Pyle PWMA325BT User Manual

14. Microphone volume: Microphone volume regulating knob.
15. Reverberation: Microphone reverberation regulating knob.
16. Microphone input: Microphone input jack
17. DC 12V recharging: DC 12V recharging port.
18. : Press it to control the ash light switch.
19. Recharging indicator light: When recharger is connected, the red light turns on. When
the device is fully recharged, the blue light turns on.
20. Power switch: “ ” - ON; “ ” - OFF.
21. TREBLE: The control knob of treble
22. BASS: The control knob of bass
23. IR: Infrared remote receiver module
CAUTION:
Please be sure to charge while music distorted.

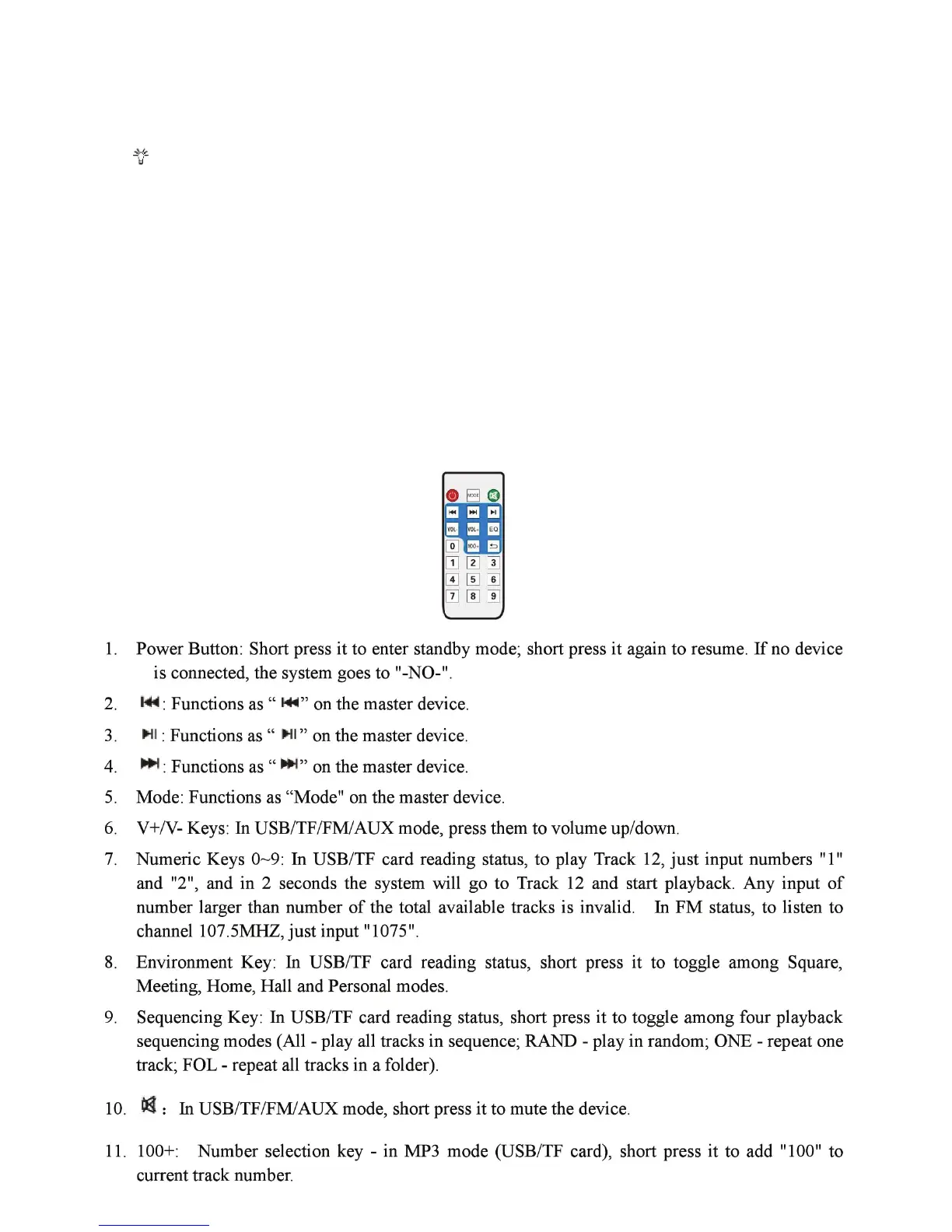

V. OPERATION INSTRUCTIONS FOR REMOTE

Pyle PWMA325BT Specifications

General

Tweeter	Yes
Tweeter diameter	76.2 mm
Number of speakers	1
Audio output channels	- channels
Subwoofer driver diameter	203.2 mm
Impedance	4 Ω
Sensitivity	85 dB
Frequency range	100 - 20000 Hz
RMS rated power	- W
Total Harmonic Distortion (THD)	1 %
Bluetooth version	2.0+EDR
Compatible memory cards	SD
Connectivity technology	Wired & Wireless
Recommended usage	Universal
Audio formats supported	MP3
Power source type	Battery
AC adapter input voltage	100 - 240 V
Product type	Stereo portable speaker
Product color	Black
Cables included	AC
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	594.36 mm
Width	426.2 mm
Height	365.76 mm
Weight	- g
