Pyronix KX15DTAM User Manual

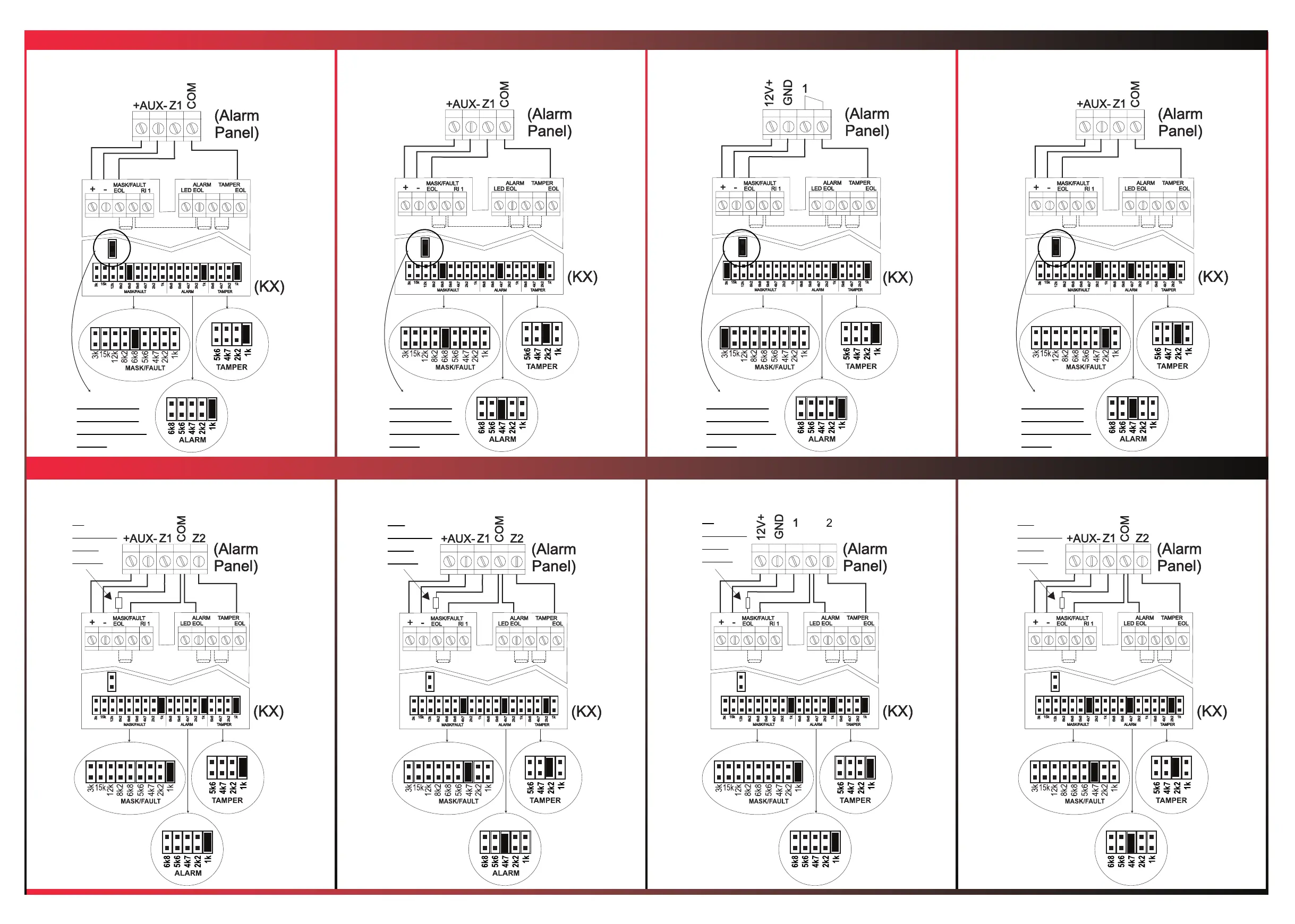

Grade 3 DEOL Connections: Connecting all three technologies to one input
Menvier/Cooper
Conventional DEOL Connections: Connecting the PIR/Microwave to one input and the Anti-Masking to a separate input
HoneywellCastle
Menvier/CooperPyronix Ltd HoneywellCastle
1K
RESISTOR
HARD
WIRED
2K2
RESISTOR
HARD
WIRED
1K
RESISTOR
HARD
WIRED
2k2
RESISTOR
HARD
WIRED
Pyronix Ltd
MASK FAULT
END OF LINE
HEADER MUST
BE ON
MASK FAULT
END OF LINE
HEADER MUST
BE ON
MASK FAULT
END OF LINE
HEADER MUST
BE ON
MASK FAULT
END OF LINE
HEADER MUST
BE ON

Pyronix KX15DTAM Specifications

General

Brand	Pyronix
Model	KX15DTAM
Category	Security Sensors
Language	English
