Python 1600XP - Page 57

© 2005 Directed Electronics—all rights reserved
5577

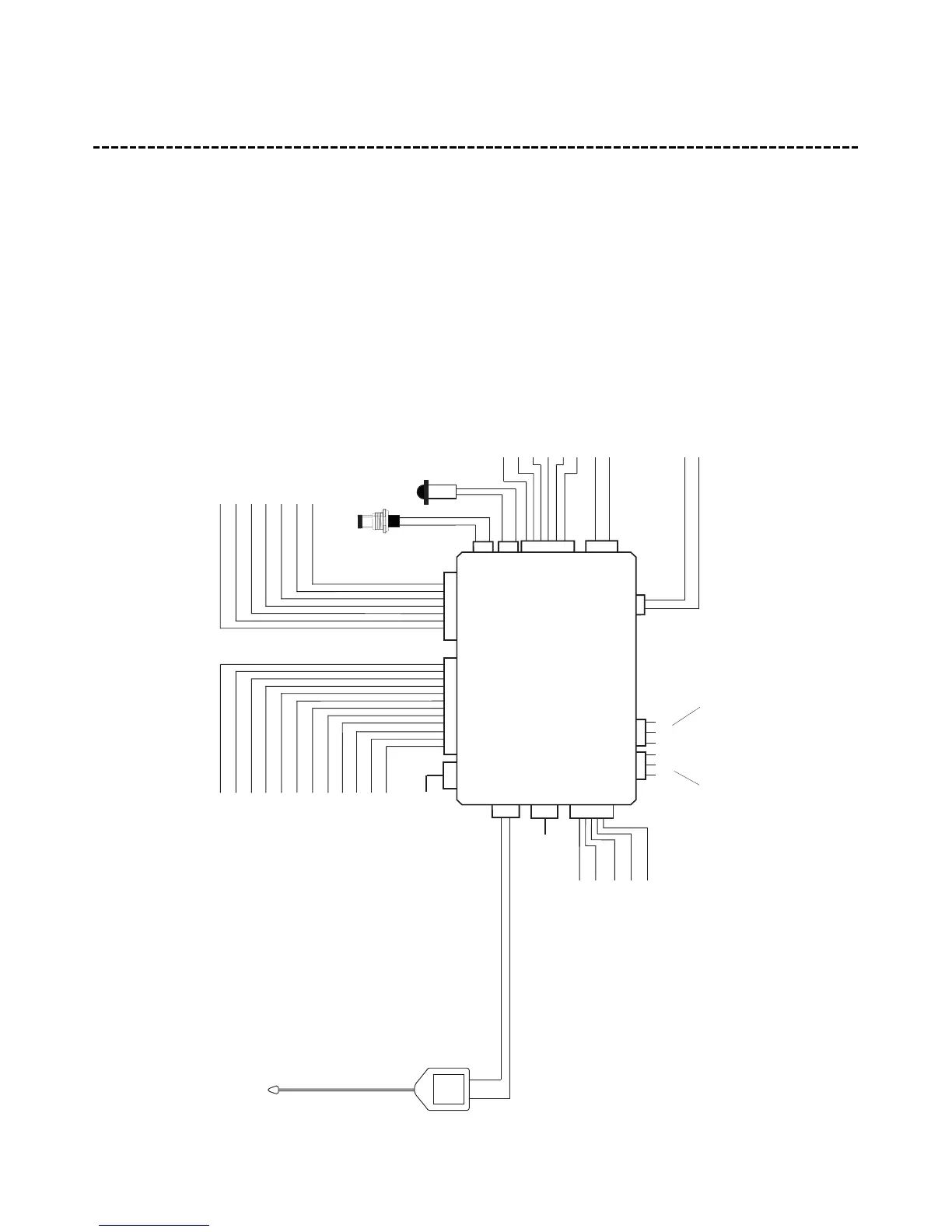

wwiirriinngg qquuiicckk rreeffeerreennccee gguuiiddee
ORANGE ground when armed output
WHITE (+/-) parking light output
WHITE/BLUE (-) activation input
GRAY (-) hoodpin shutdown input
BROWN (+) brake shutdown input
BLUE/WHITE (-) 200mA 2nd status/defogger
Antenna/Receiver
LIGHT-GREEN/BLACK (-) factory alarm disarm
GRAY/BLACK (-) wait to start input GREEN/WHITE (-) factory alarm rearm VIOLET/BLACK (-) 200mA channel 4 output
GREEN (-) lock (+) unlock LIGHT BLUE (+) unlock (-) lock
Valet/Program button
VIOLET/WHITE tachometer input
BLACK/WHITE neutral safety input
BitWriter
data port
563/564
WHITE/BLACK (-) 200mA channel 5 output LIGHT BLUE (-) 2nd unlock output
LED
Shock sensor port
BLACK/WHITE (-) 200mA domelight output
GREEN (-) door trigger input
BLUE (-) trunk trigger input
VIOLET (+) door trigger input
BLACK (-) ground input
Empty
BROWN (+) siren output
RED 12V constant input
RED/WHITE (-) 200mA channel 2 validity output
BLUE 200mA (-) status output ORANGE/BLACK 200mA anti-grind/ground when armed output VIOLET (-) 200mA starter trigger ORANGE (-) 200mA accessory trigger PINK (-) 200mA ignition trigger YELLOW (+) ignition input to remote start PINK/WHITE 200mA programmable ignition/accessory trigger
Jumper
tachometer
threshold
Jumper
light flash
polarity
+-LoHi
Remote
Start
H1
H2
Door
Lock
H3
BROWN Horn (-) 200mA output ORANGE/BLACK (-) 200mA channel 6 output
H4
