2004
Directed Electronics, Inc.
5

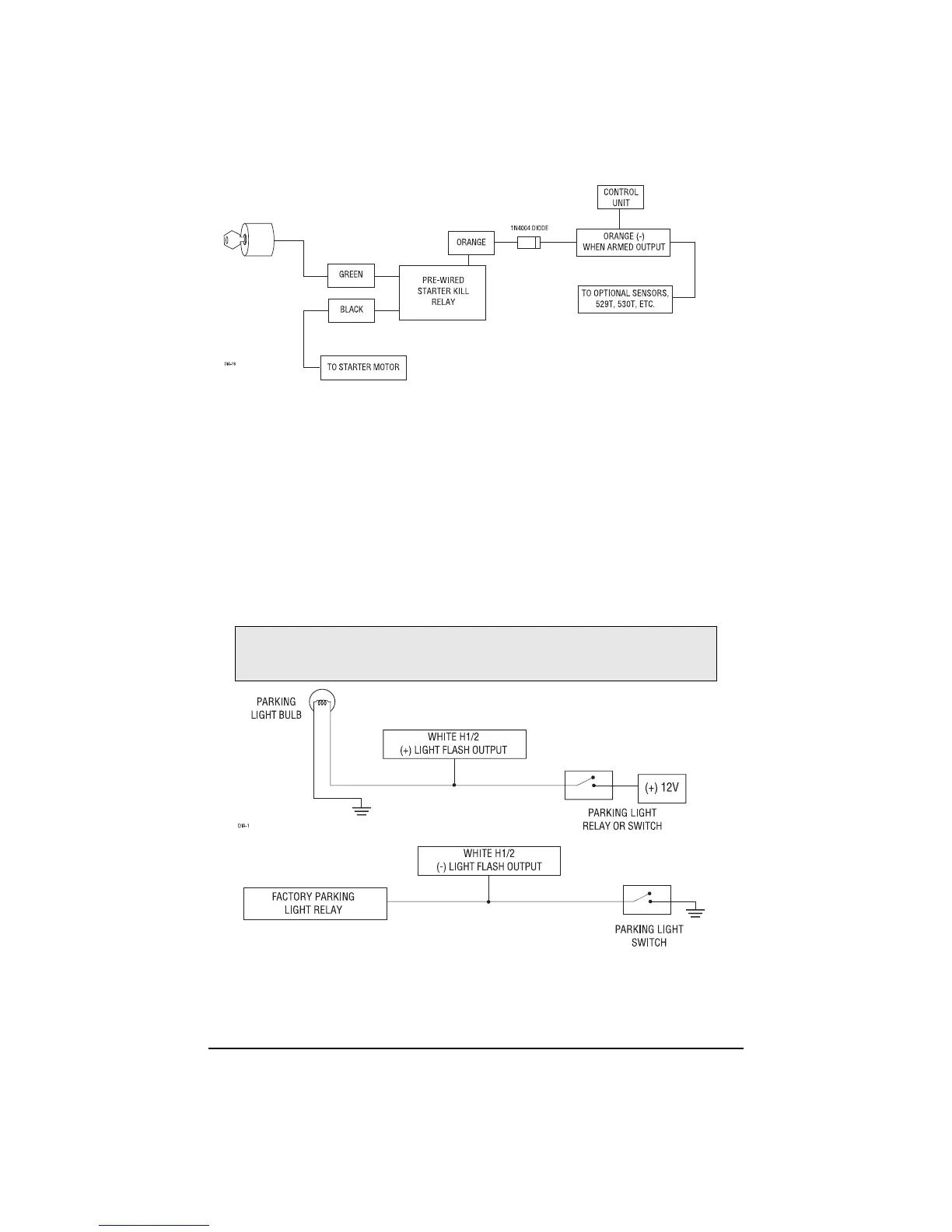

H1/2 WHITE (+/-) light flash output
As shipped, the H1/2 WHITE wire should be connected to the (+) parking light wire. If the light flash
polarity jumper is moved to the (-) position (see the
Programming Jumper
section of this installation
guide), this wire supplies a (-) 200 mA output. This is suitable for driving (-) light control wires in
Toyota, Lexus, BMW, some Mitsubishi, some Mazda, and other models.
NOTE: For parking light systems that draw 10 amps or more, the jumper must be switched to a
(-) light flash output (see the
Programming Jumpers
section of this guide). P/N 8617 or a standard
automotive SPDT relay must be used on the H1/2 light flash output wire.
H1/3 WHITE/BLUE 200 mA (-) channel 3 output
This wire provides a (-) 200 mA output whenever the transmitter button(s) controlling Channel 3
IMPORTANT! DO NOT connect this wire to a negative vehicle light flash wire before
changing the programming jumper to the negative polarity position or damage to
vehicle light circuit may occur.
