Python 660XP Installation Guide

©
2004 Directed Electronics, Inc. 7

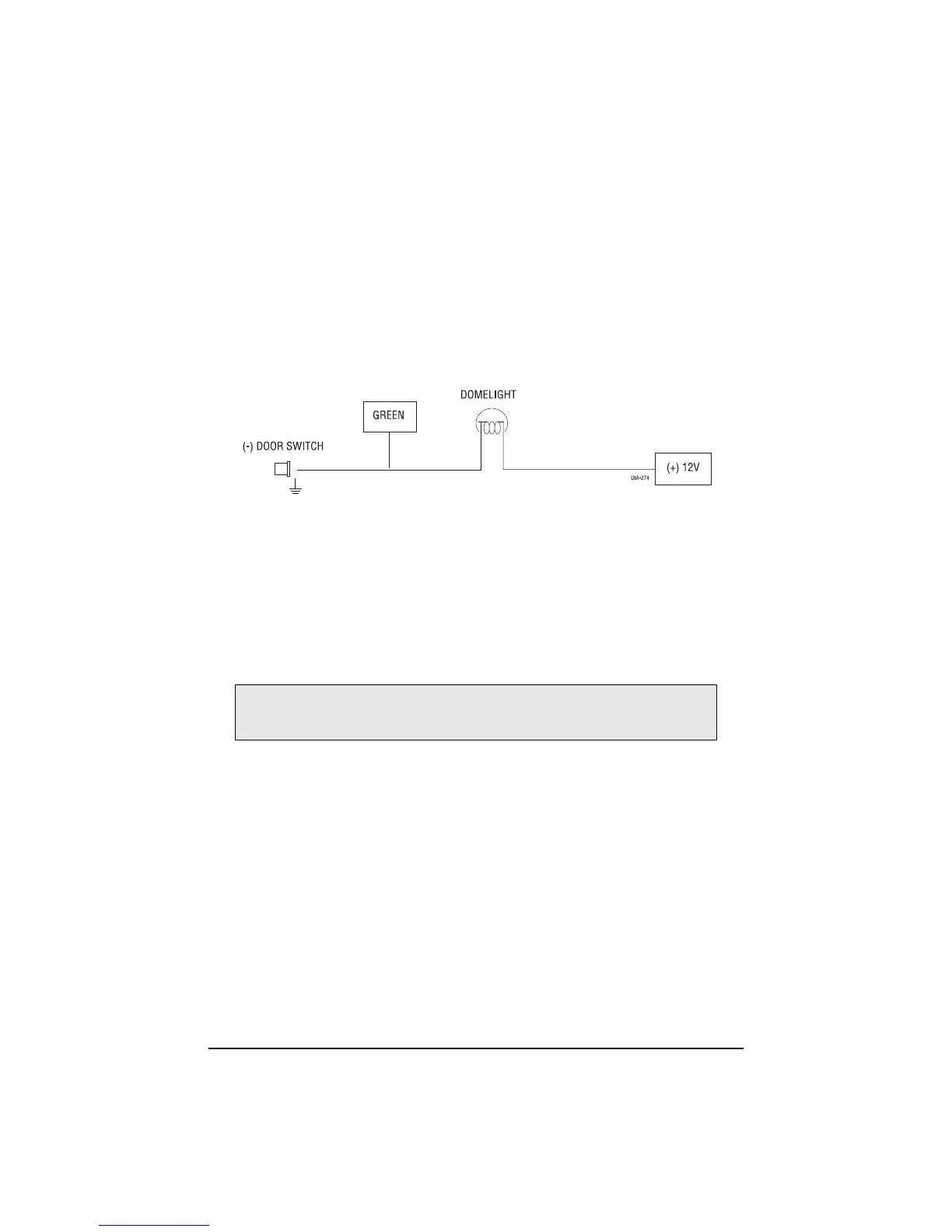

H1/5 GREEN (-) door trigger input
Most vehicles use negative door trigger circuits. Connect the GREEN wire to a wire showing
ground when any door is opened. When connecting to newer model vehicles there is generally a
need to use individual door triggers. See DirectFax document 1076 for wiring instructions. This
wire will report Zone 3.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T
Bitwriter can be used to turn Bypass Notification off.
H1/6 BLUE (-) instant trigger input
This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk pins
and will report on Zone 1. It can also be used with Directed single-stage sensors. The H1/6 BLUE
instant trigger wire can also be used to shunt sensors during operation of auxiliary channels or remote
start. (See
Bypassing Sensor Inputs section of this guide.)
H1/7 VIOLET (+) door trigger input
This type of dome circuit is used in many Ford products. Connect the VIOLET wire to a wire that
shows (+)12V when any door is opened. This wire will report Zone 3.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T
Bitwriter can be used to turn Bypass Notification off.
NOTE: If this wire is used for hood or hood and trunk, the remote control must be
reprogrammed to reflect the vehicle entries used (see owner’s guide).
