QC9416 Analog HD DVR
Functions & Connections
Complete instruction manuals and software available at
www.Q-See.com/Support

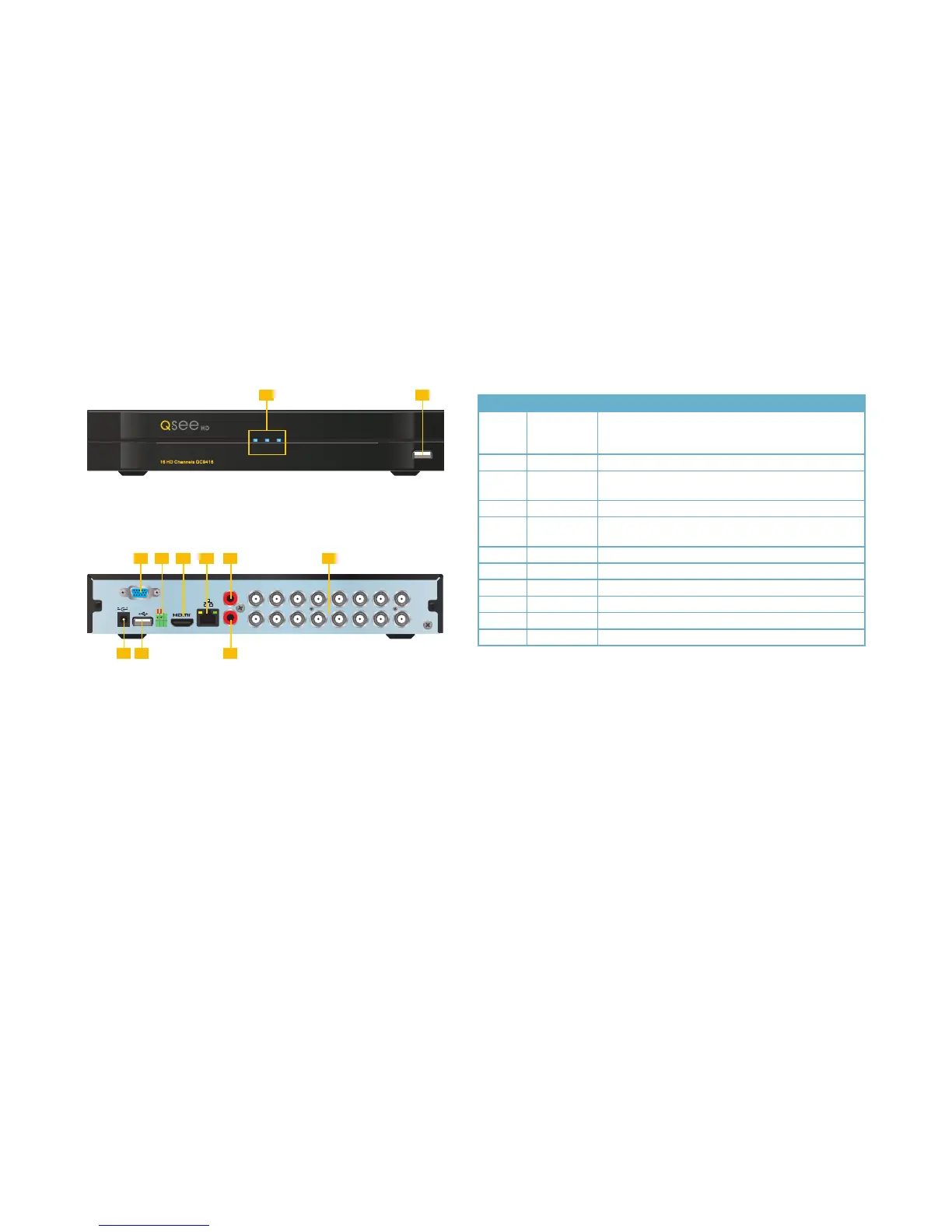

FRONT PANEL
REAR PANEL
Number Item Function
1 Status Lights
These show the status of the network connection, power and
hard drive respectively. The Network and Power lights will
normally be on. The Hard Drive light will normally be off.
2 USB Port Use with flash drive when backing up or updating firmware.
3
VGA Video
Out
To connect to a VGA monitor (21.5” or larger)
4 RS485 To control legacy pan-tilt platform
5
HDMI Video
Out
To connect to an HD display (21.5” or larger)
6 Network Ethernet cable connection to network.
7 Audio In Port RCA connector for microphone for 2-Way audio
8 Video In Ports BNC Connectors for video feed from cameras (16)
9 Power Input Connect 12V DC power supply here
10 USB Port Connect USB mouse here.
11 Audio Out RCA connector for external speaker
1 2
VGA
1
2
5
4
6
6
7
8
9
10
11
12
13
14
16
DC 12V
A B
VIDEO IN
AUDIO IN
AUDIO OUT
15
3
9 10 11
4 6 7 85
