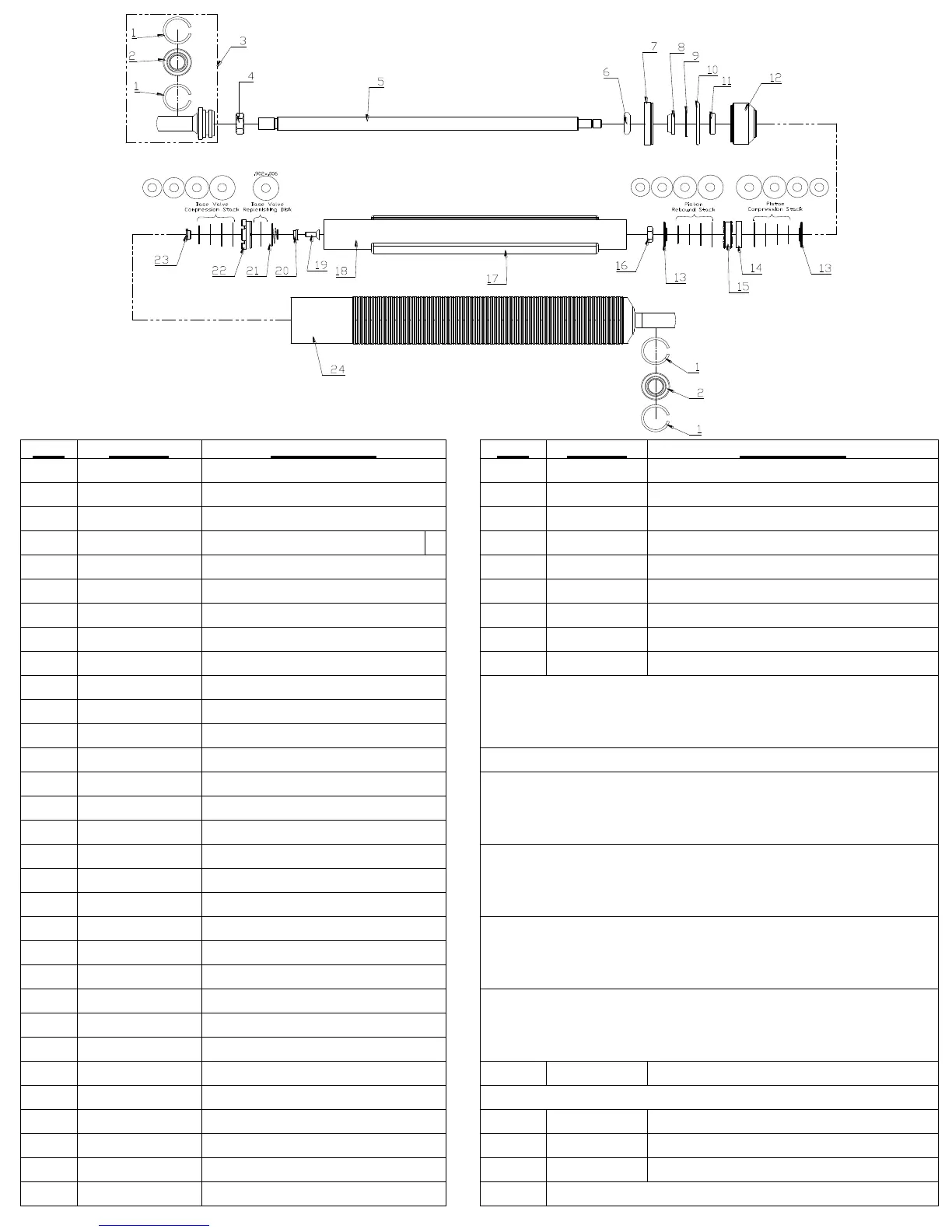

QA1 70 series - Page 2

Item
Part No.
DESCRIPTION
Item
Part No.
DESCRIPTION
1
9007-106
Snap ring
18
9053-120
6" compression tube (82/70)
2
SIB8-101PK
Bearing/snap ring kit
18
9053-115
7" compression tube (82/70)
3
9036-105
Aluminum loop assembly (82)
18
9053-130
8" compression tube (82/70)
3
9036-103
Steel loop assembly (70)
18
9053-129
9" compression tube (82/70)
4
JNR7A
Aluminum jam nut (82)
19
9014-155
Basevalve bolt
4
JNR7S
Steel jam nut (70)
20
9014-155
Basevalve bolt seat
5
9028-131
Rod, Piston - 3"
21
9015-107
Basevalve replenish disc spring
5
9028-132
Rod, Piston - 4"
22
9055-151
Basevalve housing
5
9028-133
Rod, Piston - 5"
23
9014-154
Basevalve nut
5
9028-134
Rod, Piston - 6"
24
9782-213
82 series 3" body tube (2 piece silver)
5
9028-135
Rod, Piston - 7"
9044-114
Body/base o-ring
5
9028-136
Rod, Piston - 8"
9062-134
2-piece body base (black)
5
9028-137
Rod, Piston - 9"
24
9782-118
82 series 4" body (1 piece red)
6
9044-115
Travel indicator
24
9782-210
82 series 5" body tube (2 piece silver)
7
9014-153
Closure nut
9044-114
Body/base o-ring
8
9046-103
Wiper
9062-134
2-piece body base (black)
9
9005-133
Seal retaining washer
24
9782-211
82 series 6" body tube (2 piece silver)
10
9044-114
Closure nut o-ring
9044-114
Body/base o-ring
11
9042-113
Piston rod seal
9062-134
2-piece body base (black)
12
9054-112
Gland assembly
24
9782-212
82 series 7" body tube (2 piece silver)
13
9027-112
Valve stack plate
9044-114
Body/base o-ring
14
9042-114
Piston band
9062-134
2-piece body base (black)
15
9057-252
Piston
24
9782-215
82 series 8" body tube (2 piece silver)
16
9014-418
Piston nut
9044-114
Body/base o-ring
17
9052-105
3" gas bag (82/70)
9062-134
2-piece body base (black)
17
9052-106
4 - 5" gas bag (82/70)
24
9782-113
82 series 9" body (1 piece red)
17
9052-107
6 - 7" gas bag (82/70)
17
9052-108
8 - 9 gas bag (82/70)
24
9770-102
70 series 6" body
18
9053-132
3" compression tube (82/70)
24
9770-101
70 series 7" body
18
9053-131
4" compression tube (82/70)
24
9770-103
70 series 9" body
18
9053-114
5" compression tube (82/70)
