8

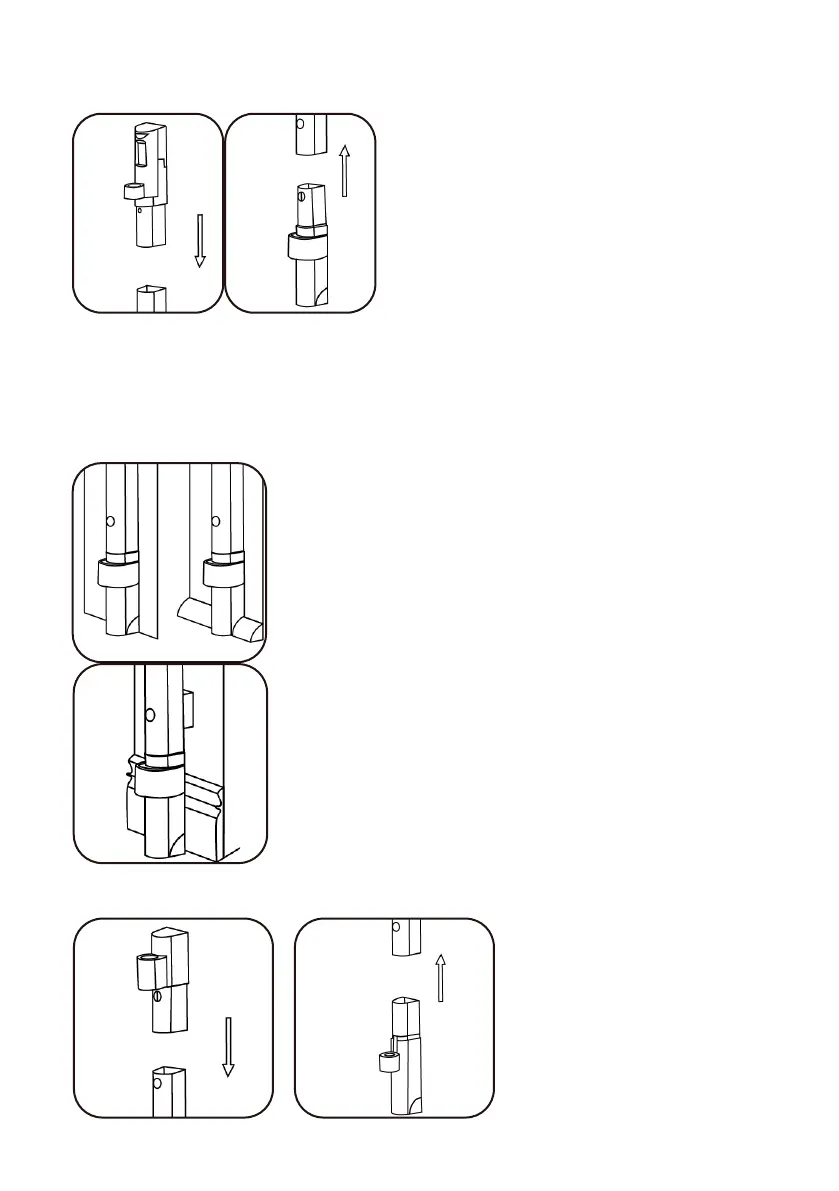

Step 1
Identify the rail with only
one hole in it. With the hole
towards the bottom, push the
Top Lock into the top of the
FastMount® Locking Rail (A/B)
until the plastic tab snaps into
place on the back of the rail
(A). Push the Bottom Lock
into the bottom of the Locking Rail until the plastic tab
snaps into place on the back of the rail (B).
IMPORTANT:
If you are mounting on a wall with
quarter round molding on the floor,
while pushing in the locking tab on
the back, pull out the Quarter Round
Spacer from the bottom of the Bottom
Lock.
If you are mounting on a wall that has a
baseboard, please see Page 14 on how
to use the included Baseboard Spacers.
Step 2
Repeat Step 1 for the
Top (C) and Bottom
Hinge (D) pieces on
the FastMount®
Hinge Rail (C/D).
C D
A B
