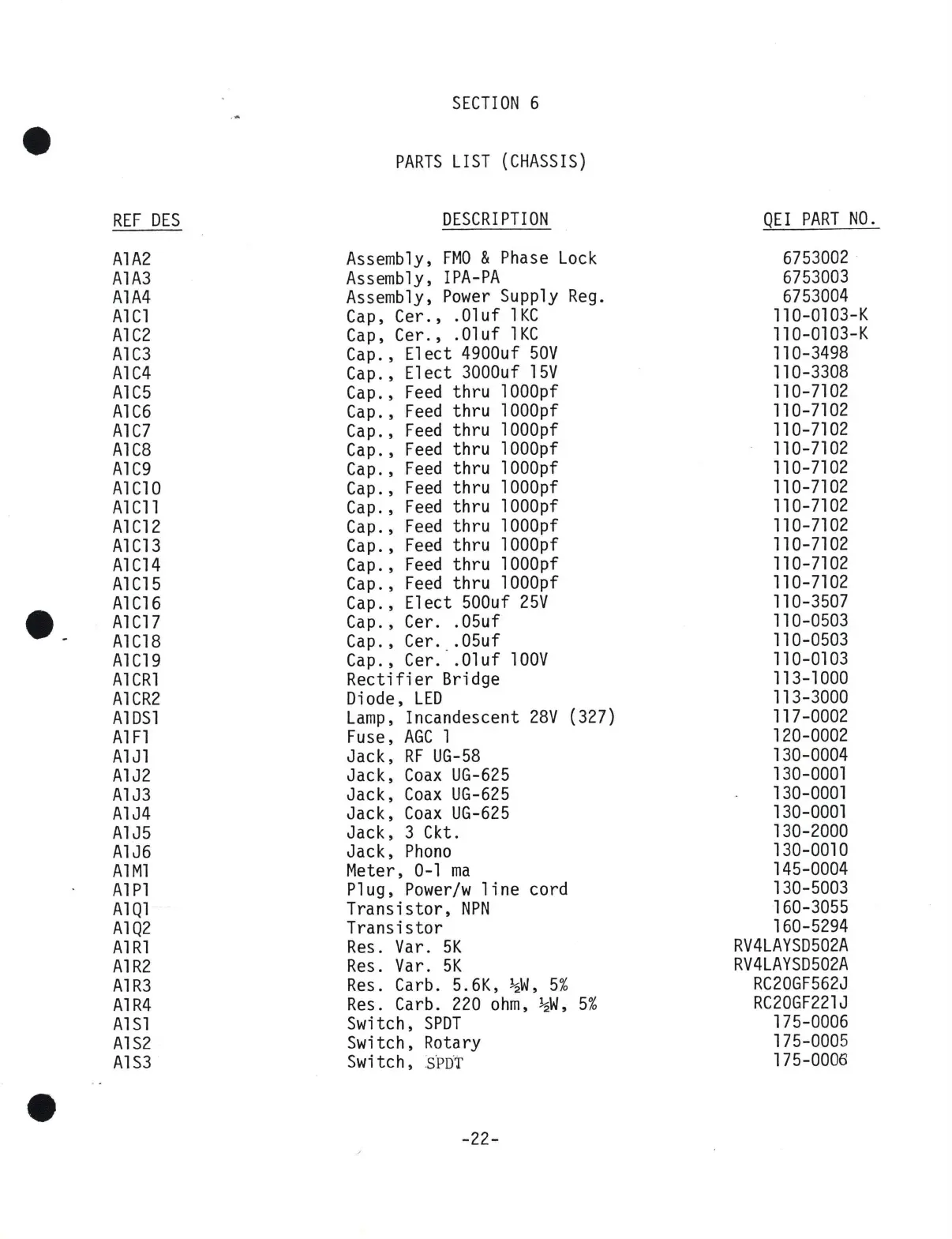

SECTION 6
PARTS LIST (CHASSIS)
REF DES
DESCRIPTION QEI PART NO.
A1A2
Assembly,
FMO & Phase Lock
6753002 ·
A1A3
Assembly,
IPA-PA
6753003
A1A4
Assembly, Power Supply Reg. 6753004
AlCl
Cap, Cer., .Oluf lKC 110-0103-K
AlC2
Cap, Cer., .Oluf lKC 110-0103-K
AlC3
Cap., Elect 4900uf 50V 110-3498
AlC4
Cap., Elect 3000uf 15V
110-3308
A1C5
Cap., Feed thru lOOOpf
110-7102
AlC6
Cap., Feed thru lOOOpf
110-7102
AlC7
Cap., Feed thru lOOOpf
110-7102
AlC8
Cap., Feed thru lOOOpf
110-7102
A1C9
Cap., Feed thru lOOOpf
110-7102
AlClO
Cap., Feed thru lOOOpf
110-7102
AlCll
Cap.,
Feed thru lOOOpf
110-7102
AlC12
Cap., Feed thru lOOOpf
110-7102
A1Cl3
Cap., Feed thru lOOOpf
110-7102
AlC14
Cap., Feed thru lOOOpf
110-7102
AlC15
Cap., Feed thru lOOOpf
110-7102
AlC16
Cap., Elect 500uf 25V
110-3507
--
A1Cl7
Cap., Cer .. 05uf
110-0503
A1Cl8
Cap., Cer. _ .05uf
110-0503
AlC19
Cap., Cer .. Oluf lOOV
110-0103
Al CRl
Rectifier Bridge
113-1000
AlCR2
Di ode, LED
113-3000
AlDSl
Lamp, Incandescent 28V
(327)
117-0002
A 1 Fl
Fuse, AGC 1
120-0002
AlJl
Jack,
RF UG-58
130-0004
A1J2
Jack, Coax UG-625
130-0001
AlJ3
Jack,
Coax UG-625
130-0001
AlJ4
Jack,
Coax UG-625
130-0001
AlJ5
Jack, 3 Ckt.
130-2000
AlJ6
Jack,
Phono
130-0010
Al Ml
Meter, 0-1 ma
145-0004
A 1
Pl
Plug, Power/w line cord
130-5003
AlQl
Transistor, NPN
160-3055
A1Q2
Transistor
160-5294
A 1
Rl
Res. Var. 5K
RV4LAYSD502A
AlR2
Res. Var. 5K
RV4LAYSD502A
AlR3
Res. Carb. 5.6K, ½W, 5%
RC20GF562J
AlR4
Res. Carb. 220 ohm, ½W, 5%
RC20GF221J
AlSl
Switch, SPOT
175-0006
AlS2
Switch, Rotary
175-0005
AlS3
Switch, SPDt
175-0006
-
