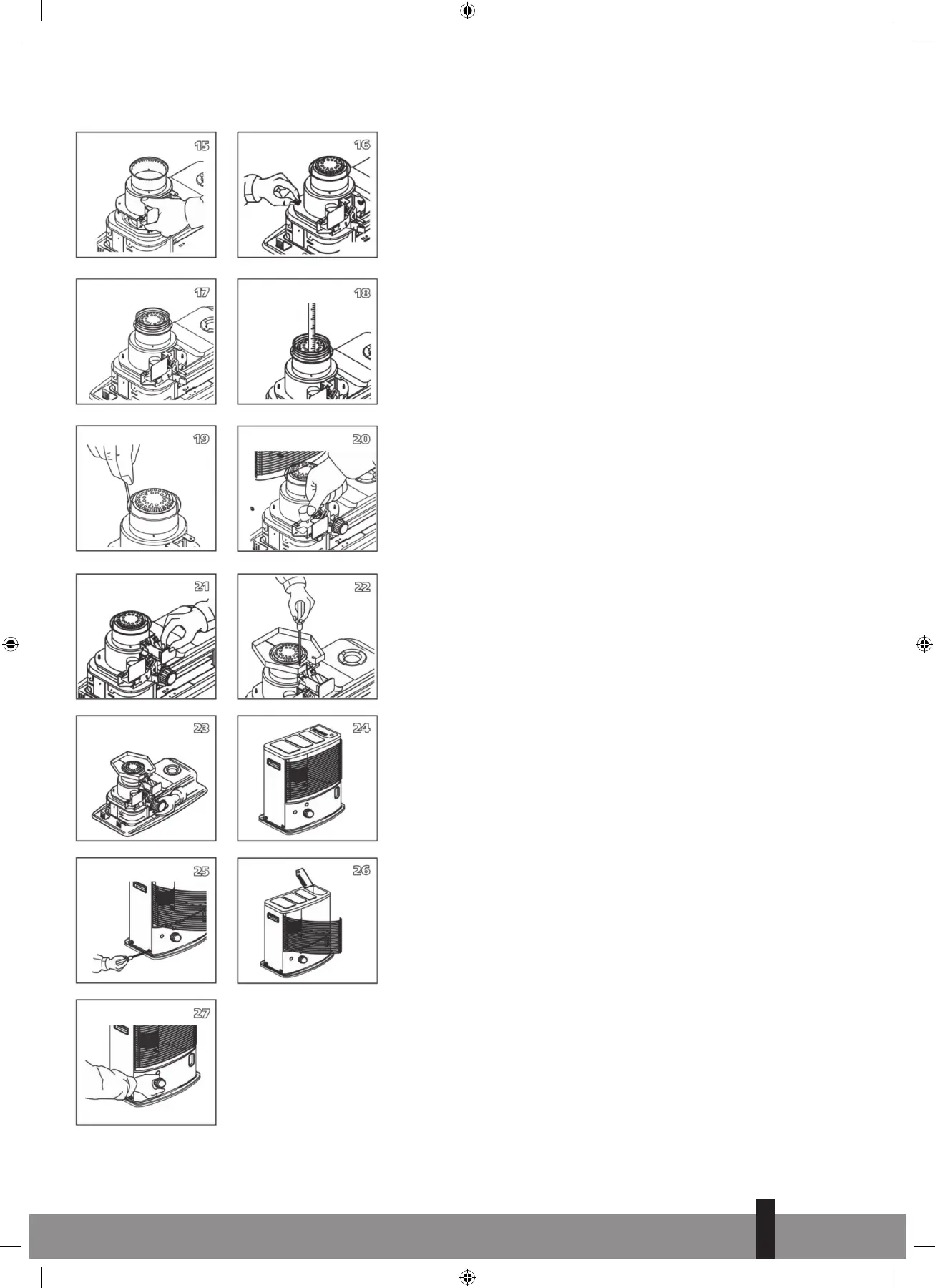

15. Slide the wick adjuster assembly down the draft tube.
Position the adjuster shaft to the front of the heater.
16. Snug 4 wing nuts on the mounting stud, but do not
tighthen them.
17. Raise the wick to its highest position and tighten the
wing nuts in several steps.
18. Check the wick height. It should be 5/16'' above the
collar.
19. Check for the correct clearance between wick holder
and draft tube. It should be the same all around.
20. Check the function of the tip-over safety stop by push-
ing the extinguish button to upset the pendulum.
21. Reinstall the automatic ignition assembly.
22. Reinstall the wind cover.
23. Remove the wick adjusting knob once again, if it was
reinstalled before.
24. Reinstall the cabinet.
25. Tighten the 5 screws on the cabinet.
26. Reinstall the combustion chamber and the fuel tank.
27. Reinstall the wick adjusting knob. Close the front plate.
Install the batteries in the battery case and fill the fuel
tank with Qlima Premium Quality Fuels. Set the tank
into the heater and wait at least 60 minutes for the
new wick to fully saturate with the fuel.
