Qmark MUH Series User Manual

7
Key No. Description Part Number
1 Thermostat, One Pole (MT-1) 5813-0036-000
Thermostat, Two Stage (MT-2) 5813-0035-000
2 Knob, Thermostat 3301-0060-000
3 Label, Thermostat 3502-1781-000
4 Screws, Fl. Hd., 6-32 x 1/4 5202-7009-021
5 Clip, Thermostat 1403-0041-000
6 Switch, 25A, OEM 5216-0132-000
Switch, 25A, K & N 5216-0204-000
Switch, 63A, OEM 5216-0131-000
Switch, 63A, K & N 5216-0203-000
Switch 25A, Electro 5216-0200-000
7 Screw, M4 x 10, Rd. Hd., (25A) —
Screw, 63A, M5 x 16, Rd. Hd. —
8 Knob, 25A, OEM “T1” OEM “T1”
Knob, 25A, K & N K & N S1B 6001
K
nob, 63A, OEM OEM “S4”
K
nob, 63A, K & N K & N S2B G001
K
nob, Electro EI 141747
9
Switch, Toggle, 600V 5216-0130-000
10 Relay, Fan, 24V Coil 5018-0008-000
11 Switch Assembly 5216-0199-000
12 Manual Reset Limit 4520-0012-000
K
ey No. Description Part Number
1
Spring, Element (used on MUH03 thru MUH-20 only) 5208-0073-000
S
pring, Element (used on MUH-25 thru MUH-50 only) 5208-0073-001
2
Spring, Capillary Tube 5208-0072-000
3
Spring, Element Retainer 5208-0074-000
4
Switch (used on MUH-25 thru MUH-50 only) 5216-7076-001
5
Insulator (used on MUH-25 thru MUH-50 only) 2900-0031-000
6
Bracket Extension
(used on MUH-15, MUH-20, MUH-40 and MUH-50 only) 1215-0282-000
7 Switch Bracket 1215-0256-000
8 Fan Delay 4520-0010-000
14 Speed Nut 4100-7036-026
15 Bracket, Captive Screw (used on MUH-03 thru MUH-20 only) 1215-0291-000
Bracket, Captive Screw (used on MUH-25 thru MUH-50 only) 1215-0289-000
17 Protector, Linear Limit (used on MUH03 thru MUH05 only) 4520-0011-000
Protector, Linear Limit (used on MUH-07 thru MUH-20 only) 4520-0011-001
Protector, Linear Limit (used on MUH-25 thru MUH-50 only) 4520-0011-002
20 Clamp (used on MUH-20 thru MUH-50 only) 1417-5004-000
Bracket, Mounting Capacitor (used on MUH-20-8 only) 1215-0314-000
22 Terminal Lug (used on MUH-07 thru MUH-50 only) 3504-7002-001
25 Bushing (used on MUH-20 thru MUH-50 only) 25221-60131
26 Washer, Ground (used on MUH03 thru MUH05 only) 6401-0084-000
27 Screw, Ground (used on MUH03 thru MUH05 only) 5202-0290-002
28 Louver (used on MUH03 thru MUH05 only) 3503-0036-000
Louver (used on MUH-07 thru MUH-20 only) 3503-0036-001
Louver (used on MUH-25 thru MUH-50 only) 3503-0036-002
29 Spring, Louver 5208-7005-001
32 Terminal Block, 3-Phase (used on MUH05-21,
MUH-07-02,and MUH-10-2 only) 5823-0003-000
Terminal Block, 3-Phase (used on MUH05-81,
MUH-07-8, and MUH-15-8 only) 5823-0003-000
33 Terminal Doublers (used where required) 5819-7012-005
2
4
3
1
5
9
7
12
11
9
10
8
6
MUH
Built-in Controls
SINGLE-POLE
THERMOSTAT, TWO-STAGE
THERMOSTAT, HEAT
RECOVERY THERMOSTAT
POWER
DISCONNECT
SWITCH
SUMMER
FAN
SWITCH

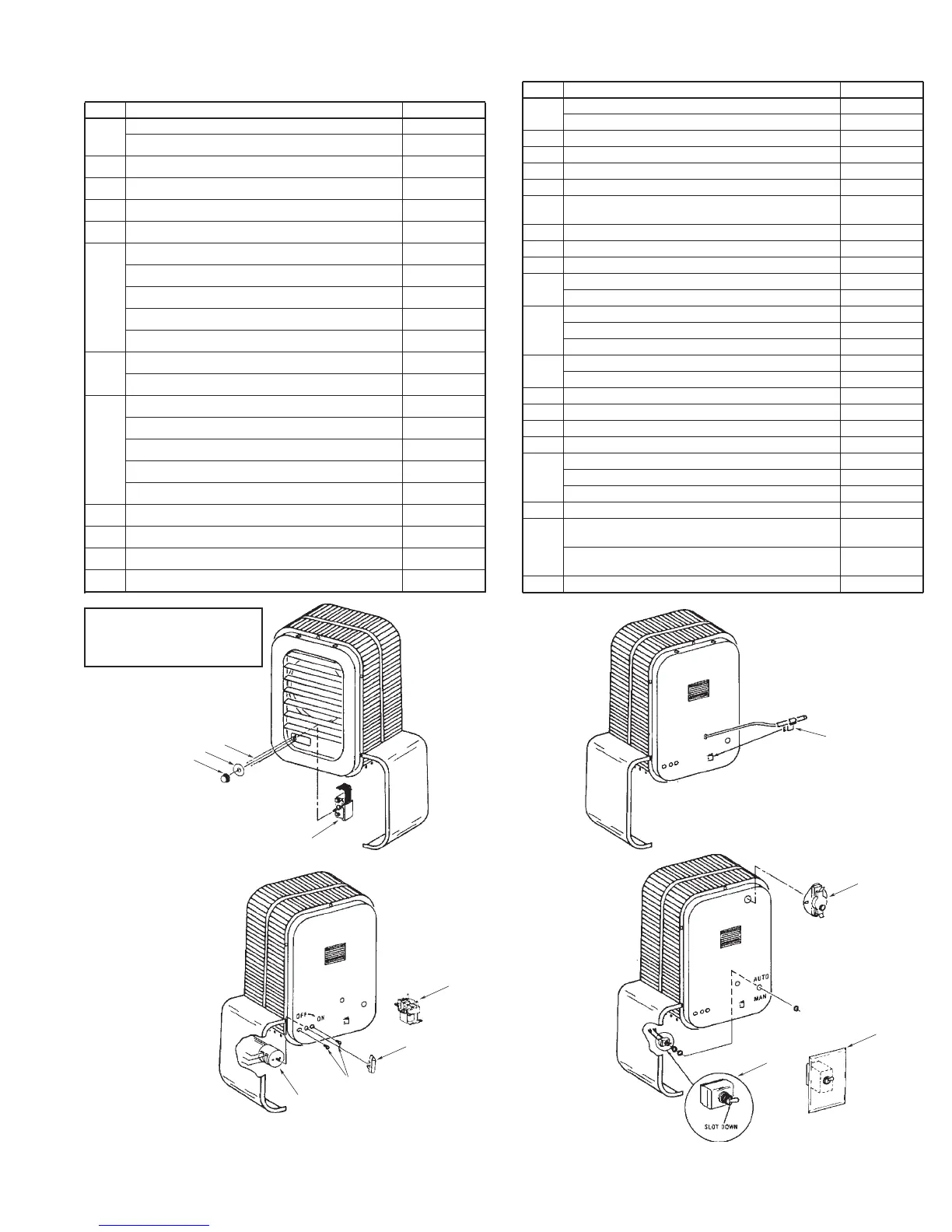

Heater Replacement Parts
7
BUILT-IN CONTROLS —
Made-to-Order Units Only

Qmark MUH Series Specifications

General

Type	Unit Heater
Voltage	120V, 208V, 240V, 277V, 480V
Wattage	1000-5000W
Control	Built-in Thermostat
Phase	1
BTU	17060 BTU/h
