QSC MP-M Quick Start Guide

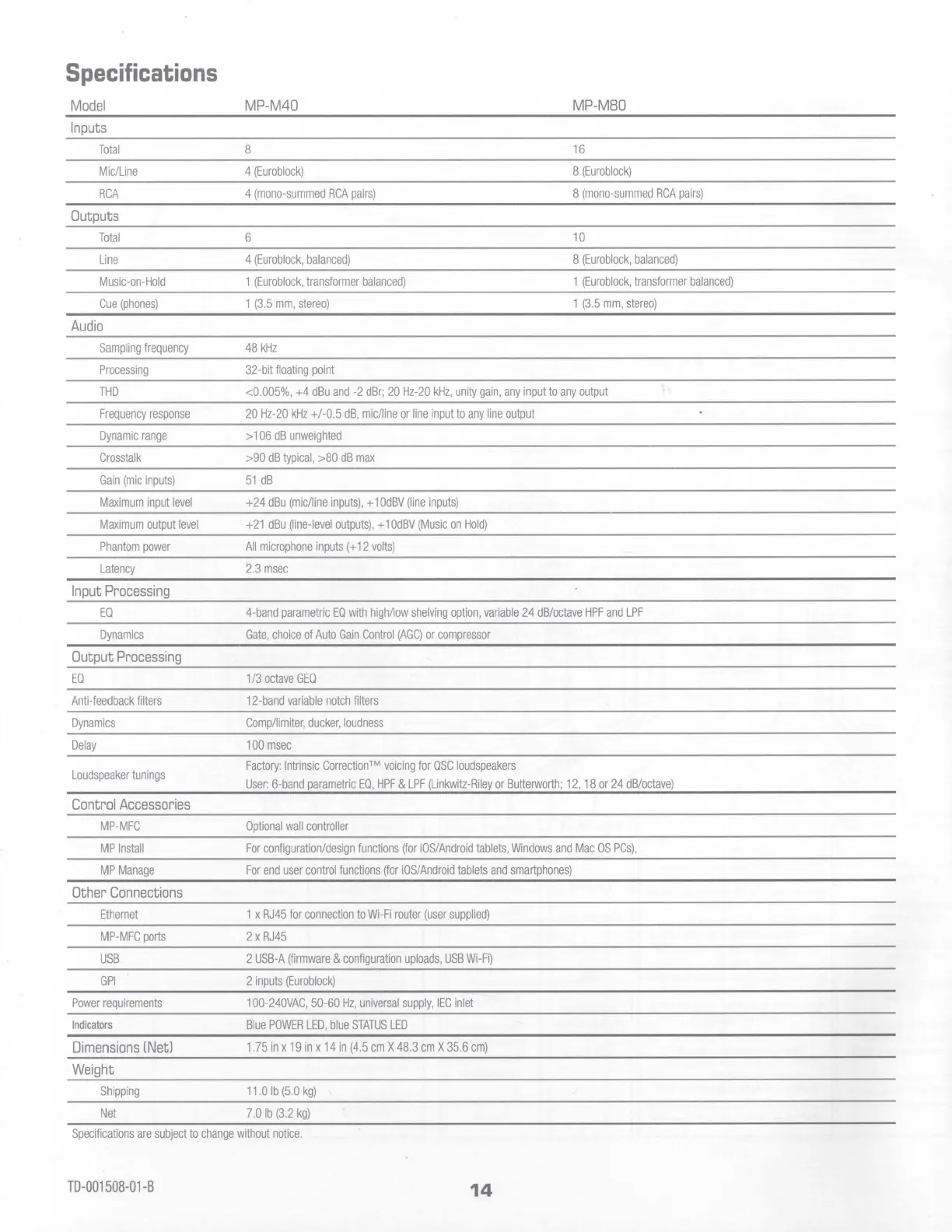

Specifications
Model
MP-M4O
MP-MB □
Inputs
Total 8
16
Mic/Line
4 (Euroblock) 8 (Euroblock)
RCA
4 (mono-summed RCA pairs) 8 (mono-summed RCA pairs)
Outputs
Total 6 10
Line
4 (Euroblock, balanced)
8 (Euroblock, balanced)
Music-on-Hold 1 (Euroblock, transformer balanced)
1 (Euroblock, transformer balanced)
Cue (phones) 1 (3.5 mm, stereo)
1 (3.5 mm, stereo)
Audio
Sampling frequency
48 kHz
Processing 32-bit floating point
THO
<0.005%, +4 dBu and -2 dBr; 20 Hz-20 kHz, unity gain, any input to any output
Frequency response 20 Hz-20 kHz +/-0.5 dB, mic/line or line input to any line output
Dynamic range > 106 dB unweighted
Crosstalk >90 dB typical, >80 dB max
Gain (mic inputs) 51 dB
Maximum input level +24 dBu (mic/line inputs),+ 1 OdBV (line inputs)
Maximum output level +21 dBu (line-level outputs), + 1 OdBV (Music on Hold)
Phantom power All microphone inputs (+ 12 volts)
Latency
2.3 msec
Input Processing
EQ
4-band parametric EQ with high/low shelving option, variable 24 dB/octave HPF and LPF
Dynamics Gate, choice of Auto Gain Control (AGC) or compressor
Output Processing
EQ 1 /3 octave GEO
Anti-feedback filters 12-band variable notch filters
Dynamics Comp/limiter, ducker, loudness
Delay 100 msec
Loudspeaker tunings
Factory: Intrinsic Correction™ voicing for QSC loudspeakers
User: 6-band parametric EQ, HPF & LPF (Linkwitz-Riley or Butterworth; 12, 18 or 24 dB/octave)
Control Accessories
MP-MFC
Optional wall controller
MP Install
For configuration/design functions (for iOS/Android tablets, Windows and Mac OS PCs),
MP Manage For end user control functions (for iOS/Android tablets and smartphones)
Other Connections
Ethernet
1 x RJ45 for connection to Wi-Fi router (user supplied)
MP-MFC ports
2 x RJ45
USB
2 USB-A (firmware & configuration uploads, USB Wi-Fi)
GPI 2 inputs (Euroblock)
Power requirements
100-240VAC, 50-60 Hz, universal supply, IEC inlet
Indicators
Blue POWER LED, blue STATUS LED
Dimensions (Netl
1. 75 in x 19 in x 14 in (4.5 cm X 48.3 cm X 35.6 cm)
Weight
Shipping 11.0 lb (5.0 kg)
Net
7.0 lb (3.2 kg)
Specifications are subject to change without notice.
TD-001508-01-B
14
