QU-AX Only One - Page 4

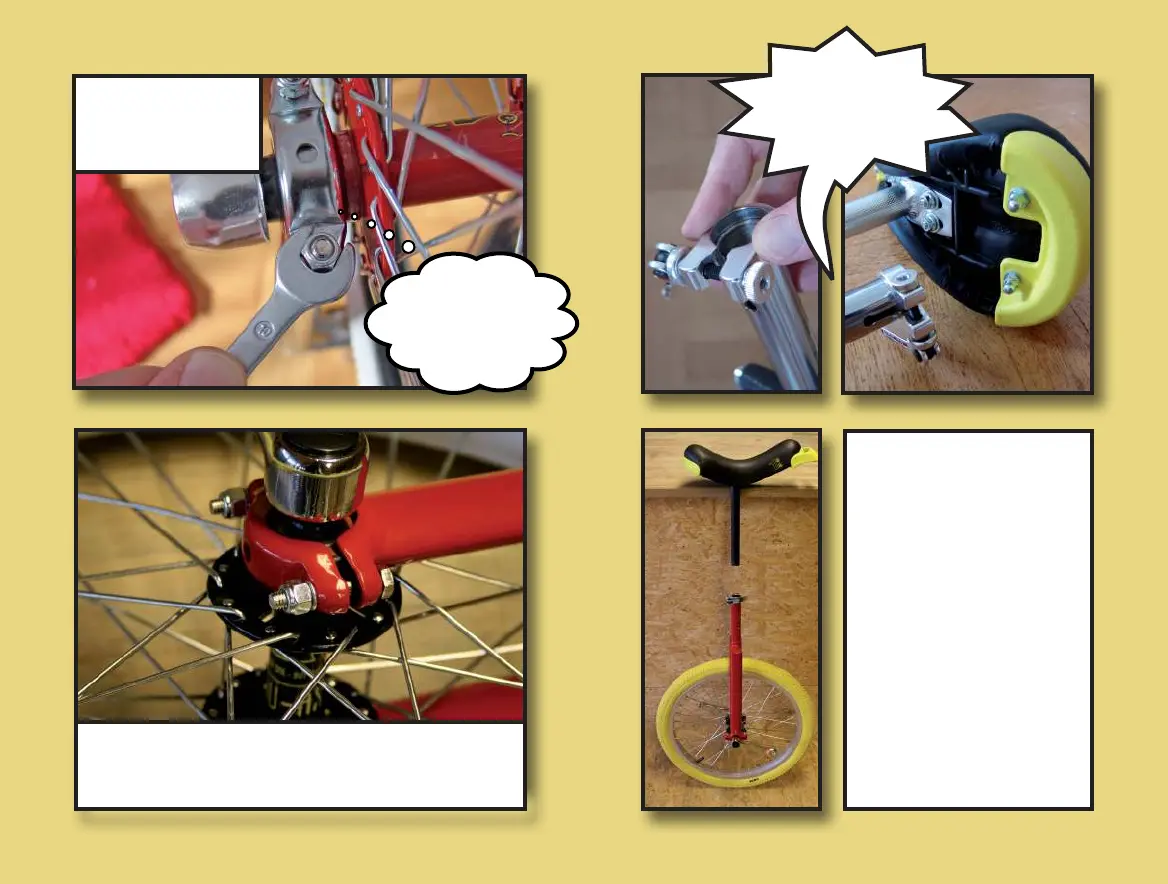

Tighten both screws evenly so that dis-
tance between frame & cupholder is the
same on both sides. But not too tight!
tighten to fix
the wheel -
it should still
turn easily
tighten in
the same way
on both sides
with 10 mm
wrench
top: slot should be
on the same side as
rear bumper.
left: once again,
make sure the seat-
clamp is opened,
then, put the tube in
the frame.
Check that the handle
faces forwards, as
in this picture, the
crank in the fore-
ground is the right
side.
Put
seatclamp
on frame with
slot matching
the frame
slot.
