QUAD 11L User Manual

CONNECTING THE LOUDSPEAKERS
Bi-Wiring
Note: This provides an alternative to standard single-wire connections for improved overall soind quality.
Most of the audio signal going to the speakers drives the bass units. Where one cable feeds both bass and treble units, this heavy
bass current can modulate the high frequencies. Using separate cables for treble and bass units reduces intermodulation effects and
improves headroom and clarity. This technique of wiring is known as Bi-Wiring. To bi-wire, you will need to install two lengths of
twin core cable between the amplier and each loudspeaker.
Unscrew each terminal a few turns and remove the metal straps. The upper pair of terminals on the crossover panel feeds the treble
units and the lower terminals feed the bass unit.

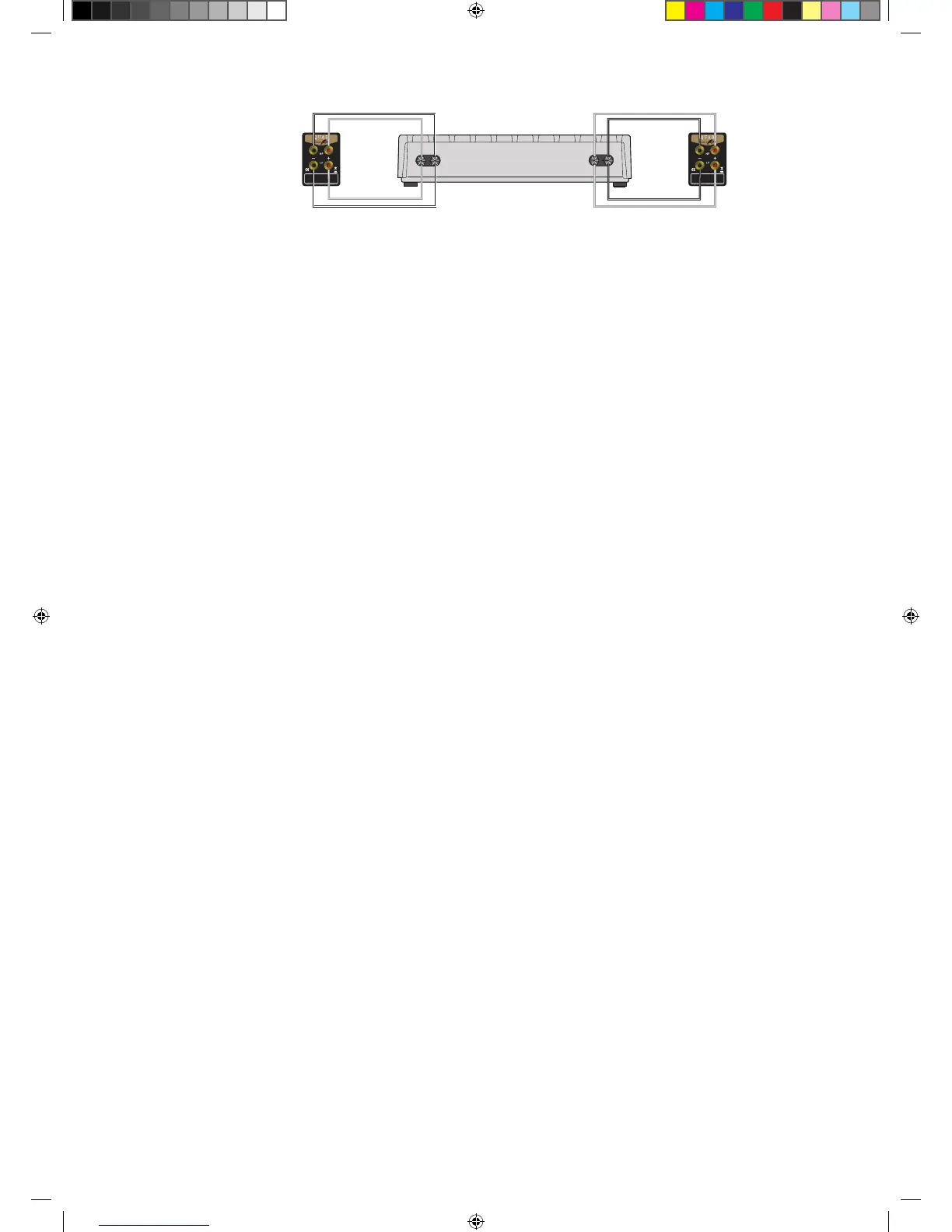

Connect the cables between the amplier and the loudspeakers as indicated above and retighten all the terminals securely.
Where feasible, we strongly advocate bi-wiring.
Bi-Amplifying (Bi-Amping)
By connecting each loudspeaker drive unit to its own dedicated amplier the advantages of Bi-Wiring can be extended. If you own
two identical stereo power ampliers, you may wish to try bi-amping your QUAD loudspeakers. For further details please consult
your dealer.
GETTING THE BEST FROM YOUR LOUDSPEAKERS
Phase
If the sound lacks denition or the bass is indistinct, this could be because you have inadvertently misconnected your loudspeakers.
Please check the wiring to both loudspeakers carefully, especially if they are bi-wired.
Ancillary Equipment
QUAD loudspeakers are compatible with the great majority of audio-visual and high delity equipment. Your amplier should have
ample reserves of power - a low powered amplier can run out of steam quite easily and the resulting distortion is unpleasant to
listen to and could damage your speakers. A larger amplier will usually sound better and enhance the reliability and performance of
your loudspeakers.
Running In
Loudspeakers are electro-mechanical and, like all mechanical systems, they need a 'running in' period. For the rst 50 hours or so
exercise care and play your system at reasonable volume levels. After running in, you will notice a signicant sonic improvement.
Care and Maintenance
Little maintenance is required. The cabinets can be occasionally wiped with a damp (not wet) cloth. Spray polish, if used, should be
applied sparingly - spray the polish onto a cloth and then apply it to the speaker. NEVER spray at the grille cloth or the speaker drive
units. To clean the grilles, remove them rst before gently brushing with a soft brush. Never use solvent cleaners, minor stains are
best removed with soap and lukewarm water.
Avoid touching the drive units as they can easily be damaged.
SERVICE & INFORMATION
Product service enquiries should instantly be referred to the supplying dealer. If you need to return your loudspeakers for servicing,
please return them as a pa ir even if only one unit appears to be faulty. For safety, we recommend that they be shipped in their
original packing.
In cases of difculty or for other product enquiries, please contact the appointed QUAD distributor for your country. Service Centre
in the UK can be found below.
IAG Service Centre, Unit 4, St Margaret’s Way, Stukeley Meadows Industrial Estate, Huntingdon, Cambs, PE29 6EB, England. Tel:
+44 (0) 1480 45256, Fax: +44 (0) 480 413403
For information on authorised service centres worldwide, contact QUAD Electroacoustics Ltd.
A worldwide distributor list is available on the QUAD website: www.quad-hi.co.uk
SPECIFICATIONS
General Description
Enclosure Type
Bass/Mid Driver
Treble Driver
Magnetic Shielding
Crossover Frequency
Frequency Response (±3dB)
Sensitivity (2.83V@1m)
2-way bookshelf speaker
Bass reex
125mm woven Kevlar cone
25mm fabric dome
No
2.2kHz
48Hz-22kHz
87dB
Recommended Amplier Power
Nominal Impedance
Minimum Impedance
Size (H×W×D)
Net Weight
Standard Accessories
30-150W
6 Ohms
4 Ohms
310 × 190 × 263 (mm)
6.3kg each
rubber feet, user manual,
certicate, gloves
The name QUAD is a registered trademark of International Audio Group Limited.
QUAD has a policy of continuous product development and reserves the right to chang speccaition with notice.
Designed and Engineered by Quad Electroacoustics Ltd. CODE: QH12-MNL004a
R
OUTPUT
L
OUTPUT
d
E
Right
Speaker
Left
Speaker
11L Classic Signature.indd 2 2012-3-22 10:30:32

QUAD 11L Specifications

General

Type	2-way bass reflex
Frequency Response	45Hz - 24kHz
Impedance	6 Ohms
Sensitivity	86dB
Weight	6 kg
Tweeter	25mm soft dome
Crossover Frequency	2.2kHz
Woofer	125mm
