Quadratec QRC - Parts, Tools, and Installation Preparation; Component Identification

3
HARDWARE LIST: Packet 12057.0293
A.) M14 Nut Plate QTY 1
B.) M14-1.50 x 40 Hex Head Bolt QTY 2
C.) M14 Lock Washer QTY 2
D.) M14 Flat Washer QTY 2
E.) 6-1.00 x 20 Button
Head Socket Cap Screw QTY 6
F.) M6 Flat Washer QTY 6
G.) M6 Nylon Insert Locknut QTY 6
REQUIRED TOOLS:
Safety Glasses
16, 19, 21 & 22mm Sockets
Extension & Ratchet
8mm Sockets & Ratchet
10mm Box End Wrench
4mm Allen Hex Key Wrench
Flat Blade Screwdrivers
Forked Clip/Trim Removal Tool
Torque Wrench (ft lbs)
DBCG

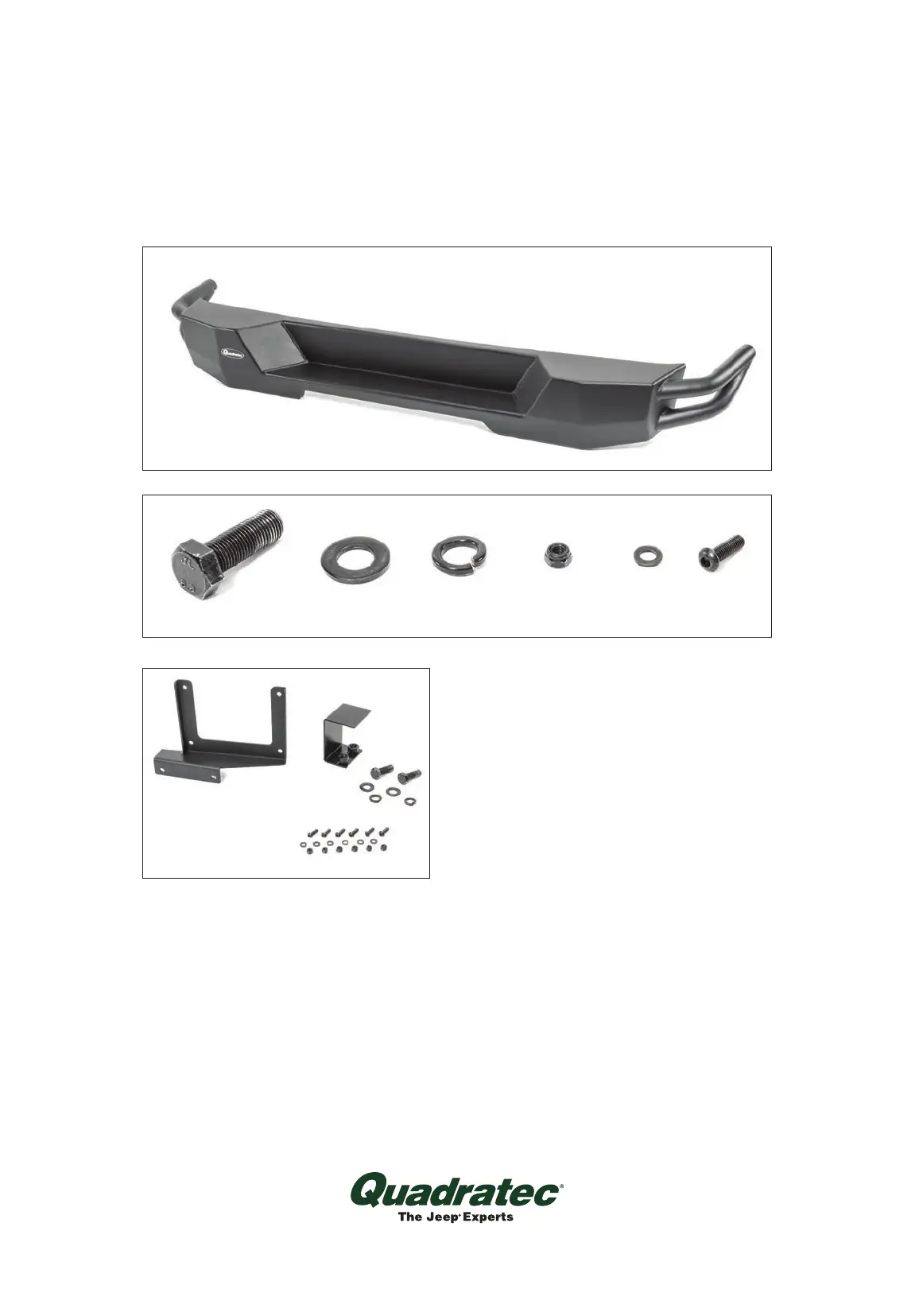

Quadratec QRC Rear Bumper Parts & Hardware:
BUMPER PARTS LIST:
1) Rear Bumper QTY 1
2) License Plate Mount QTY 1
1
Rear Bumper Shown
FE
2
A
