Speaker Connections RCA Connections
When utilizing the dual amplifier configuration it is important to note that the connected speaker
load can be no lower than 2 ohms. Connecting a lower impedance load can damage the amplifier
and void your warranty
Caution

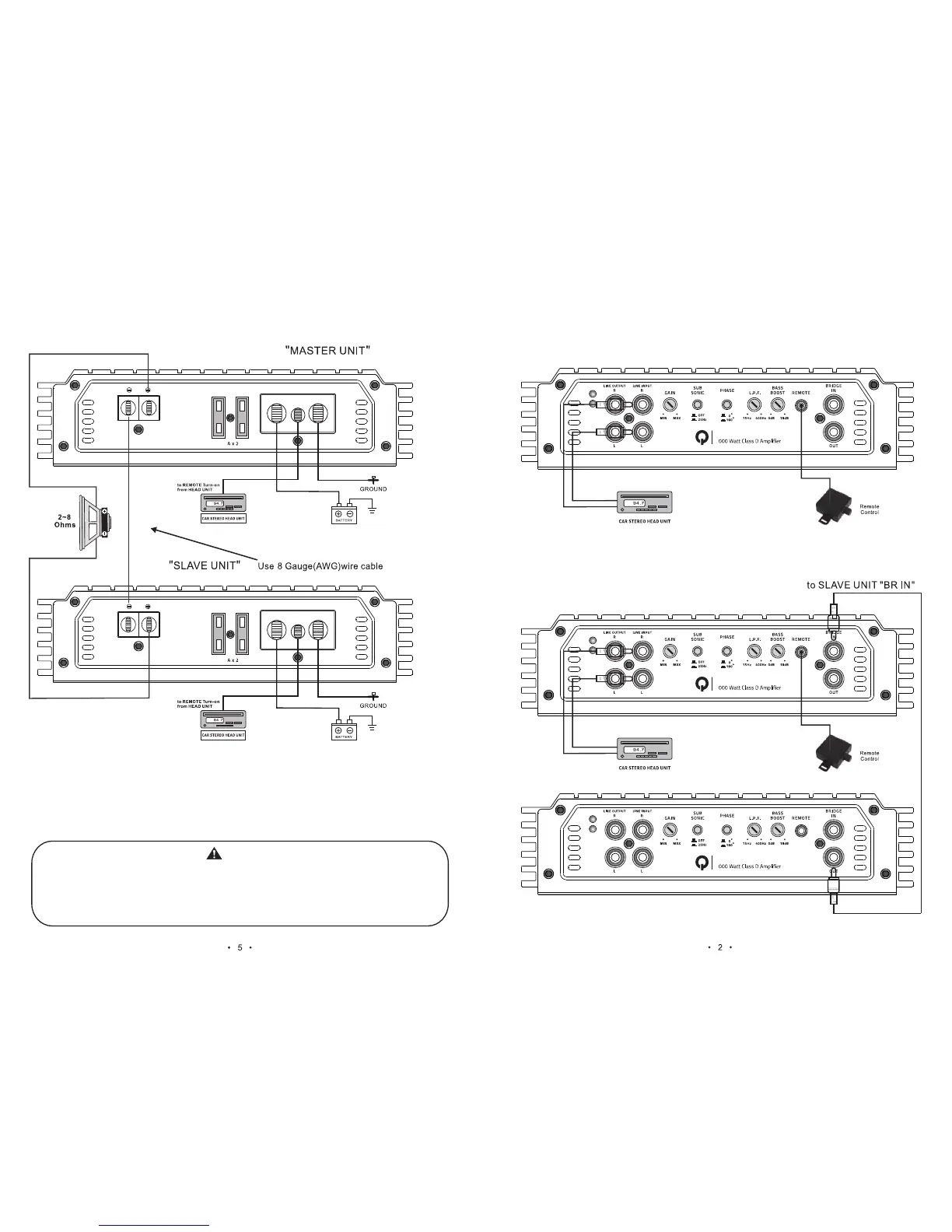

Dual Amp Power and Speaker Connection
Using a dual amplifier configuration, the MASTER amplifier has total control over the SLAVE amplifier.
When using dual amplifier to operate subwoofer, the positive terminal of the subwoofer`s voice coil
must be connected to the positive terminal of the MASTER amplifier and the negative terminal of the
subwoofer`s voice coil must be connected to positive terminal of the SLAVE amplifier.
Be advised that the dual amplifier configuration has tremendous output potential, so ensure that
your subwoofers can handle such a large amount o
f power.
Single Amp lnput Connection
Dual Amp lnput Connection (MASTER & SLAVE RCA Connection)
