USE OF THE QS53E DVD / GAME COMPOSITE VIDEO LOOP TROUGH CIRCUIT
The QS53E model is equipped with a video modulator that allows you to hook up one composite
video cable (Yellow, Red, White), to the back of the unit and play it through any of the attached
TV locations on ch3 or ch4, depending on which LED is lit on the front of the unit in the section
marked “MODULATOR”. This allows you to hook up a DVD player, game system or any source
with composite video (Yellow, Red, White) connections. Here is an example of use of the modula-
tor with a DVD player.

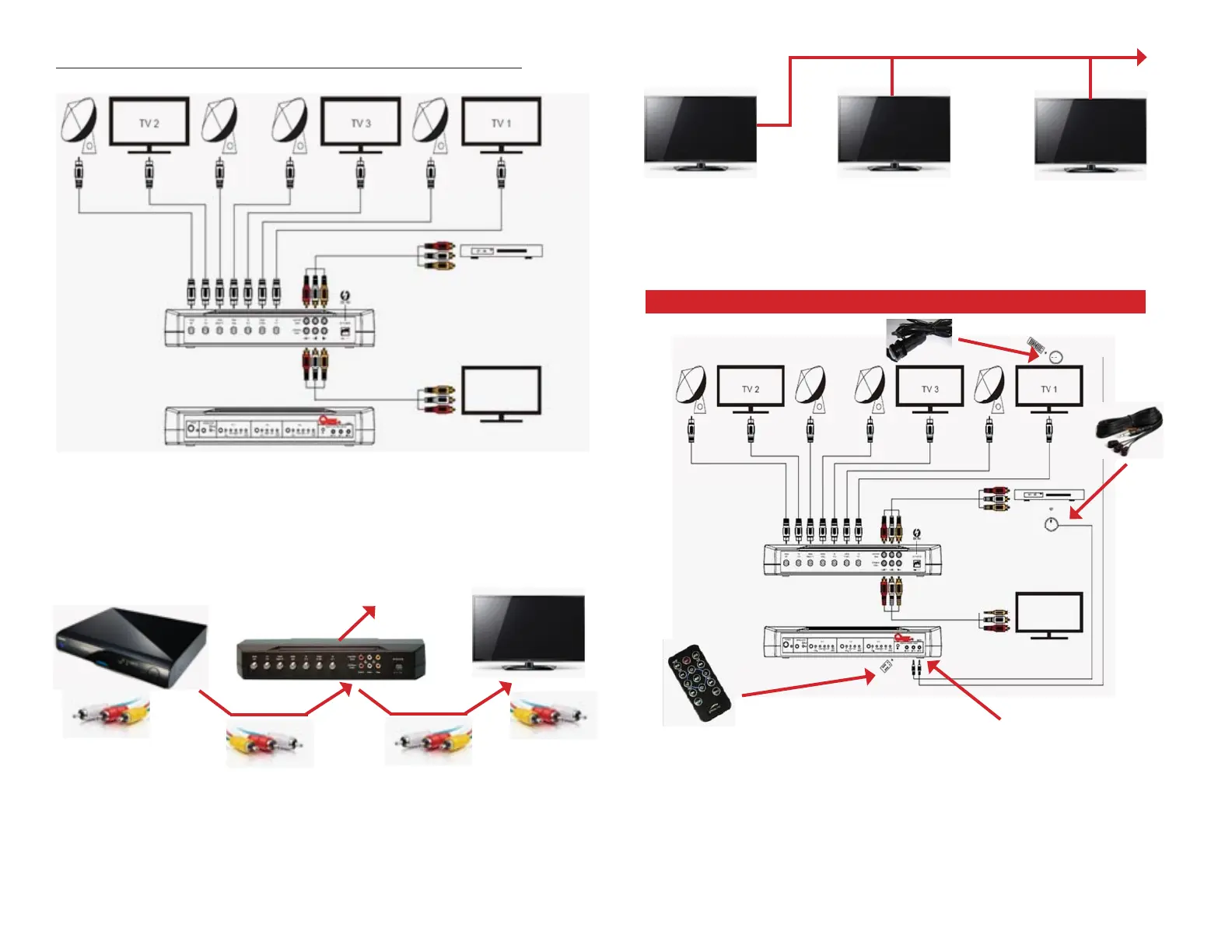

Take the composite video cable from the back of the DVD player and run to the “Video Input” on
the back of the QS53E unit. Then run a composite video cable from the back of the QS53E unit
from the “Video Output” to the “Video Input” on the back of the TV. Now you have created a loop
that will take the video signal from the device hooked up to the QS53E “Video Input” and feed it to
a receiver for audio or to the TV directly.
Coax Cable
To TV’s
TV1
For TV1, TV2 or TV3 the signal from the DVD player will be sent to the TV by way of the
internal modulator. If the LED indicator on the front of the QS53E shows “CH 3” then you
simply select DVD/GAME for that TV location and tune the TV to channel “3” and you will
now be watching the DVD/GAME source on that TV location.
** OPTIONAL REMOTE CONTROL CAPABILITY (IR components sold separately)
Using Remote & IR TX/RX Kit
Connect an • IR BULLET (2) (not included in the package) for IR signal transmis-
sion. Place the IR EYE (1) in direct line-of-sight of the equipment to be controlled.
Connect to the • IR RX port on the QS53E, with IR EYE (1) cable (not included in the
package) for IR signal reception. Make sure that the remote being used is in direct
line-of-sight of the IR receiver. Now you can control the source device with the source
remote through the IR BULLET (2).
TV1
TV2
TV3
Coaxial Cable to QS53E Video Switch Box
QS53E
Optional
Remote
(3)
RX & TX
IR Ports
Optional
IR EYE
(1)
Optional
IR Bullet
(2)
DVD
