BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C
BOW THRUSTERS

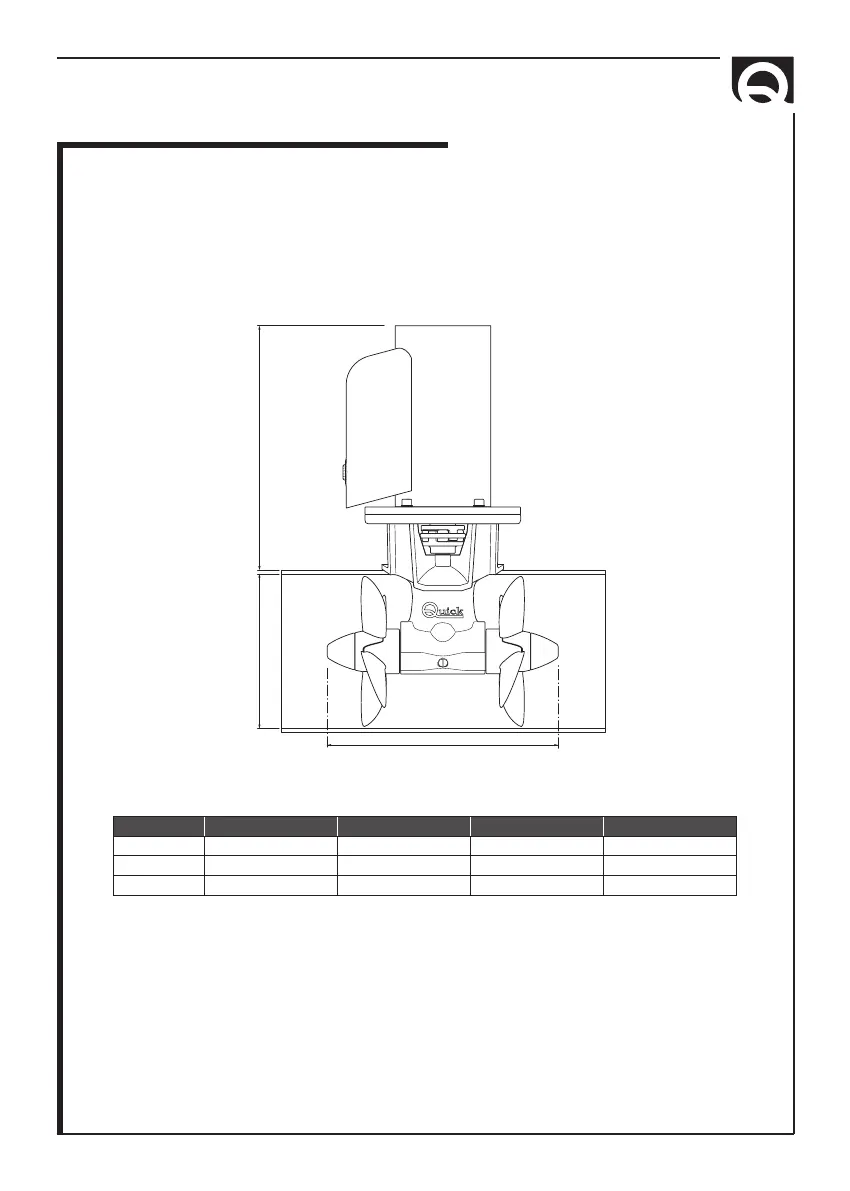

DIMENSIONI / DIMENSIONS mm (inch)
A
B
C
BTQ250
BTQ250 BTQ2512012 BTQ2512024 BTQ2514024 BTQ2524024
A 390 (15 11/32) 390 (15 11/32) 394 (15 3/64) 471 (18 1/2)
B 250 (9” 27/32) 250 (9” 27/32) 250 (9” 27/32) 250 (9” 27/32)
C 373 (14” 11/16) 373 (14” 11/16) 373 (14” 11/16) 373 (14” 11/16)
