BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C

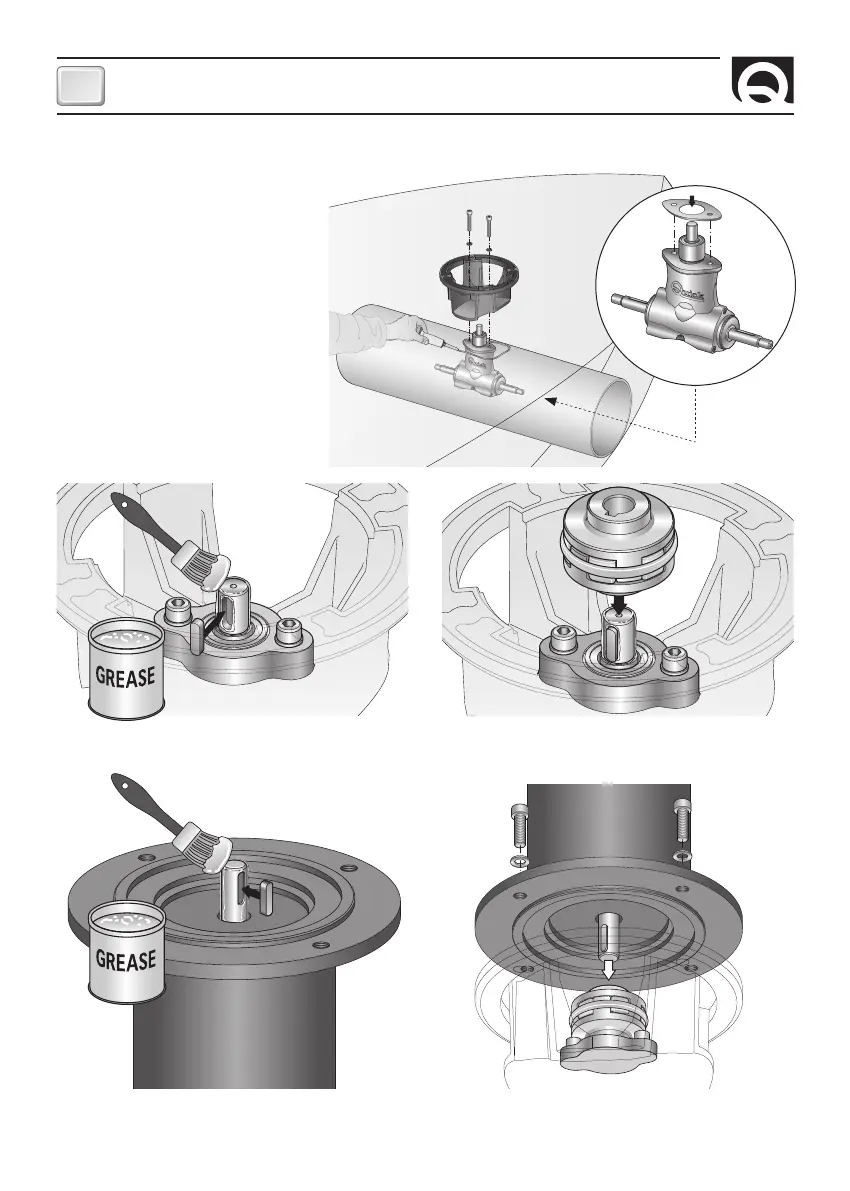

GEARLEG AND MOTOR SUPPORT FLANGE
SILICONE
• Grease the terminal part of the gearleg shaft; fit the small
key into its seat.
• Insert the elastic joint in the terminal part of the gearleg
shaft.
• Insert the motor onto the elastic joint; fasten it with the 4
screws and washers provided.
• Grease the terminal part of the gearleg shaft; fit the small
key into its seat.
• Proceed with fitting the gearleg with the
special seal gasket.
• For further protection against the entry
of water, apply silicone for nautical use
around the point of contact between flange
and tube.
• Fasten everything to the flange using the
special screws and washers.
INSTALLATION
