.....The second block is prepared identically, except the fourth side

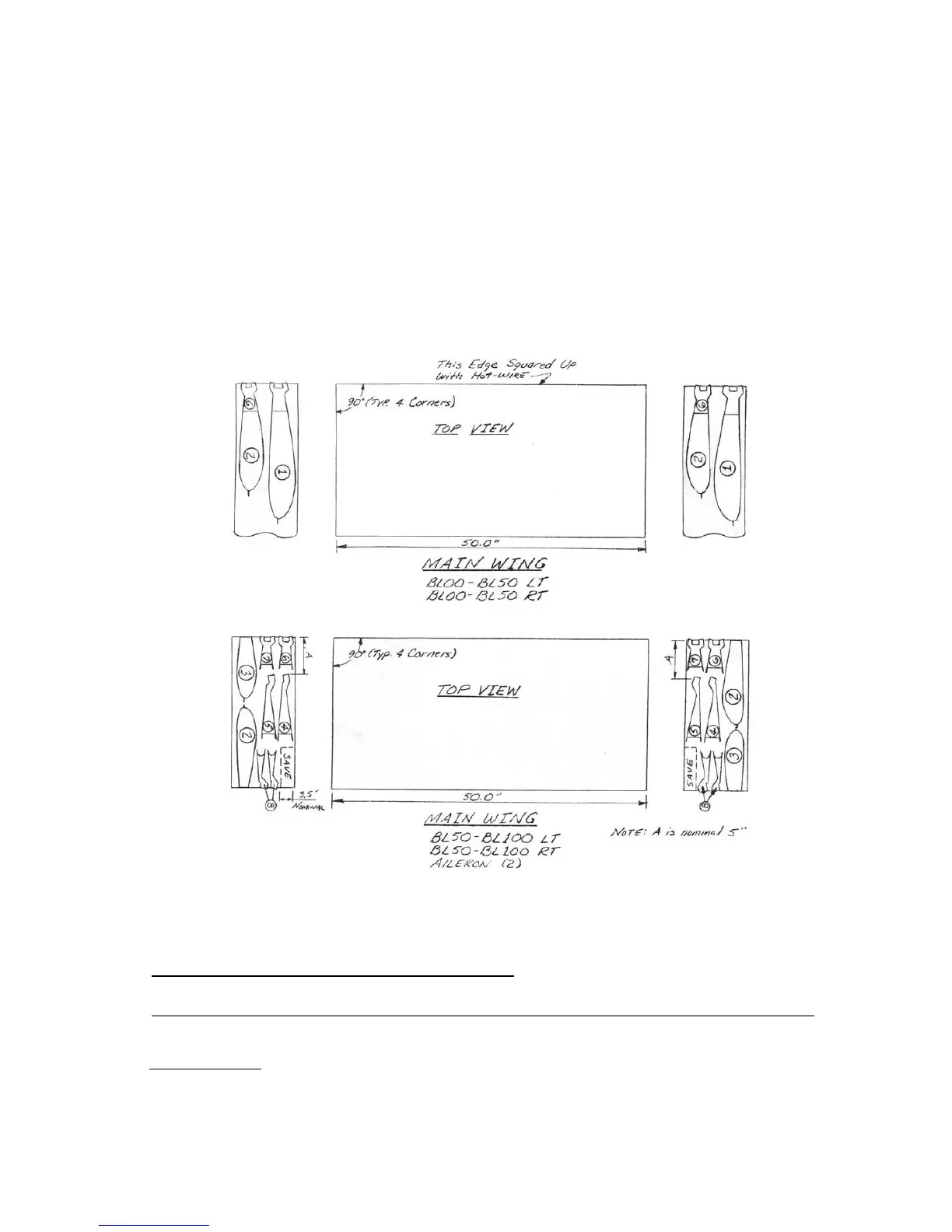

along the 5011 edge needs to be squared up also. Follow the layout

sketch to obtain the appropriate cores. Be sure that templates 2 and 3

can face each other without running out of width on the block.

.....The trailing edge of each template, unless otherwise indicated,

must be lined up with the edge of the polystyrene foam. This gives the

core the proper geometry for assembly into the main wing female jigging

templates.

.....The aileron cores must be trimmed on either end after hot-wiring to

48" length. Both the Trailing Edge Foam Cores and the Aileron Slot Foam

Cores (outboard) are cut considerably oversized, and will be trimmed to

the proper length during installation.

PAGE 5-1

Q2 Plans - Chapter 5 - Page 5-02

CANARD CORES

..... The outboard and inboard canard cores are cut from skewed,

parallelogram style blocks, with the exception of the canard center
