pulley combination again.
.....All pullies must have cable guards to prevent the cable form

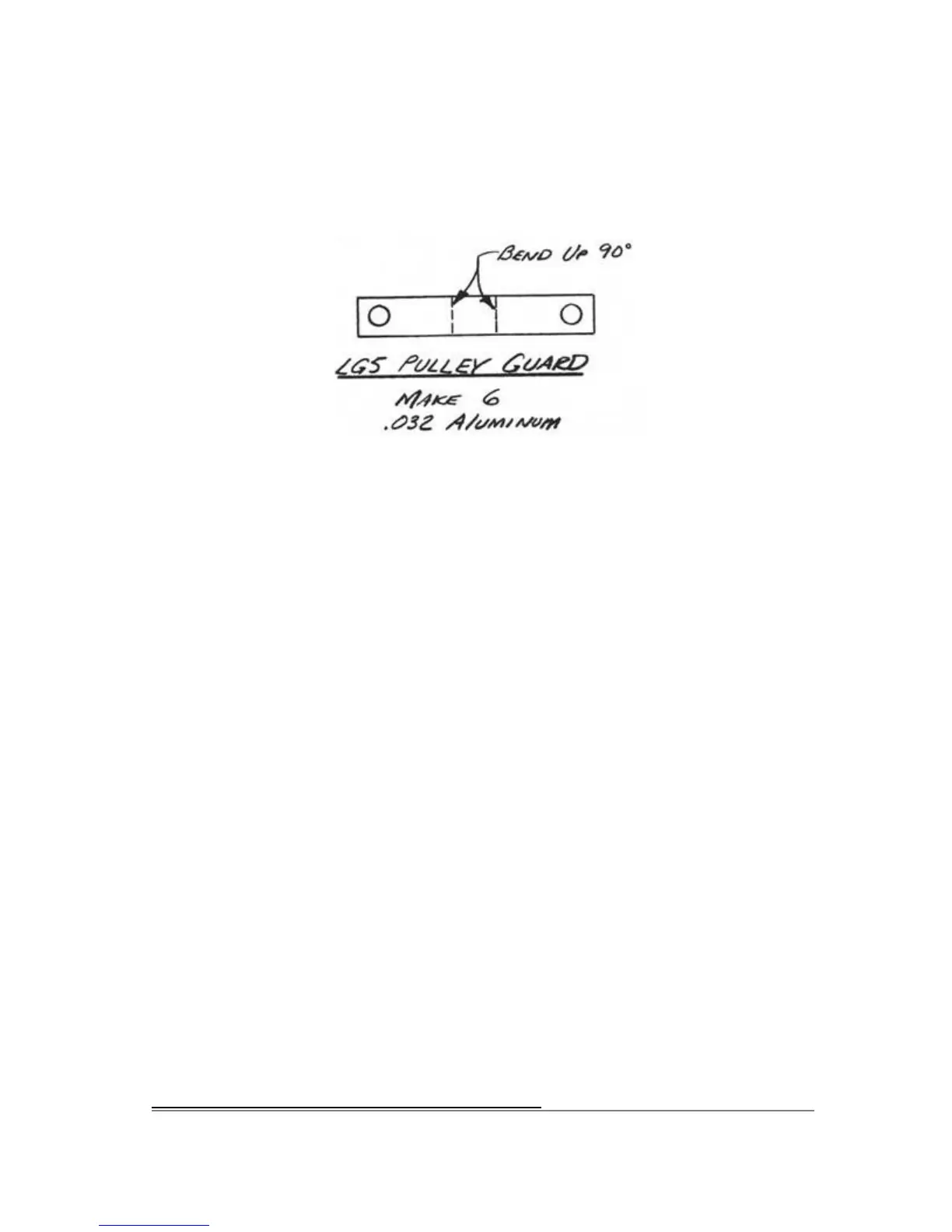

slipping off the pulley and fouling the system. A sample sketch of a
pulley guard is included for your reference; they should fit as closely
as possible to the outside diameter of the pulley.
PAGE 11-4
