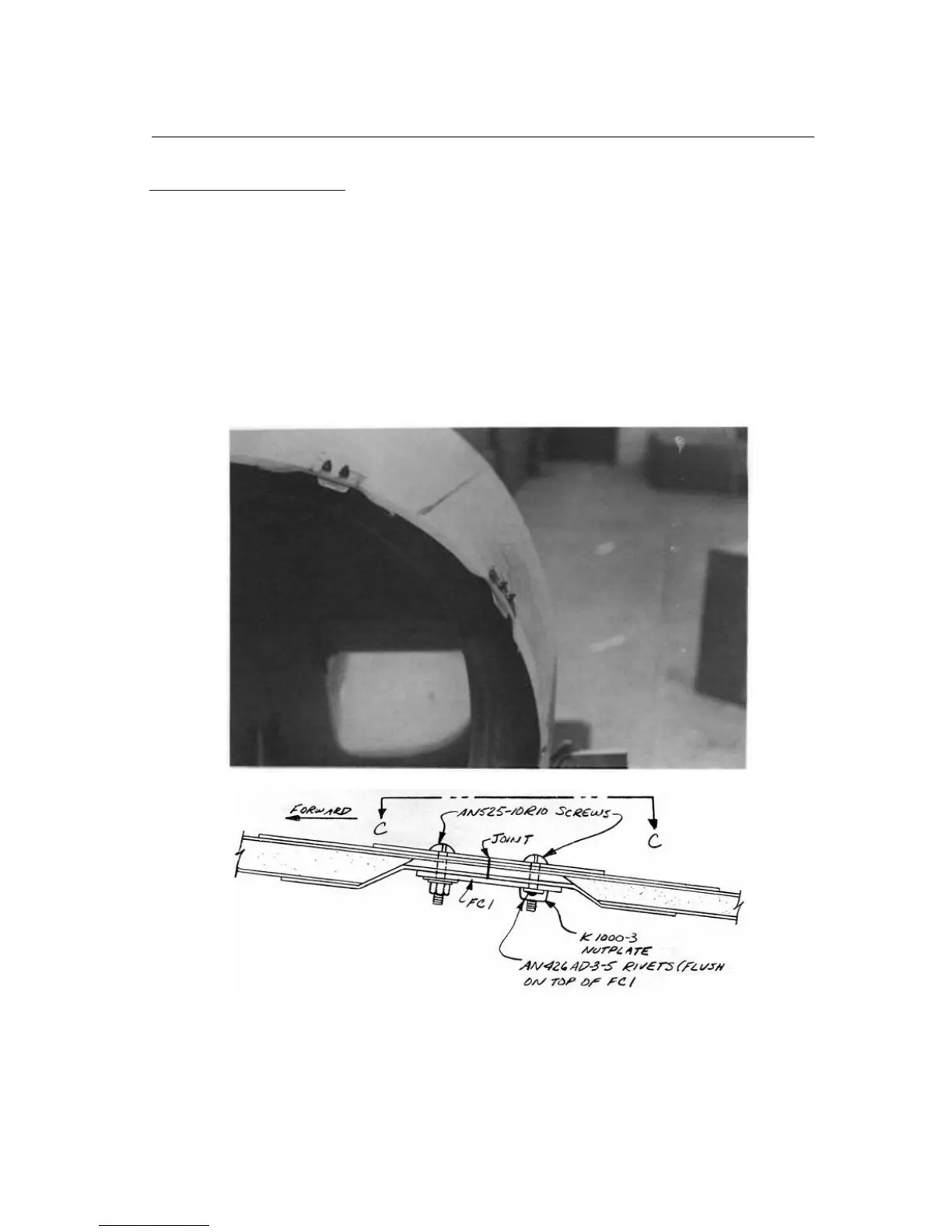

FASTENER INSTALLATION

..... Make 10 of FC1 and 2 of FC2 using the full size patterns provided.

Attach the 10 FC11s to the forward fuselage at the 10 locations using

AN525-10R10 screws. (2 per fastener).

.....Jig the rear fuselage shell into position flush against the forward

fuselage shell using a few dabs of Bondo. By shining a light inside the

fuselage at each fastener location in order to see each FC1, drill in

the #12 holes (10 locations) for the K1000-3 nutplates. Mount the

nutplates to the FC1 fasteners with AN426AD-3-5 rivets, countersinking

them flush from the side of FC1 next to the pads.

.....Install the AN525-10R10 screws (10 locations) to complete the

assembly. That is all there is to it.
