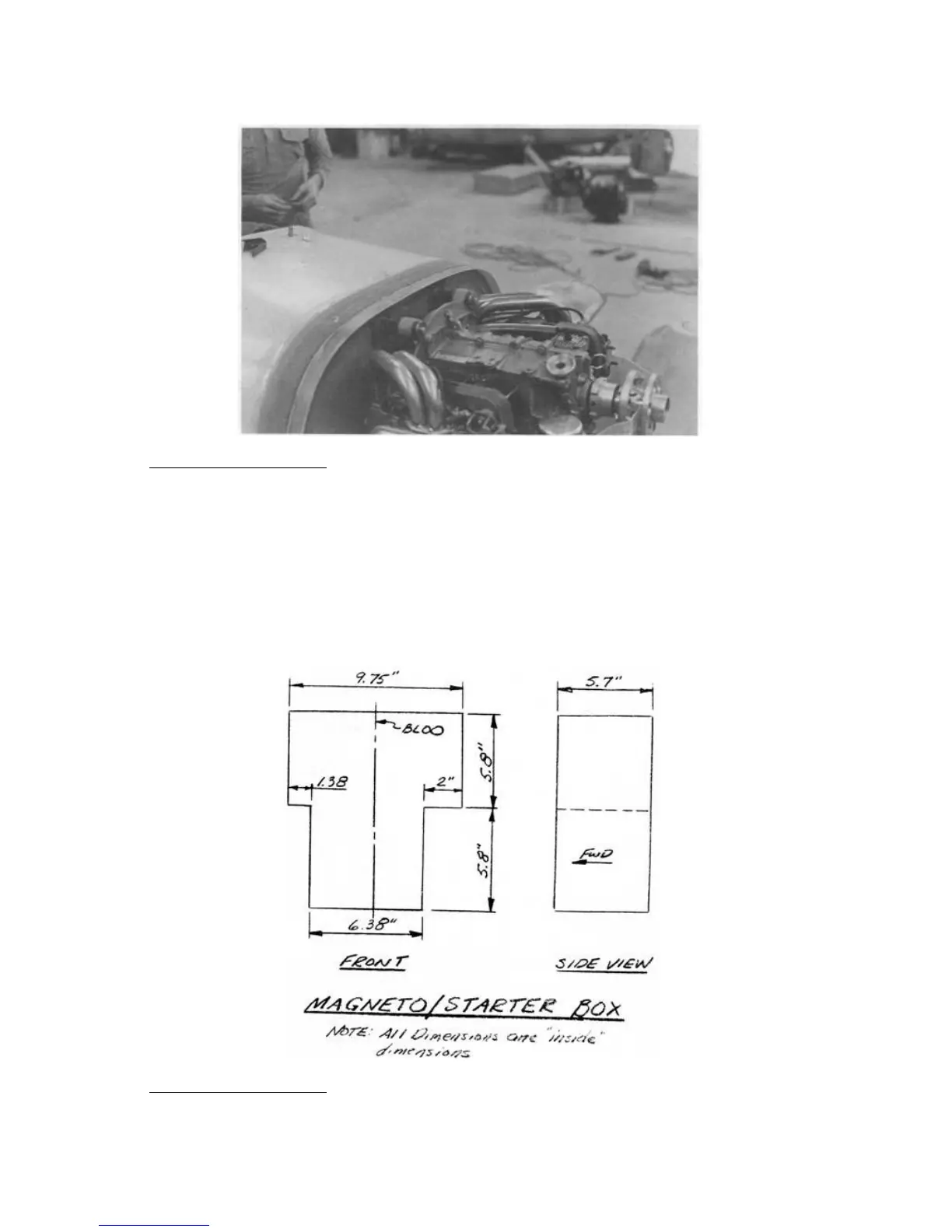

MAGNETO/STARTER BOX

..... On the Q2, the starter and magneto section of the engine

projects aft of the firewall into a plywood box. This box is 9 sided

and constructed from 1/8” thick plywood. It has the inside dimensions

shown. These dimensions are rather critical, so follow them closely.

Use a few dabs of 5-MIN to hold the 'jigsaw pieces' together and

laminate 1 BID on both the inside and outside of the box.

.....Enlarge the previous cutout in the firewall until the box will

just fit through it. Attach the box permanently using 2 BID tapes on

both sides of the firewall. Verify that the magneto/starter

accessories will fit within the envelope of the box.

FIREWALL PROTECTION
