Q2 Plans - Chapter 19 - Page 19-01

ELECTRICAL SYSTEM

INTRODUCTION

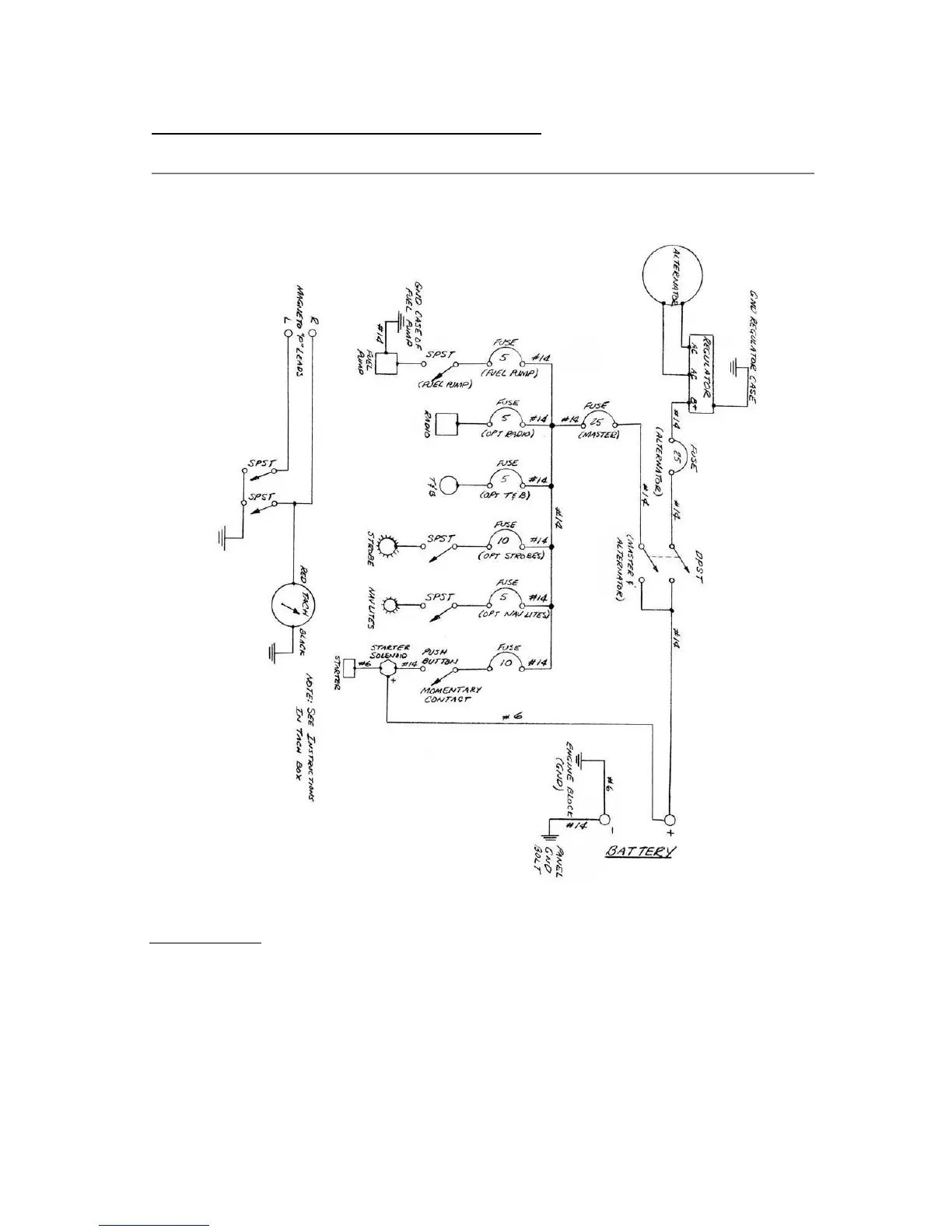

..... The schematic accompanying this chapter details the necessary

wiring for the standard Q2 kit. Additional information is provided for

wiring the more popular optional equipment items. A separate schematic

details hooking up the magneto switches and tachometer.

.....The panel ground bolt is simply a AN3-7A bolt located on the

instrument panel that is used to connect all items that must be

grounded.

.....

The fuses, fuse holders, wire (#14 and #6), connectors, and switches for
