COMPLETING YOUR Q2
STREAMLINING YOUR Q2
..... A significant improvement in your Q2's aerodynamic cleanliness
can be achieved by fabricating fillets and fairings for the major
component intersections. A bit of artistic ability is necessary to
develop a pleasing and efficient shape, but at this stage of the
construction, you will be up to it.
AILERON FILLETS

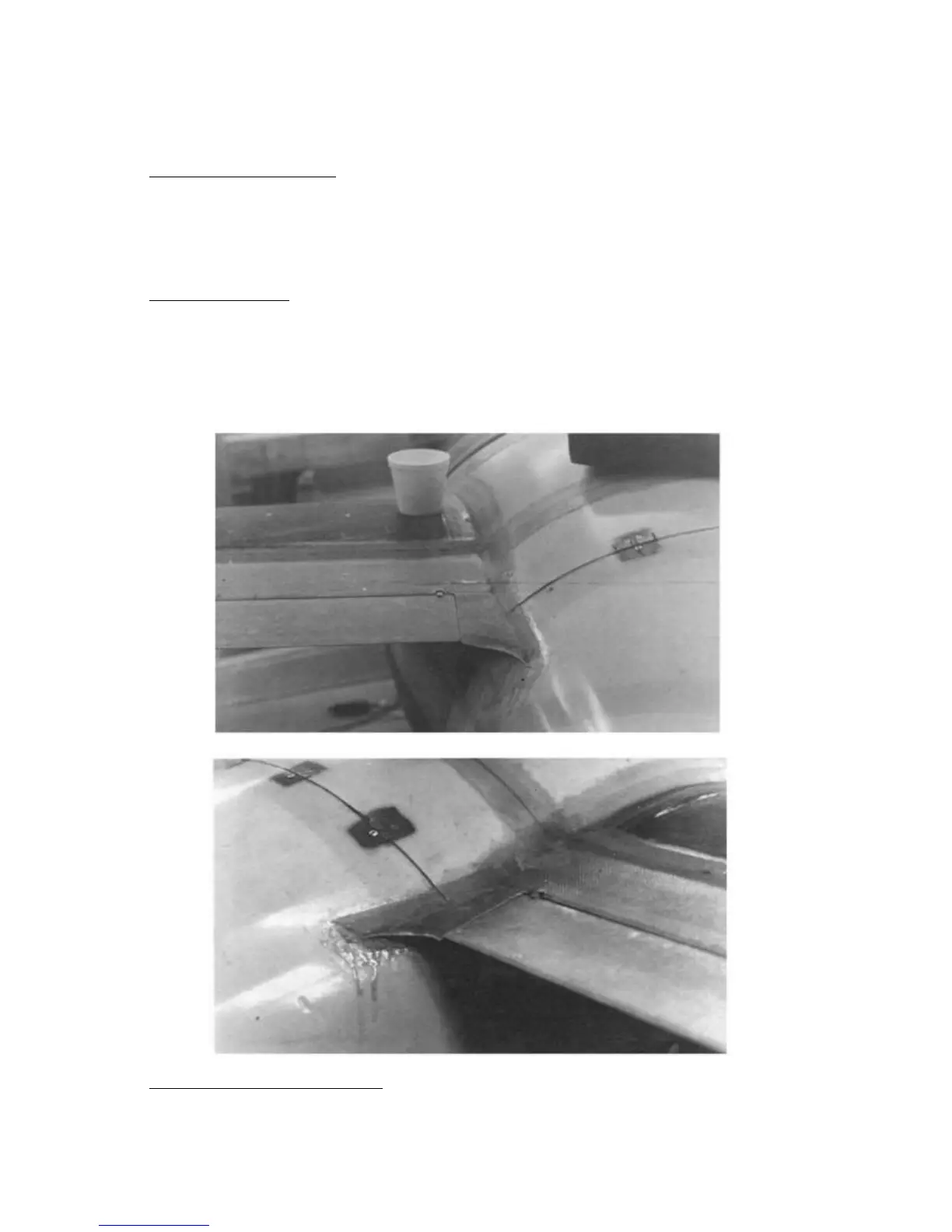

..... The aileron/fuselage junction should be filleted using scrap
foam and 1 BID. Each fillet will need to be 2 piece, as shown, if
your aft fuselage is removable. Careful work should allow most of the
gap to be filled on the top surface, while leaving a gap on the
bottom side to allow removal of the aileron.
ELEVATOR OUTBOARD FILLETS
