Q2 Plans - Chapter 20 - Page 20-03

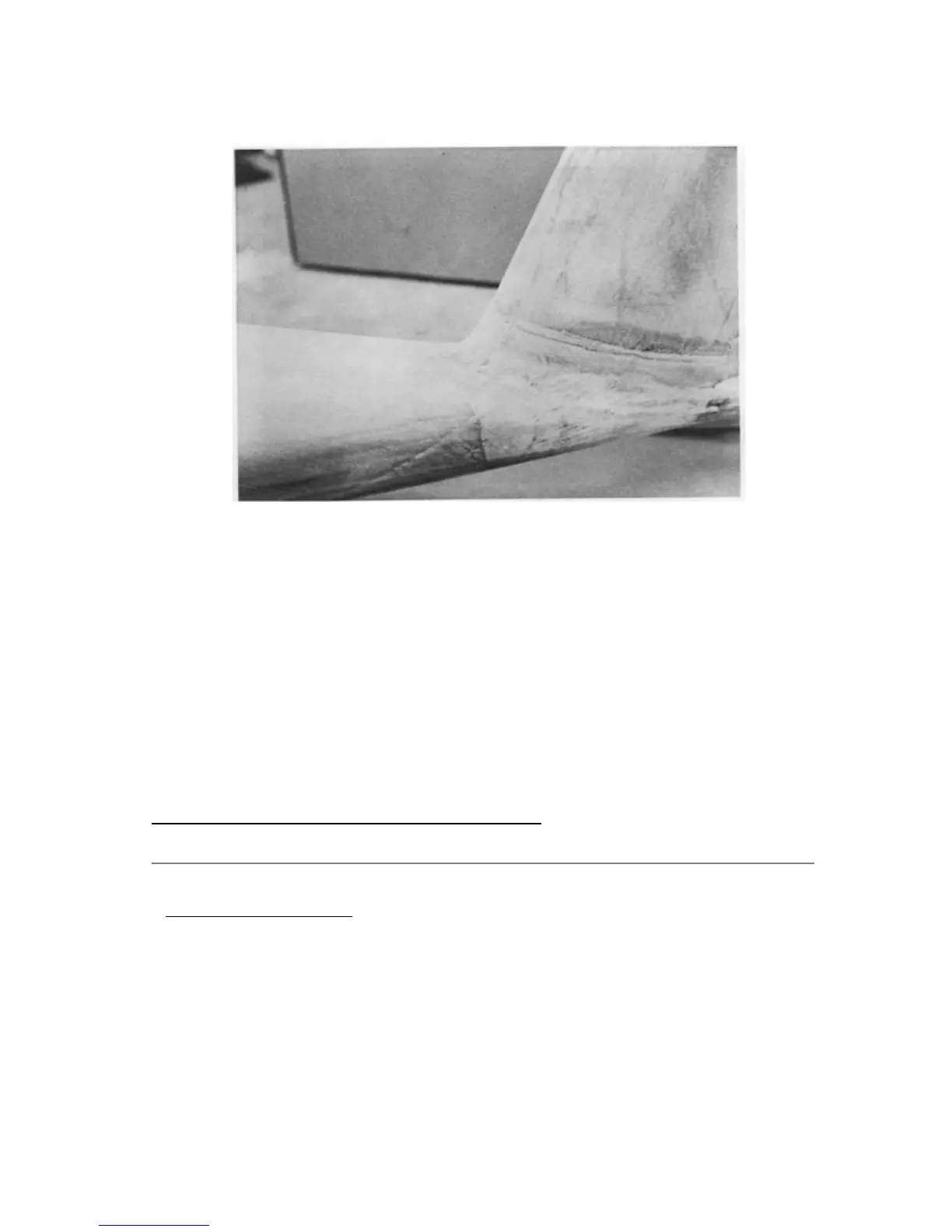

CARBURETOR AIR INLET
..... Cut a round hole in the lower cowling for the carburetor air
inlet. Fabricate a round tube by laminating 4 BID around a bottle
such that the tube will slip over the end of the alternate air
source. (Don't forget to use Vaseline on the bottle so the lamination
can be removed). Bond the tube to the lower cowling carburetor air
inlet hole. The result will be a direct ram air flow into the
carburetor.
