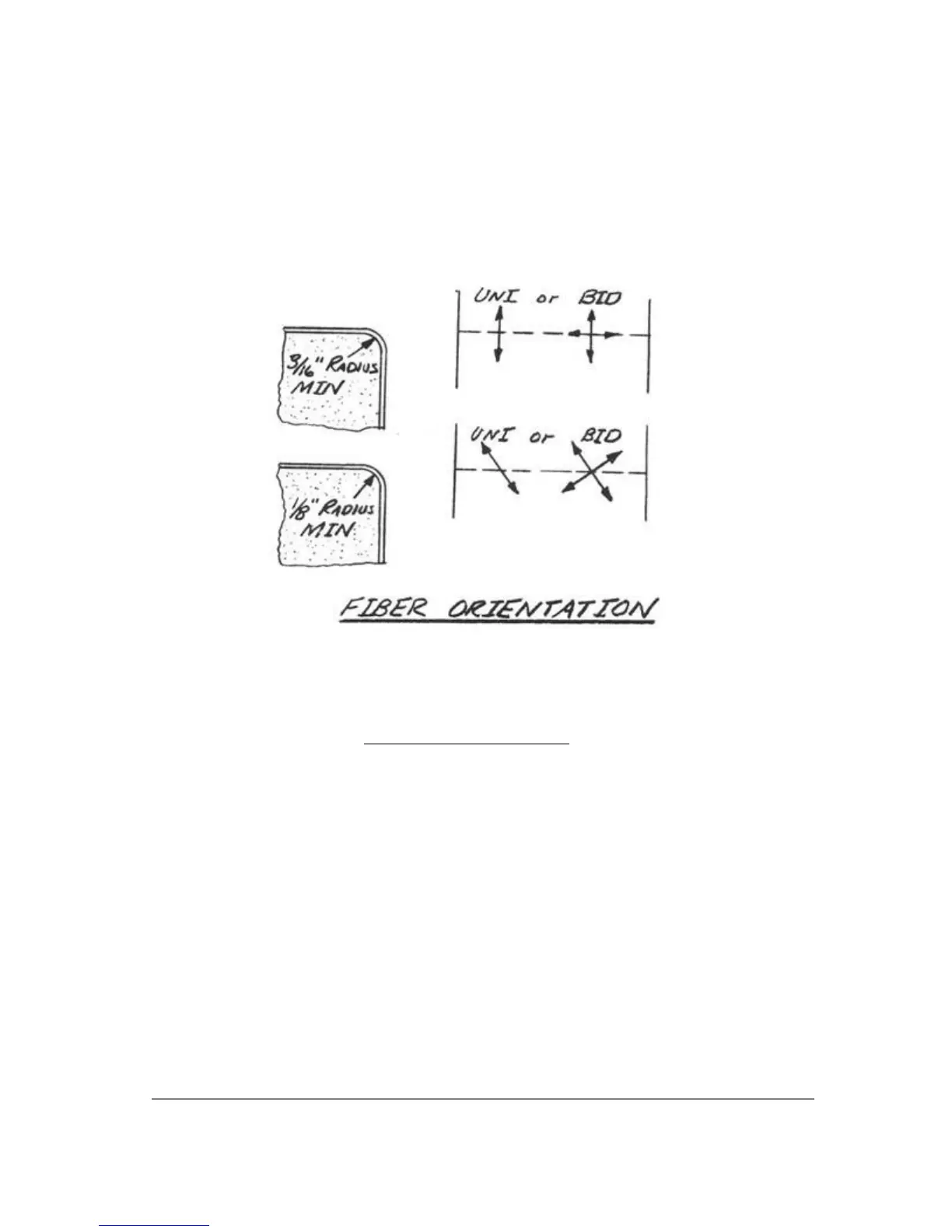

..... Outside corners require a radiused edge. Where the glass fibers
run directly around the corner a minimum radius of 3/16 inch is
required. Where the fibers run at an angle to the radius, only a 1/8
inch radius is needed.
CONTINUED ON NEXT PAGE
PAGE 3-12
