Quicksilver 755SD — Electrical Systems
42

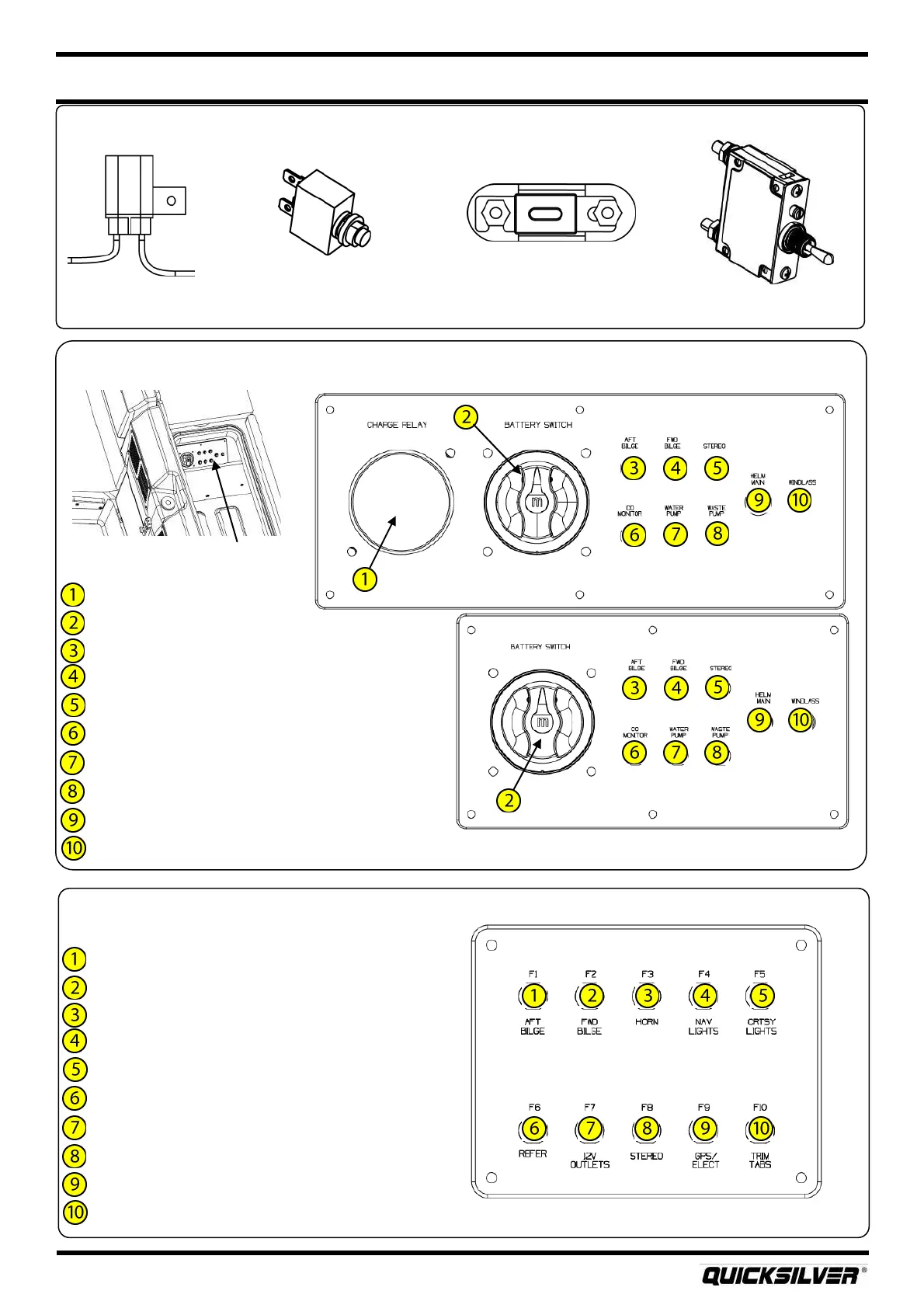

Baery Panels
DC Helm Panel
Charge Relay
Baery Switch
A Bilge Breaker—3 Amp
Forward Bilge Breaker—3 Amp
Stereo Breaker—10 Amp
CO Monitor Breaker—5 Amp
Water Pump Breaker—10 Amp
Waste Pump Breaker—20 Amp
Main Helm Breaker—60 Amp
Windlass Breaker—80 Amp
Panel Locaon
A bilge breaker — 3 Amp
Forward bilge breaker — 3 Amp
Horn breaker — 5 Amp
Navigaon lights breaker — 5 Amp
Courtesy lights breaker — 3 Amp
Refer Breaker—10 Amp
12V outlets breaker — 10 Amp
Stereo breaker — 10 Amp
GPS / Electronics breaker — 5 Amp
Trim tab breaker — 10 Amp
Fuses and breakers
ATO/ATC fuse Thermal breaker ANL fuse Magnec breaker
