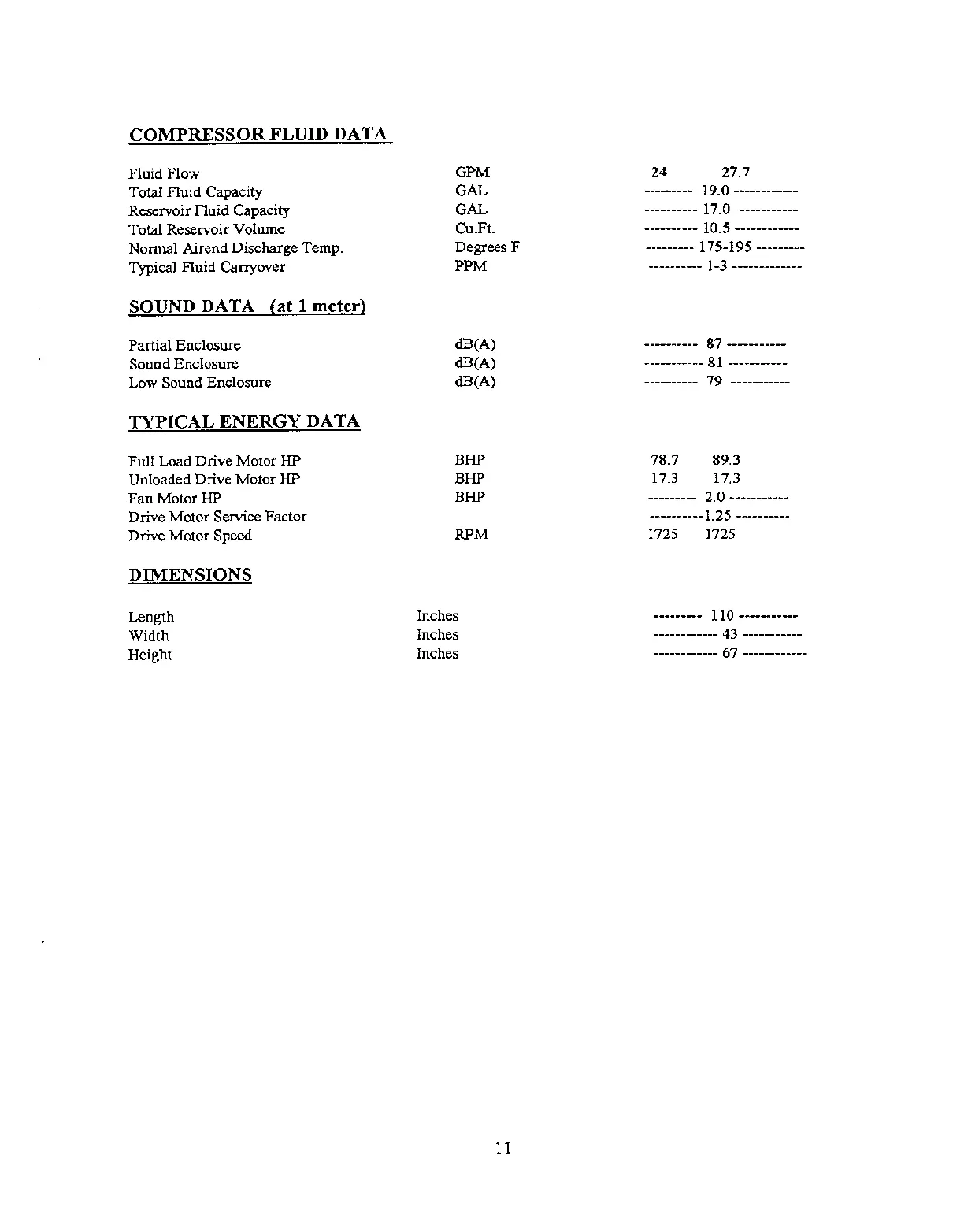

COMPRESSOR FLUID DATA
Fluid Flow
GPM
Total Fluid Capacity
GAL
Reservoir Fluid Capacity
GAL
Total Reservoir Volume
Cu.Ft.
Normal Airend Discharge Temp.
Degrees F
Typical Fluid Carryover
PPM
SOUND DATA (at 1 meter]
Partial Enclosure
Sound Enclosure
Low Sound Enclosure
TYPICAL ENERGY DATA
Full Load Drive Motor HP
Unloaded Drive Motor HP
Fan Motor HP
Drive Motor Service Factor
Drive Motor Speed
DIMENSIONS
Length
Width
Height
dB(A)
dB(A)
dB(A)
BHP
BHP
BHP
RPM
Inches
Inches
Inches
11
24 27.7
--------- 19.0 ------------
---------- 17.0 -----------
---------- 10.5 ------------
--------- 175-195 ---------
---------- 1-3 -------------
---------- 87-----------
----------- 81 -----------
---------- 79 -----------
78.7
89.3
17.3 17.3
--------- 2.0-----------
----------1 .25 ----------
1725 1725
--------- 110-----------
------------ 43 -----------
------------ 67------------
. ... . “.—————
—————.—— —-—.-..-..,-. --- . -. . . -------- --— .. --= ,.
. . . . . . . . . - —~. ,
. . . . . . . . . . . -. . . . . . . . . . . .. —- —-.——
