Eurgle 2.4Ghz 3 Ch LCD Wheel
Digital Programmable Radio Gear
rcps2805004
Join our FREE Membership and accept 10%off Offer! R2hobbies.com

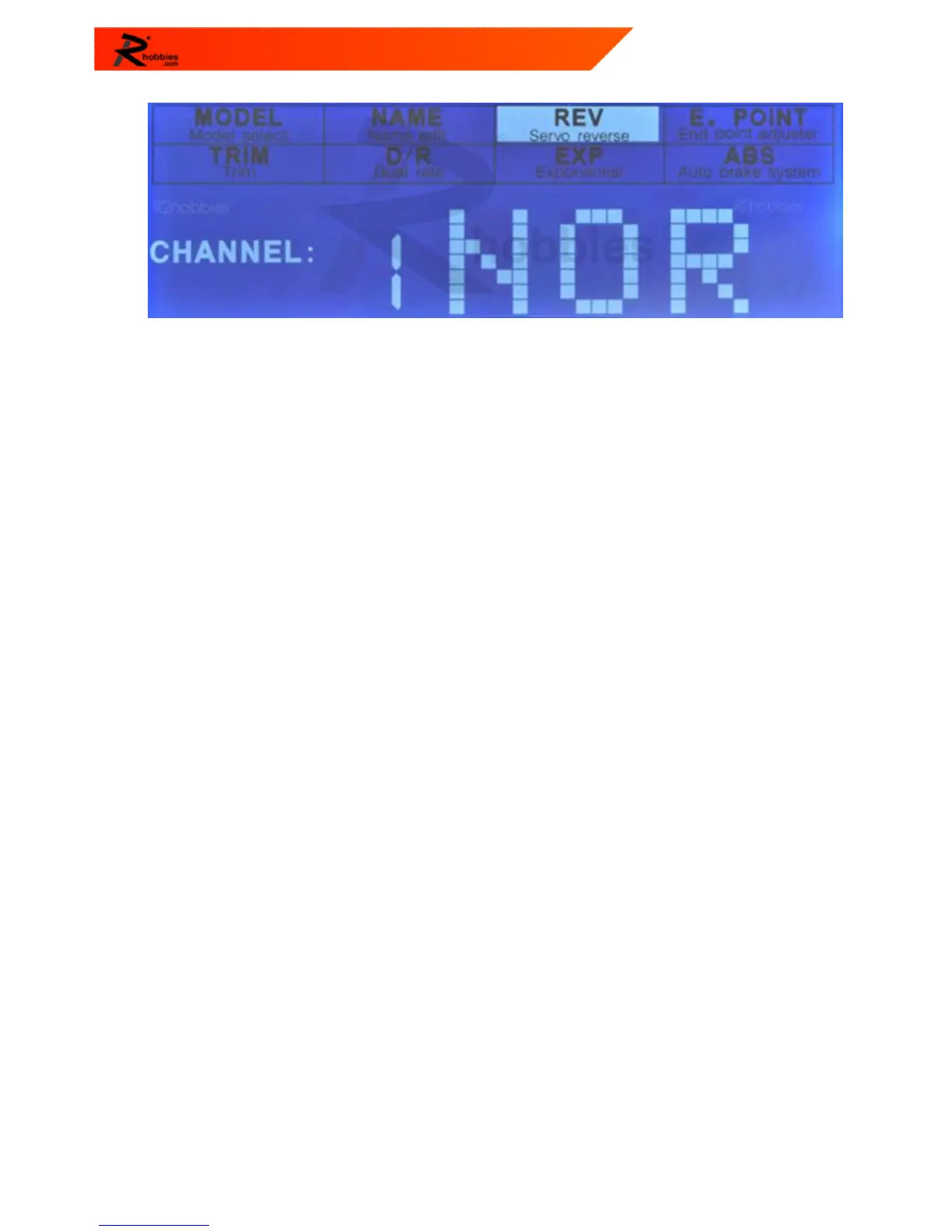

 REV
1. Function explanation
- This function reverses the direction of the operations of servos: steering, throttle, and
channel 3.
2. Parameter specification
- Channel : 1 to 3
- REV : Reverse
- NOR : Normal
3. Operation
- Press the “ENTER” button and turn to select the TRIM option. The selected function will be
blinking.
- Select the channel by turning the “ENTER” button, and then press the “END” button (now
the “REV” and “NOR” will be blinking).
- Turn the “ENTER” button to select “REV” or “NOR”. After this, press the “END” button to
finish the setting. The rest can be done in the same way.
- After finishing the setting of three channels, press the “ENTER” button to return to menu
screen.
- Press “BACK” to return to the opening screen.
