调整
松紧带左右偏差调整
ADJUSTMENTS

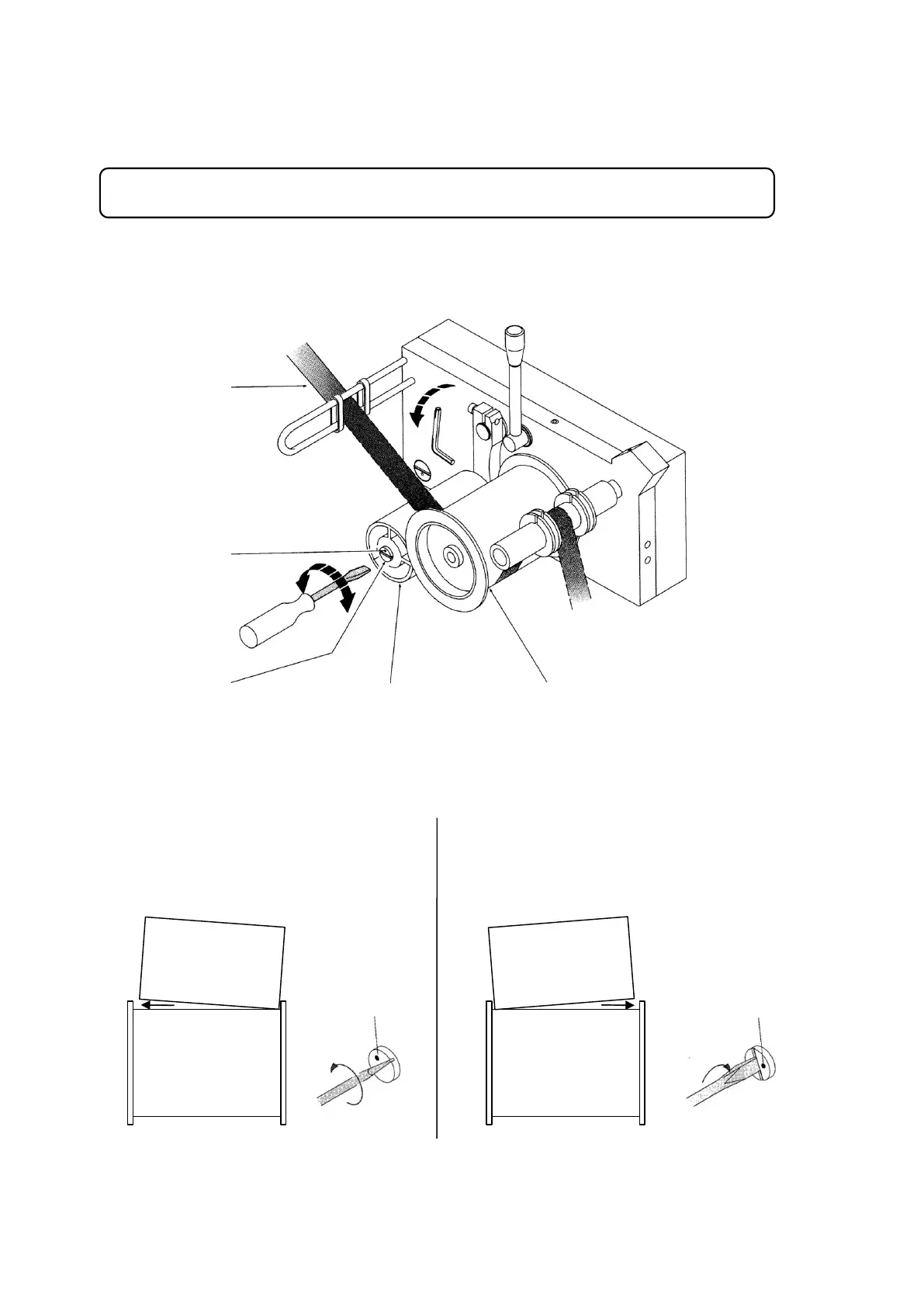

Adjustment for tape sliding sliding over the roller
副轮偏心轴可调整松紧带左右的偏差。
Adjust Eccentric Shaft of the Auxiliary Roller can let the tape to go the Right or Left side.
松紧带
Tape
记号
Mark
副轮偏心轴
Auxiliary
Roller
Shaft
副轮
Auxiliary
Roller
驱动轮
Driven
Roller
副轮
Auxiliary
Roller
驱动轮
Driven Roller
副轮
Auxiliary
Roller
驱动轮
Driven Roller
记号往左边
Mark
turn
to
the
Left
记号往右边
Mark
turn
to
the
Right
调整松紧带往左边
Adjust
to
the
Left
side
调整松紧带往右边
Adjust
to
the
Right
side
